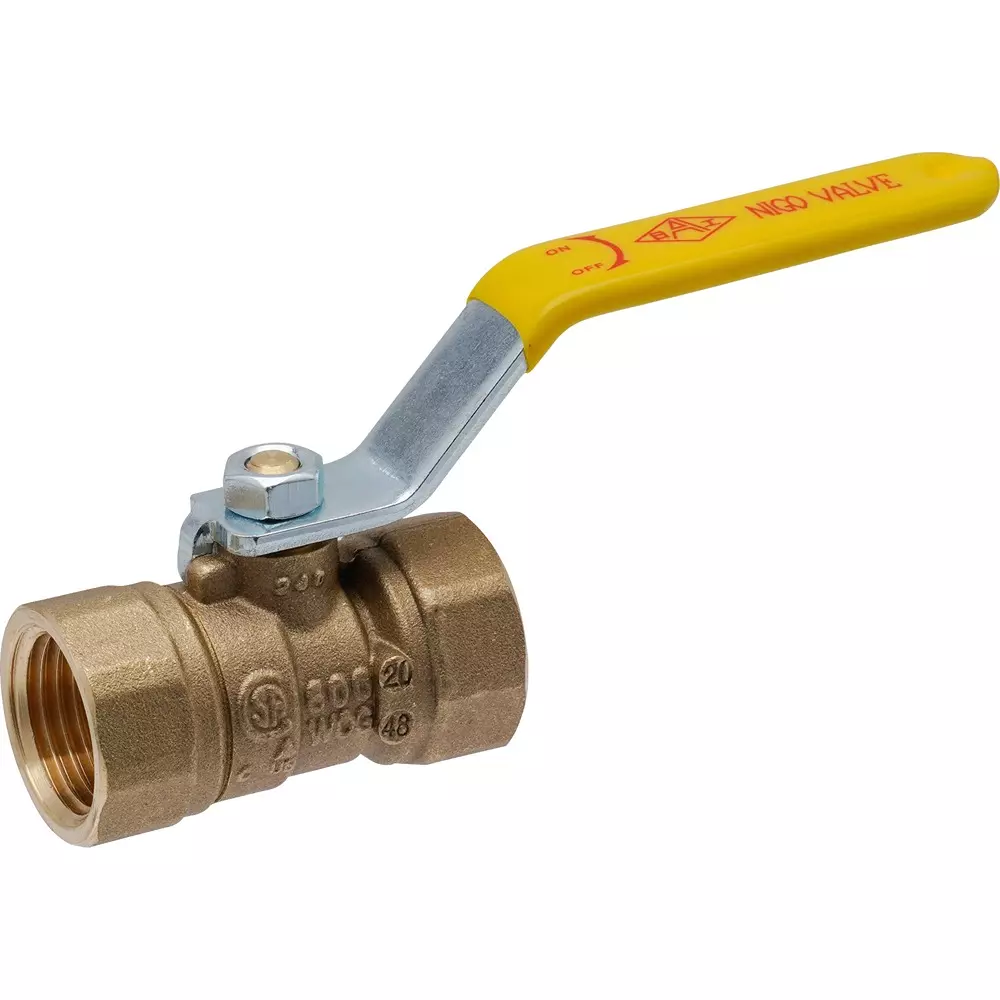

| Type of Product | Ball Valve (Standard Bore) |
| Connection Type | Screw-in type |
| Country of Origin | TAIWAN |
| Material | Brass |
Type of Product |
Ball Valve (Standard Bore) |
Connection Type |
Screw-in type |
Country of Origin |
TAIWAN |
Material |
Brass |
Monotaro ID |
35090097 |
Material (O-ring) |
NBR |

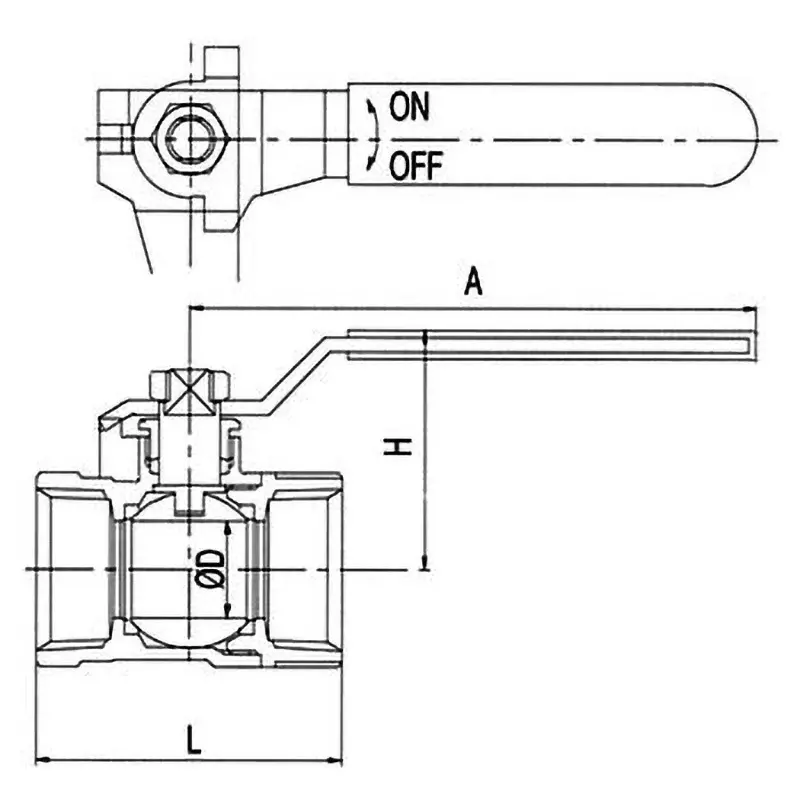

Dimension L (mm) |
49 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
4.12 (normal temperature water, oil, gas) |
Bore Diameter D (Φmm) |
10 |
Material (Stem) |
Brass |
Nominal Diameter (B) |
1/2 |
Connection Direction |
Straight |
Class |
600 |
Dimensions H (mm) |
35 |
Valve Type |
Ball valve |
Bore Type |
Standard bore |
Ball Material |
Brass |
Nominal Diameter (A) |
15 |
Dimensions A (mm) |
85 |
