| Model No | 37257 |

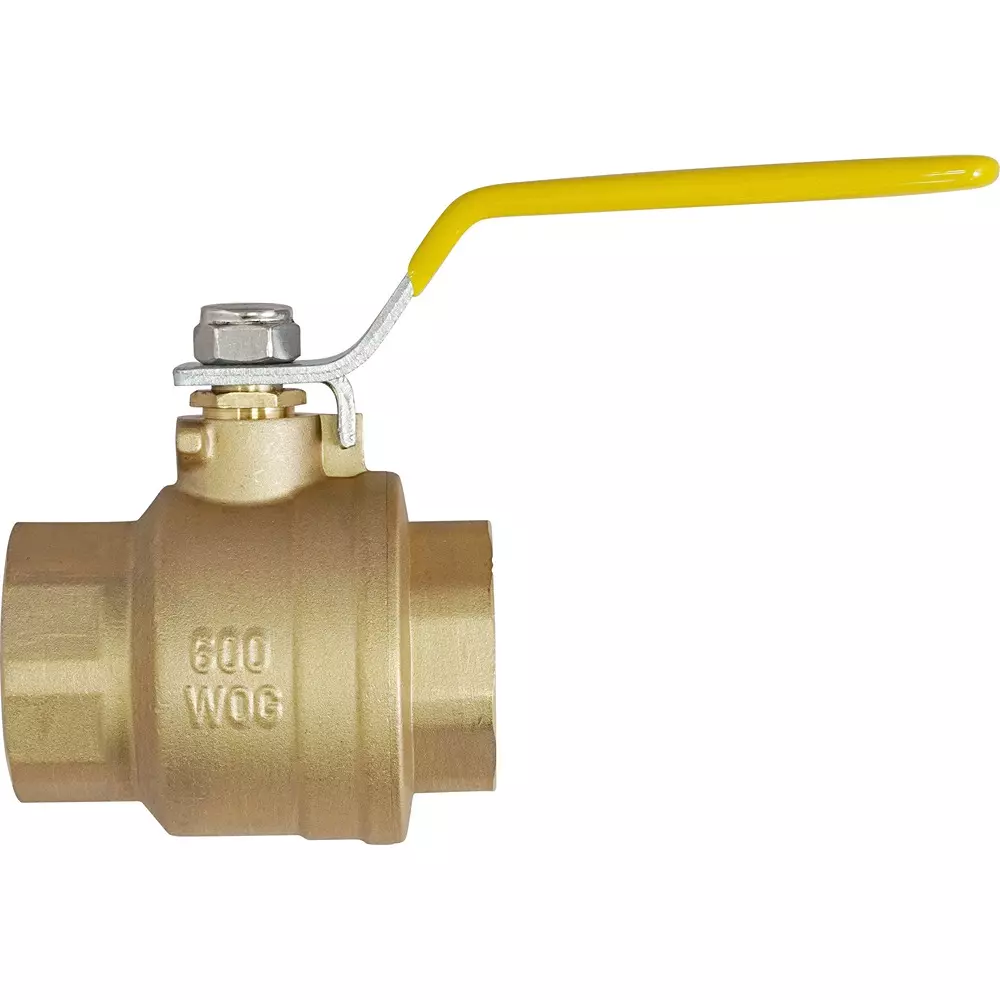

| Type of Product | Ball Valve Full Bore Brass Type 600 |
| Connection Type | Screw-in type |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
37257 |
Type of Product |
Ball Valve Full Bore Brass Type 600 |
Connection Type |
Screw-in type |
Country of Origin |
Japan |
Material |
Brass |
Suitable Fluid |
Water, oil, gas |
Monotaro ID |
14474857 |
Dimension L (mm) |
94 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
4.1 (water / oil / gas at normal temperature), 1.0 (water / oil / gas below 150 ° C) * Gas excludes flammability and toxicity |
Bore Diameter D (Φmm) |
40 |
Material (Stem) |
Brass |
Material (Gasket) |
PTFE |
Nominal Diameter (B) |
1-1/2 |
Connection Direction |
Straight |
Class |
600 |
Dimensions H (mm) |
92.5 |
Valve Type |
Ball valve |
Bore Type |
Full bore |
Ball Material |
Brass |
Nominal Diameter (A) |
40 |
Dimensions A (mm) |
143 |
