| Model No | 10A |
| Type of Product | Ball Valve Reduced Bore Stainless Steel (SUS304) 600 Type |
| Connection Type | Screw-in type |
| Country of Origin | CHINA |
Model No |
10A |
Type of Product |
Ball Valve Reduced Bore Stainless Steel (SUS304) 600 Type |
Connection Type |
Screw-in type |
Country of Origin |
CHINA |
Material |
SUS304(SCS13A) |
Suitable Fluid |
Water, oil, air |
Monotaro ID |
24873706 |

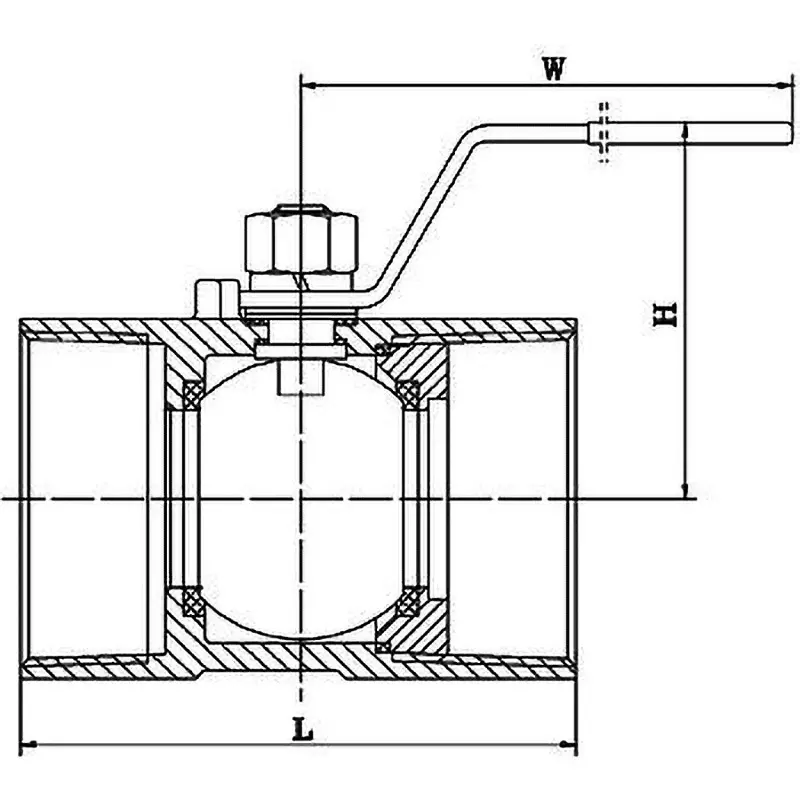

Dimension L (mm) |
43 |
Thread Type |
PT |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
4.12 |
Nominal Diameter (B) |
3/8 |
Connection Direction |
Straight |
Class |
600 |
Dimensions H (mm) |
36 |
Valve Type |
Ball valve |
Nominal Diameter (A) |
10 |
Dimension W |
70 mm |
Handle Type |
Lever type |
