| Model No | 40 |
| Type of Product | Ball Valve Socket Type PVC |
| Connection Type | Socket type |
| Country of Origin | CHINA |
Model No |
40 |
Type of Product |
Ball Valve Socket Type PVC |
Connection Type |
Socket type |
Country of Origin |
CHINA |
Seal Material |
EPDM |
Material |
PVC |
Monotaro ID |
29821059 |

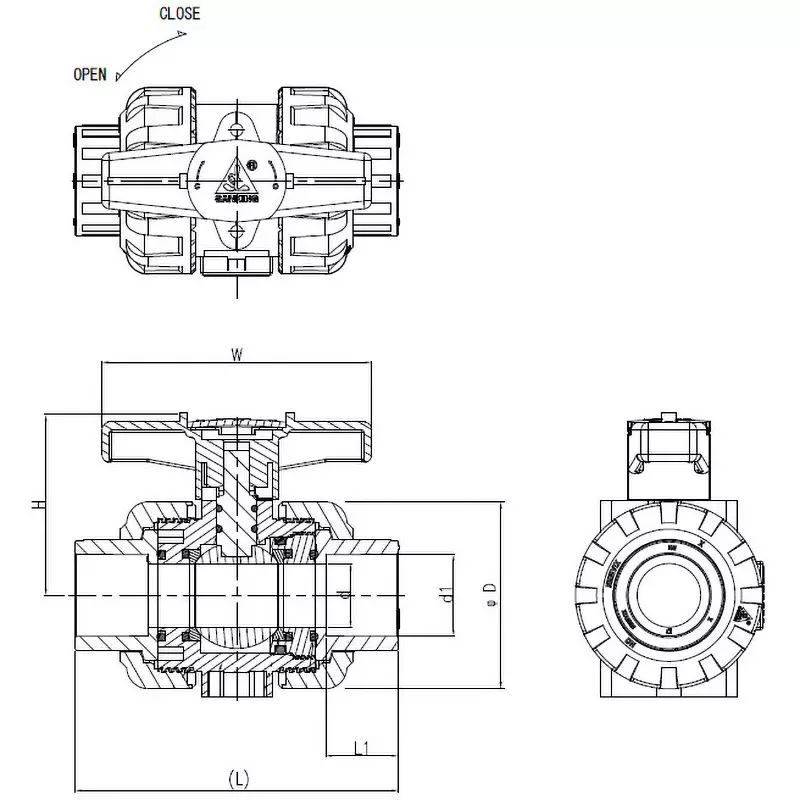

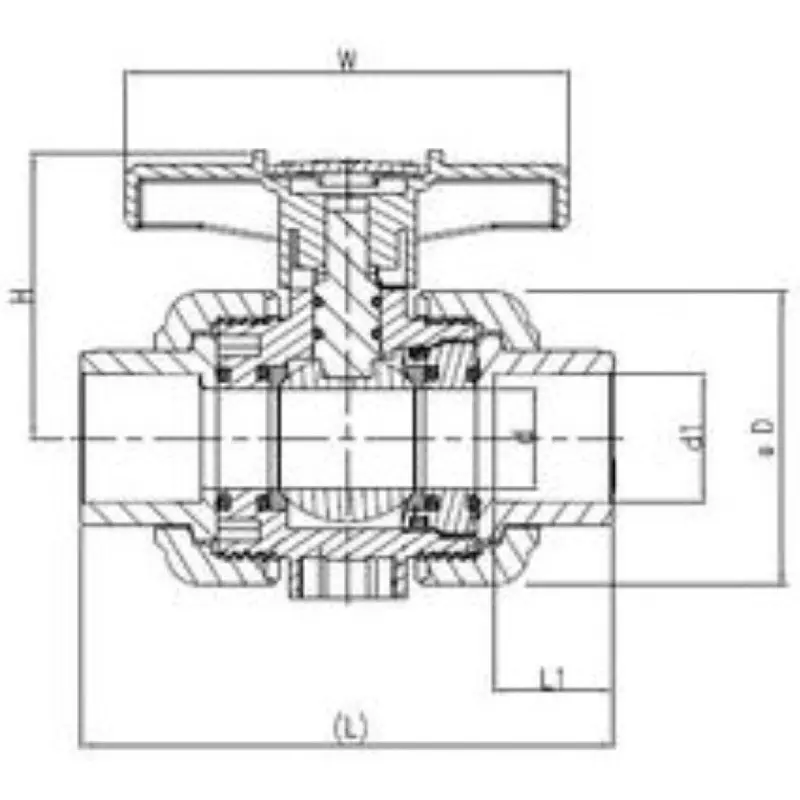

Dimension L (mm) |
160 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
0.98 or less |
Nominal Diameter (B) |
1-1/2 |
Connection Direction |
Straight |
Dimensions H (mm) |
90 |
Nominal Diameter (A) |
40 |
Dimension D1 (mm) |
48.2 |
Dimension W |
128 mm |
Dimensions D (mm) |
40 |
Dimension L1 |
34.5 mm |
