| Model No | 1xBAL-3S-2A |
| Type of Product | Active Balancer Board |
| Country of Origin | India |
| Name of Manufacturer/Packer/Importer | AMICIKART ONLINE SERVICES PRIVATE LIMITED |
Model No |
1xBAL-3S-2A |
Type of Product |
Active Balancer Board |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
AMICIKART ONLINE SERVICES PRIVATE LIMITED |
Voltage Range |
3.0–4.2 V |
Storage Humidity |
10%–70% RH |
Power Consumption |
15 µA during balancing startup |
Balancing Current |
Up to 2 A per cell (proportional to voltage difference) |

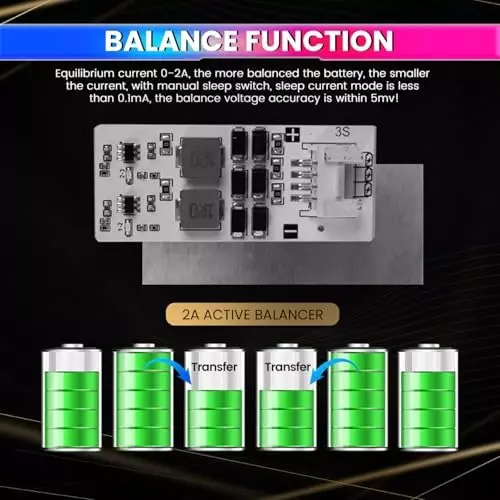

Balancing |
Inductive active balancing (energy transfer between cells) |
Voltage Difference Trigger |
≥20 mV ±5 mV |

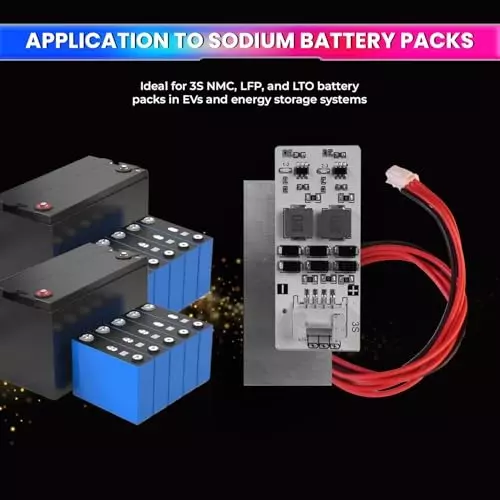

Supported Battery Type |
LiFePO4, Lithium-ion, Lipo, LTO |
Low Voltage Protection |
Single cell <2.8V ±15mV |
Storage Temperature |
-15 °C to 65 °C |
