Ships within 25 days
View
View
View
View
| Model No | ADRSZPY |
| Type of Product | Expansion Board |
| Country of Origin | Japan |
| Monotaro ID | 62957729 |
Model No |
ADRSZPY |
Type of Product |
Expansion Board |
Country of Origin |
Japan |
Monotaro ID |
62957729 |
Power Supply |
Powered by Raspberry Pi Zero |
Name of Manufacturer/Packer/Importer |
Bit Trade One |
Included Components |
Screw set x1 Warranty card x1 |

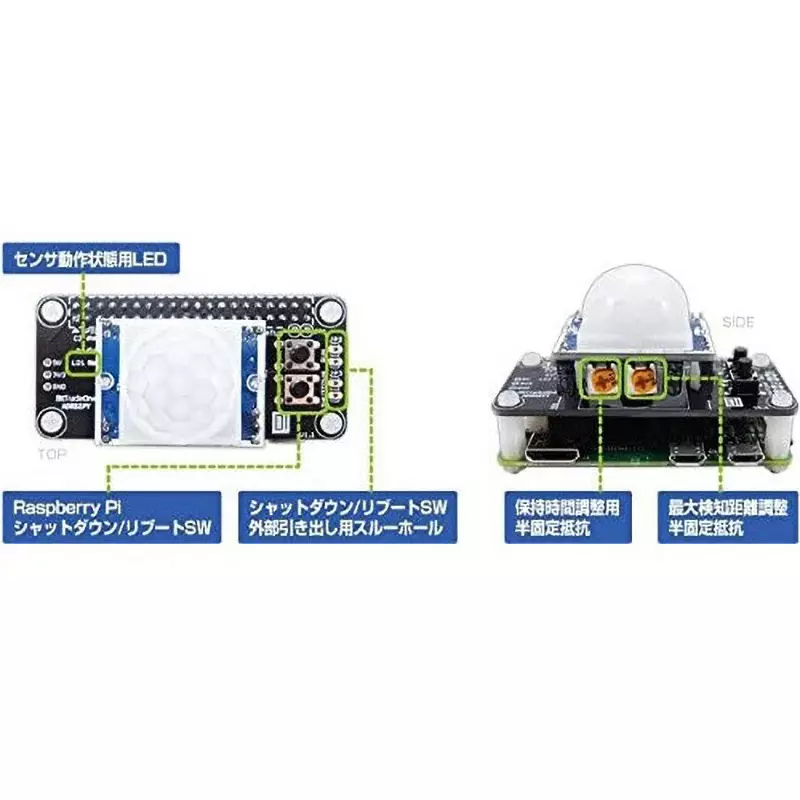

LED |
Status x1 / Sensor operating status x1 |
Import Country |
Direct Import from Japan |
Specifications |
Detection angle: 120 degrees Maximum detection distance: 7m (varies depending on environmental conditions such as temperature) / Adjusted with semi-fixed resistance Body weight: Approximately 19g |
Switch Type |
Reboot switch / shutdown switch ( |
Compatible Models |
Raspberry Pi Zero v1.3 / W / WH (V1.3, W requires GPIO pin header soldering), Raspberry Pi 2/3 (when screws cannot be fixed) There is, the restart switch cannot be used) |
Holding Time |
5 seconds to 300 seconds (adjusted with semi-fixed resistor) |
Lens |
23mm diameter dome shape |
Main Unit Dimensions |
W65xD30xH38 mm (excluding protrusions) |
