Ships within 25 days
View
View
View
View
| Model No | ADRSZIRS |
| Type of Product | Expansion Board |
| Country of Origin | Japan |
| Monotaro ID | 62957686 |
Model No |
ADRSZIRS |
Type of Product |
Expansion Board |
Country of Origin |
Japan |
Monotaro ID |
62957686 |
Power Supply |
Powered by Raspberry Pi Zero |
Name of Manufacturer/Packer/Importer |
Bit Trade One |
Included Components |
Screw set x1 / 1x2 Pin header x1 / Warranty x1 |
LED |
LED red: 1 (blinks when the power is turned on) LED red: 1 (blinks when transmitting infrared rays) LED green: 1 (blinks when transmitting and receiving infrared rays) |
Import Country |
Direct Import from Japan |
Specifications |
Body weight: 13g |
Switch Type |
Reboot switch / shutdown switch (Please check the WEB page for operations such as shutdown) |
Compatible Models |
Raspberry Pi Zero v1.3 / W / WH (GPIO pin header soldering is required for v1.3 and W) Raspberry Pi 2/3 (If screws cannot be fixed) There is, the restart switch cannot be used) |
Main Unit Dimensions |
W65 x D30 x H17mm (excluding protrusions) |
Input / Output Configuration |

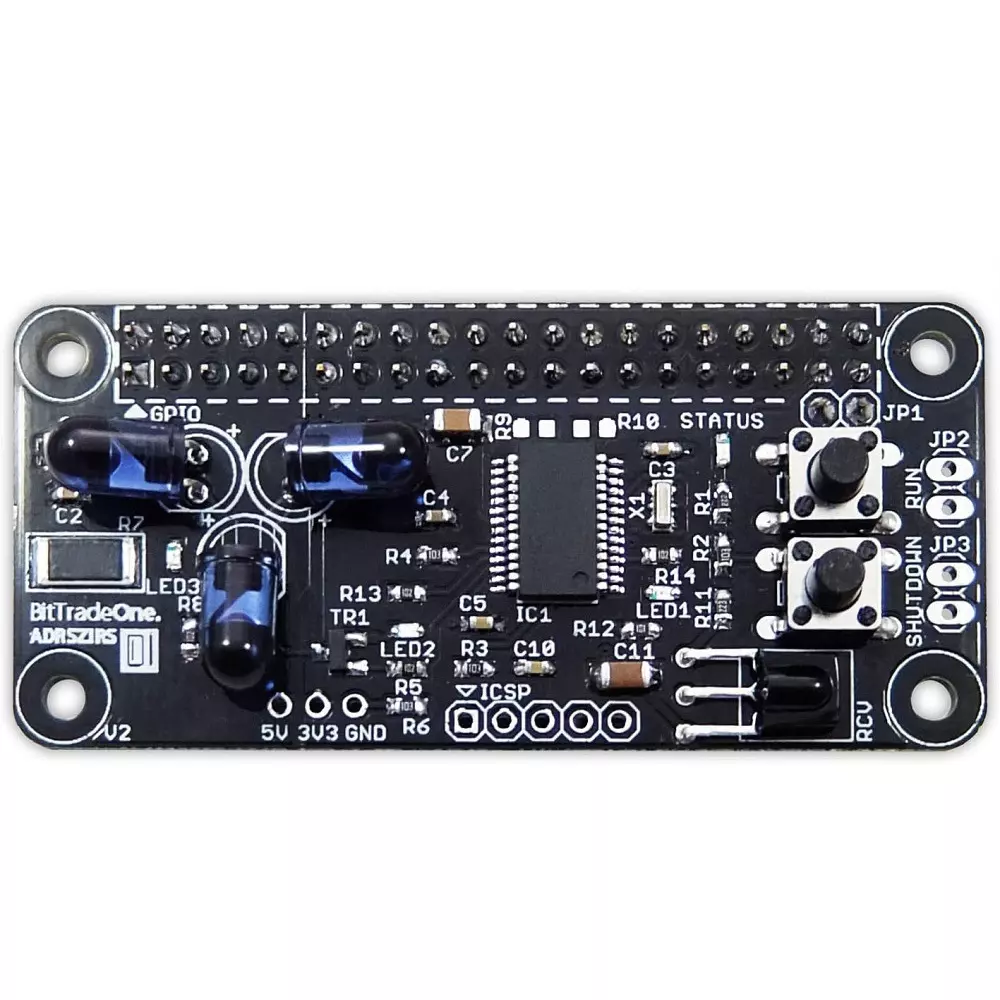

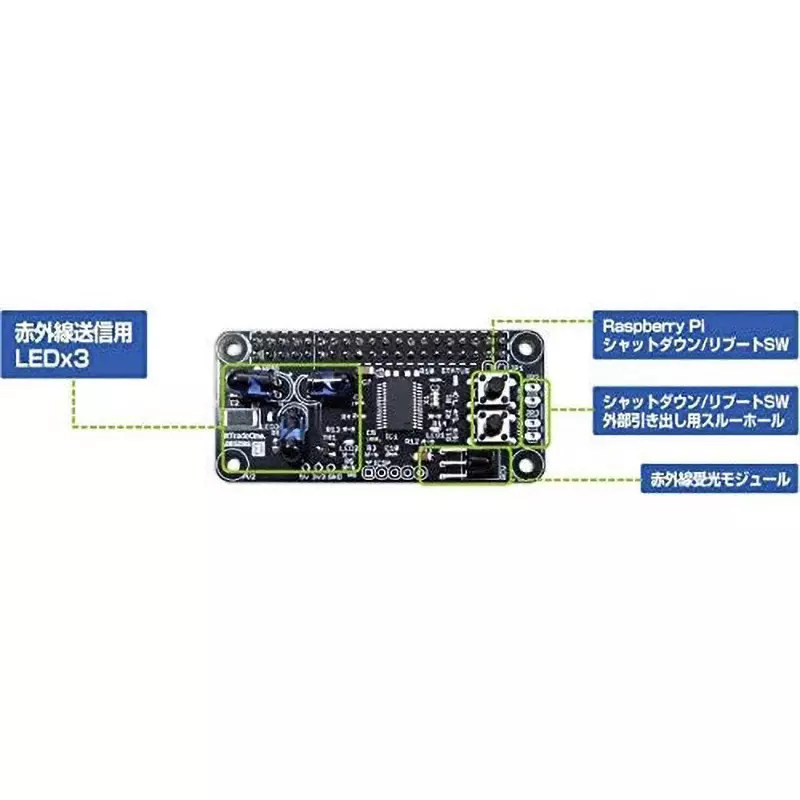

Infrared receiver module x1, infrared LED x3 for output |
