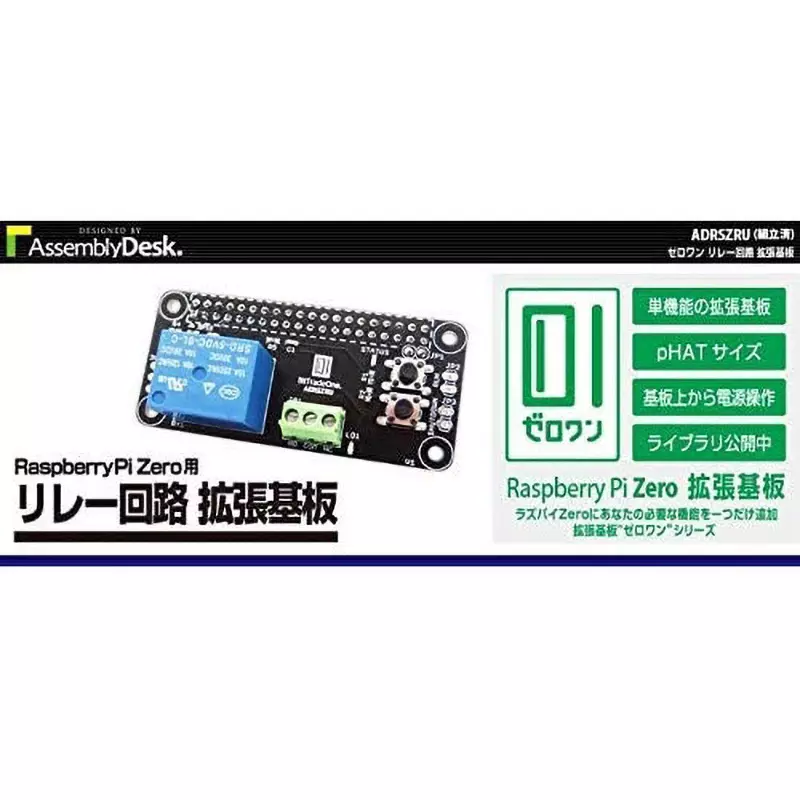

| Model No | ADRSZRU |
| Type of Product | Expansion Board |
| Country of Origin | Japan |
| Monotaro ID | 62957747 |
Model No |
ADRSZRU |
Type of Product |
Expansion Board |
Country of Origin |
Japan |
Monotaro ID |
62957747 |
Power Supply |
3.3V / 5V (powered by Raspberry Pi Zero) |
Name of Manufacturer/Packer/Importer |
Bit Trade One |
Included Components |
Screw set x1 / 1x2 Pin header x1 / Warranty x1 |

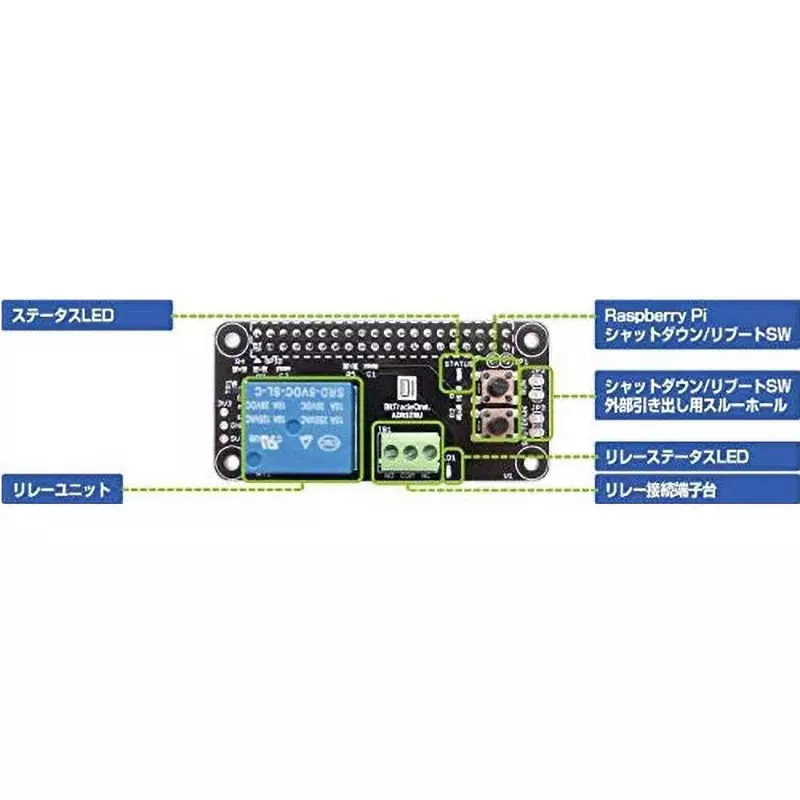

LED |
Relay status x1 (lights when relay is ON), status x1 |
Import Country |
Direct Import from Japan |
Specifications |
Rated voltage / current: AC 250V / 10A, DC30V / 10A Body weight: Approximately 20g |
Output |
Contact output (COM and NO are conductive when the terminal block and relay are ON) |
Input |
Level input (relay ON with GPIO4, H) |
Switch Type |
Reboot switch / shutdown switch (Please check the manufacturer's WEB page for operations such as shutdown) |
Compatible Models |
Raspberry Pi Zero v1.3 / W / WH (GPIO pin header soldering is required for v1.3 and W) Raspberry Pi 2/3 (If screws cannot be fixed) There is, the restart switch cannot be used) |
Main Unit Dimensions |
W65 x D30 x H26mm (excluding protrusions) |
Output Terminal |
COM/NO/NC (1C) |
