Ships within 25 days
View
View
View
View

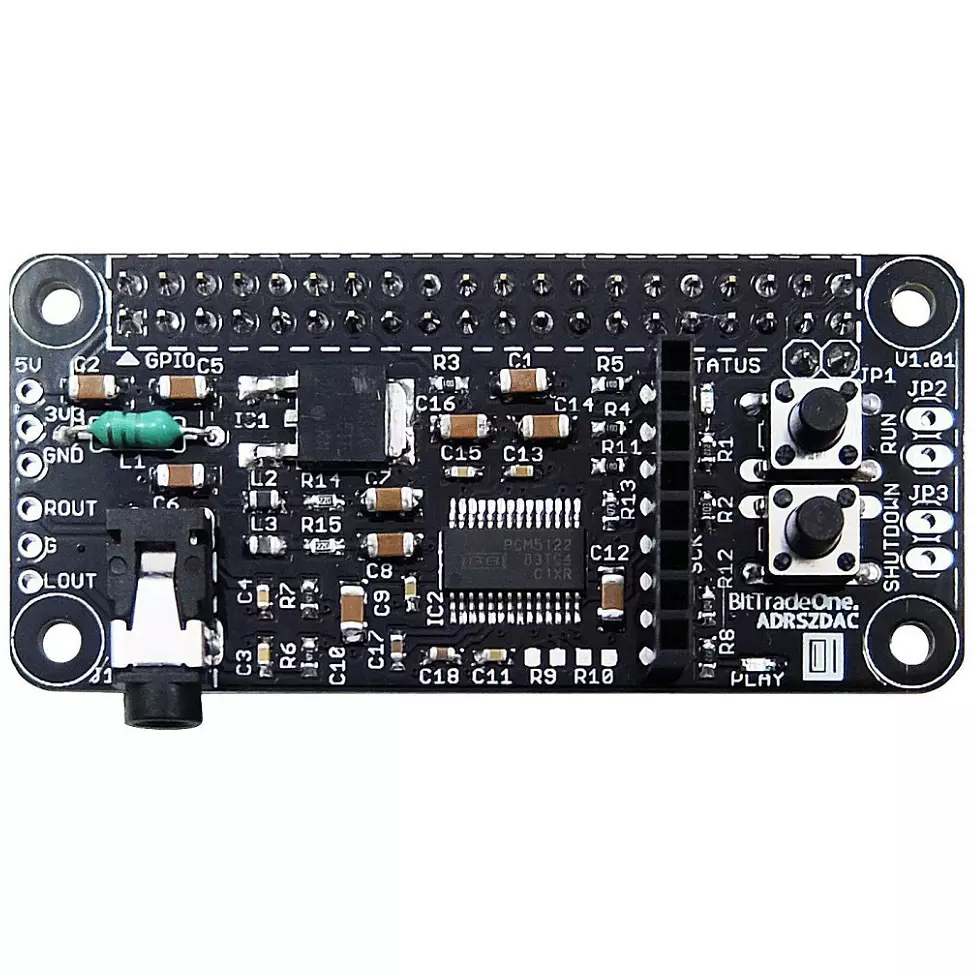

| Model No | ADRSZDAC |
| Type of Product | Expansion Board |
| Country of Origin | Japan |
| Monotaro ID | 62957625 |
Model No |
ADRSZDAC |
Type of Product |
Expansion Board |
Country of Origin |
Japan |
Monotaro ID |
62957625 |
Power Supply |
Powered by Raspberry Pi Zero |
Name of Manufacturer/Packer/Importer |
Bit Trade One |
Included Components |
Screw set x1 / 1x2 Pin header x1 / Warranty x1 |
LED |
Status x1, PLAY (lights up during playback) * It may not light up depending on the software used. |
Import Country |
Direct Import from Japan |
Specifications |
Analog output voltage: Standard 2.1Vrms Audio data bit length: 16/24 / 32bit * PCM5122 specifications Sampling frequency: Minimum 8kHz, Maximum 384kHz * PCM5122 specifications Load impedance: Minimum 1kΩ Body weight: 14g |
Switch Type |
Reboot switch / shutdown switch (Please check the WEB page for operations such as shutdown) |
Compatible Models |
Raspberry Pi Zero v1.3 / W / WH (GPIO pin header soldering is required for v1.3 and W) Raspberry Pi 2/3 (If screws cannot be fixed) There is, the restart switch cannot be used) |
Main Unit Dimensions |
W65 x D30 x H19mm (excluding protrusions) |

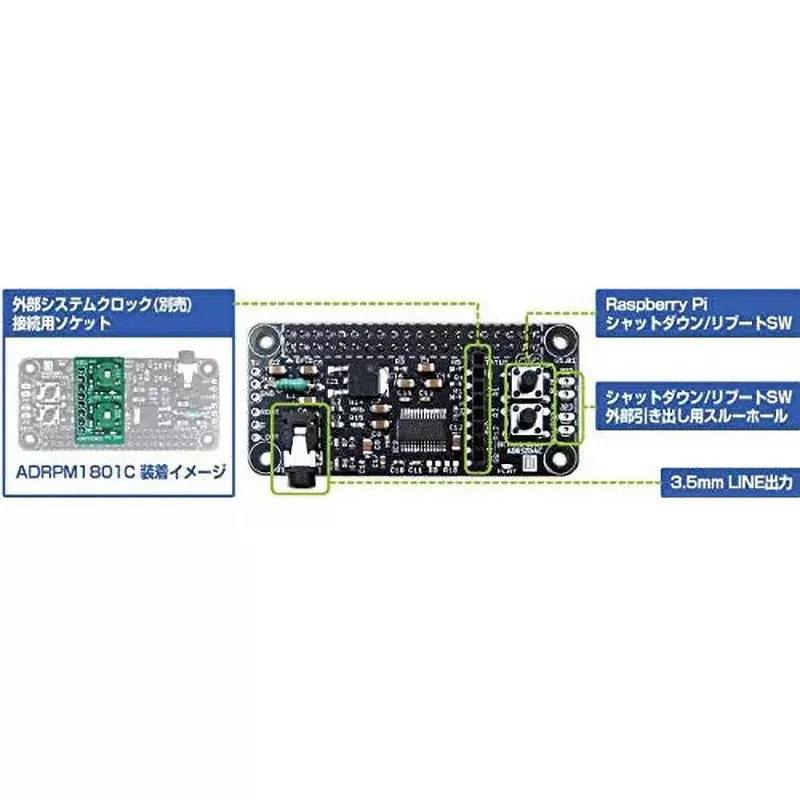

Input / Output Configuration |
I2S inputx1 I2Cx1, 3.5mm LINE outputx1 |
