| Model No | ADMU32F(Duke32AIO) |
| Type of Product | Control Board |
| Country of Origin | Japan |
| Monotaro ID | 62957449 |
Model No |
ADMU32F(Duke32AIO) |
Type of Product |
Control Board |
Country of Origin |
Japan |
Monotaro ID |
62957449 |
Power Supply |
USB power supply / external power supply terminal for motor (4.5 to 6V) (2 power supplies required) Connect voltage. If you do not use an appropriate power supply voltage, it may cause malfunction or failure of the DC motor or servo motor. Never connect a voltage exceeding DC6V to the external power supply terminal for the motor. It will be the cause of the failure. |
Name of Manufacturer/Packer/Importer |
Bit Trade One |
Import Country |
Direct Import from Japan |
Specifications |

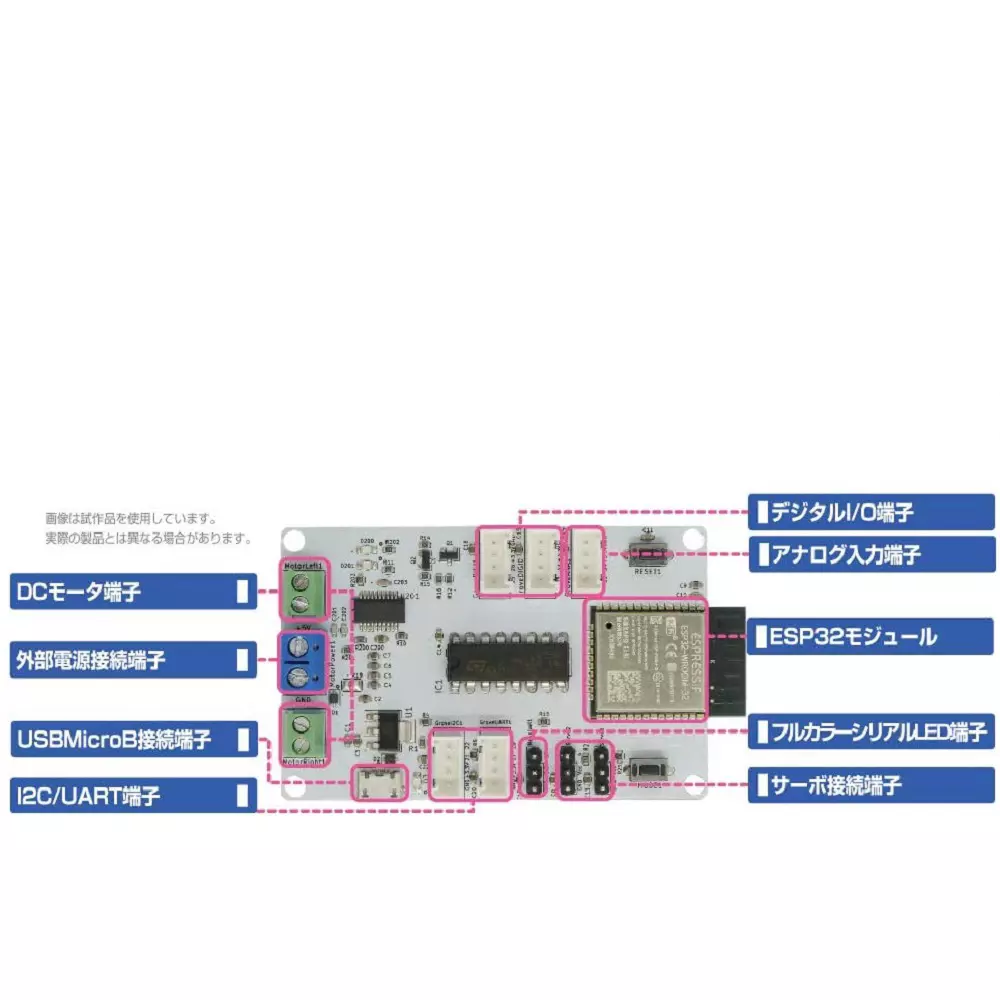

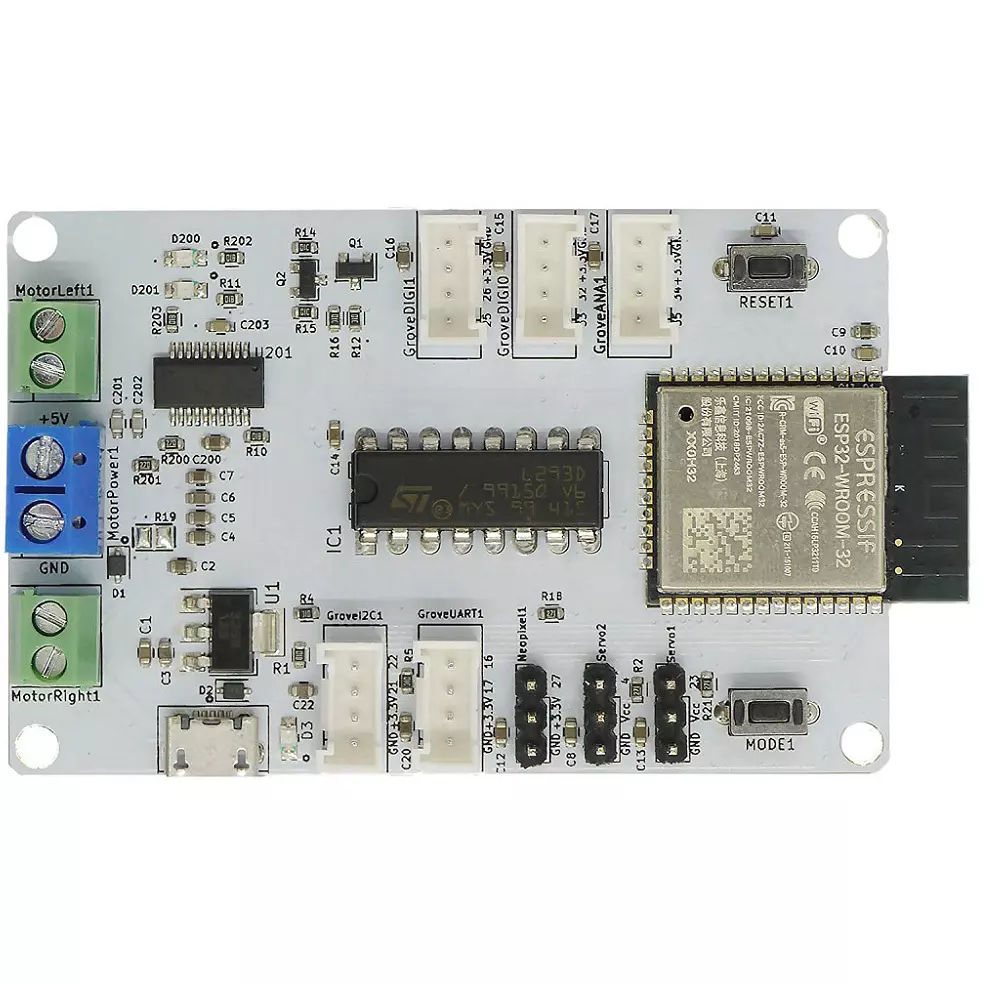

Built-in microcontroller: ESP-WROOM-32 External interface: DC motor outputx2 (terminal terminal), servo motor outputx2 (2.54mm 3P pin header), digital I/Ox4 (Grove connectorx2), analog inputx2 (Grove connectorx1), serial LED output (NeoPixel)x1 (2.54mm 3P pin header), I/C (Grove connector)x1, UART (Grove connector)x1, USB (MicroB)x1 Weight: Approximately 18g Programming environment: Dedicated app (compatible OS Windows) or |
Main Unit Dimensions |
W70xH11xD45 mm |
Operating Temperature |
0 to 40 ℃ (without condensation) |
