Ships within 25 days
View
View
View
View

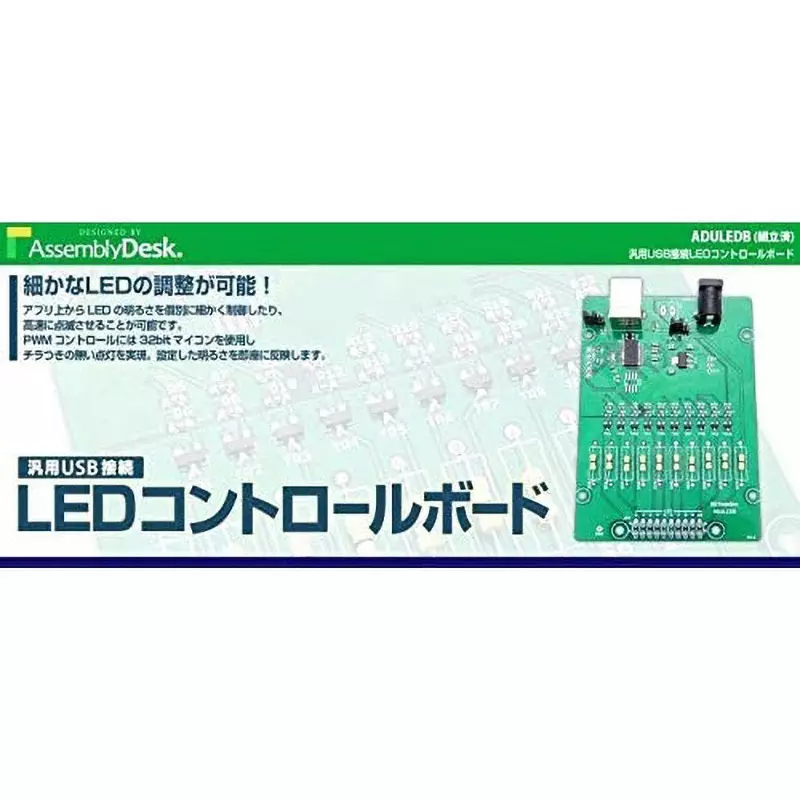

| Model No | ADULEDB |
| Type of Product | Control Board |
| Country of Origin | Japan |
| Monotaro ID | 62957887 |
Model No |
ADULEDB |
Type of Product |
Control Board |
Country of Origin |
Japan |
Monotaro ID |
62957887 |
Interface |
USB B |
Name of Manufacturer/Packer/Importer |
Bit Trade One |
Import Country |
Direct Import from Japan |
Specifications |
LED output: Sink type (open drain) LED power supply (positive) Terminal: Through-hole (2.54mm pitch, 2X10) * LEDs must be directly soldered to the through-hole * A commercially available pin header can be attached (soldering required, pin header (must be prepared by the user) Weight: Approx. 30g LED power supply: ・Selectable from external (DC15V or less) or USB supply (DC5V) (switched by jumper pin on board) ・External power supply is DC jack or terminal block Either can be used (pay attention to polarity) DC jack: 5.5 mm outer diameter/2.1 mm inner diameter, center |
Main Unit Dimensions |
67x94.4x13 mm (excluding protrusions on the solder surface side) |
Operating Temperature |
0 to 40 ℃ (without condensation) |
