Bit Trade One Control Board, ADRPTB8C

Name: Bit Trade One Control Board, ADRPTB8C
Brand: Bit Trade One
SKU: IND.IND.943923385
Price: 7787 INR
Availability: InStock

Visit the Bit Trade One Store

EMI starts at ₹692/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Model No	ADRPTB8C
Type of Product	Control Board
Country of Origin	Japan
Monotaro ID	24807029

More Bit Trade One Controller Boards products More Controller Boards products

1 year from purchase

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Model No	ADRPTB8C
Type of Product	Control Board
Country of Origin	Japan
Monotaro ID	24807029
Power Supply	Power supply for PWM: 2-pole screwless terminal block, power supply for motor: 2-pole screwless terminal block
Name of Manufacturer/Packer/Importer	Bit Trade One
Included Components	Spacer: M2.6x13mmx4, Screw: M2.6x6mmx8, Warranty cardx1 (RaspberryPi body not included)
Warranty Duration	1 year from purchase
Import Country	Direct Import from Japan

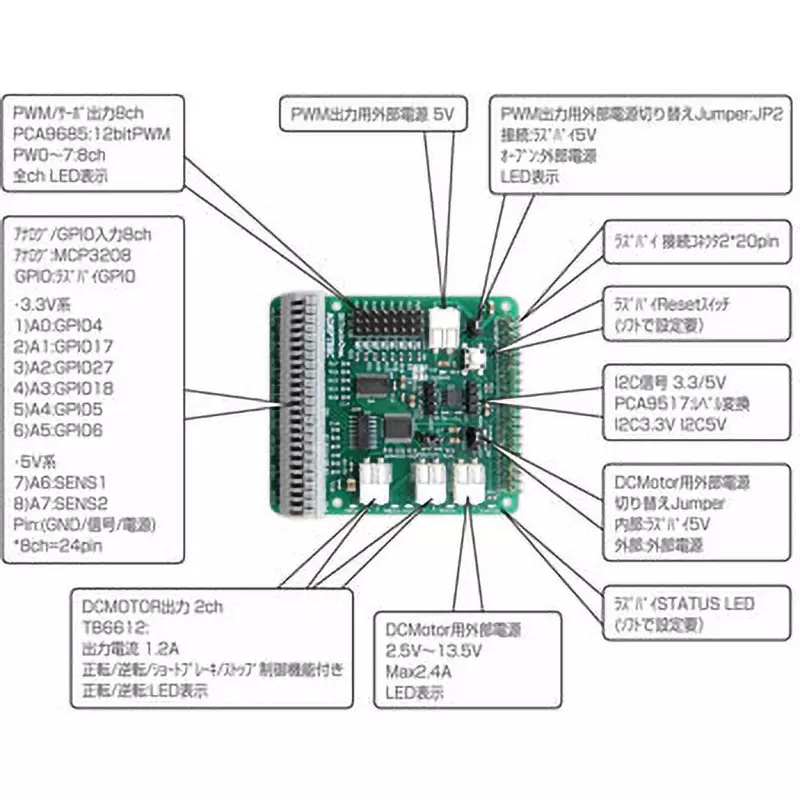

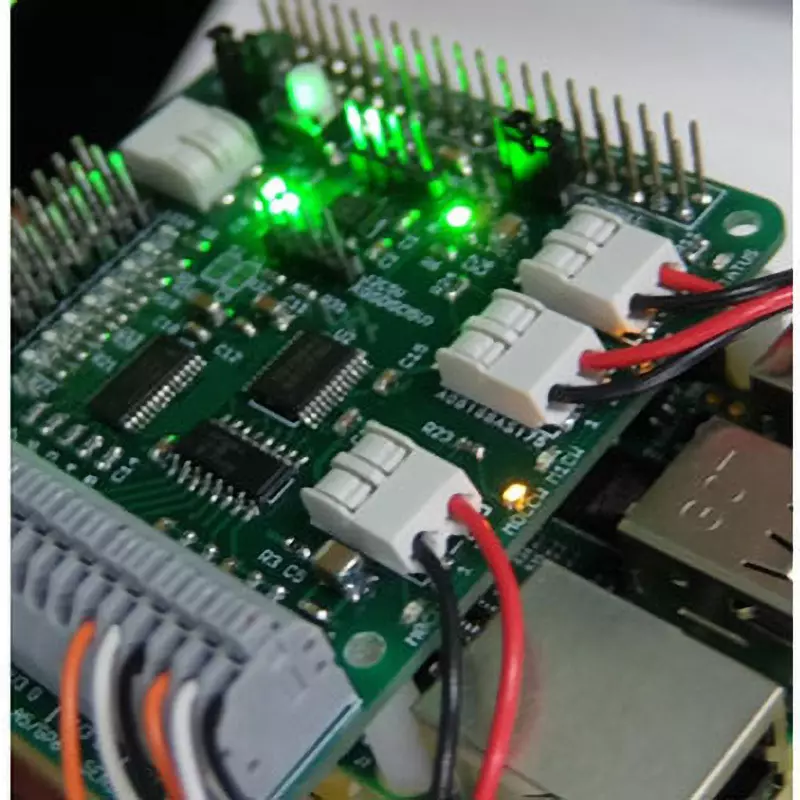

Specifications	[Motor output: 2ch output current] 1.2ATB6612DualDC motor driver PWM output with forward/reverse/short brake/stop control function Control by PCA9685 Supports both 3.3V and 5V voltage systems 3.3VI2C Direct signal from Raspberry Pi (2.7kΩ Pulled up) 5VI2CPCA9517 Level conversion I2CRepeater PWM power supply and motor power supply can be supplied externally PWM power supply 5V Motor power supply 5-12V

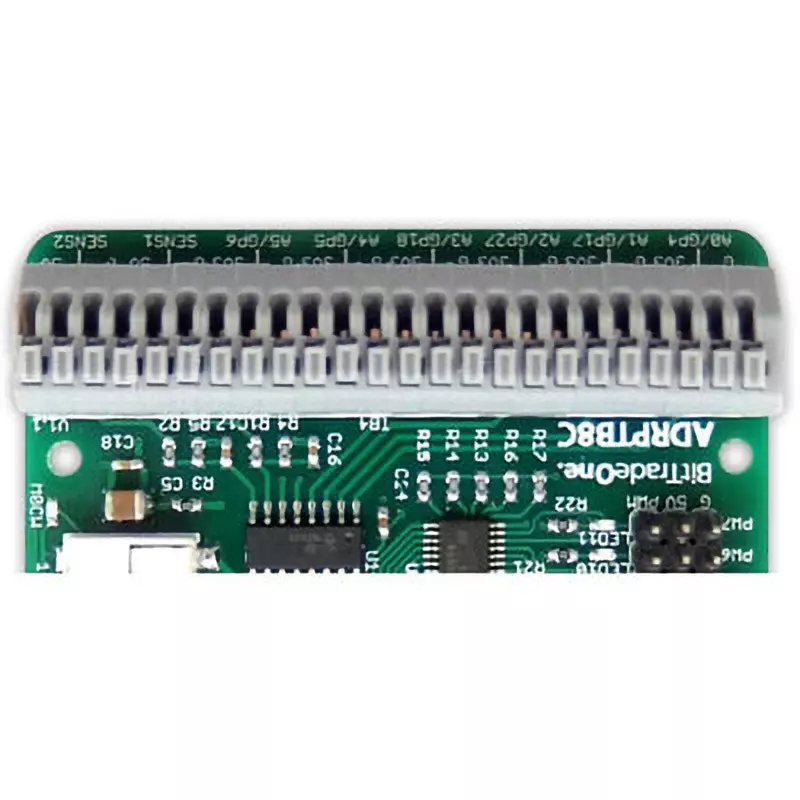

Connector	General-purpose input/output: 6ch 3-pin (SIG+3.3V+GND)/ch (using 24-pole screwless terminal block) Analog input: 2ch 3-pin (SIG/+5V/GND)/ch (using 24-pole screwless terminal block) ) PWM output: 8ch 3pins (SIG+5V+GND)/ch2.54pitch, pin header motor output: 2ch 2pins (SIG+, SIG-)/ch (using two 2-pole screwless terminal blocks) Supports both 3.3V and 5V : I2C for 3.3V: 4pins (3.3V, SCL, SDA, GND)/ch2.54pitch, pin header I2C for 5V: 4pins (5V, SCL, SDA, GND)/ch2.54pitch, pinheader
Output	(PWM) 8ch: PCA9685 / 12bitPWM, 16ch (6ch used for TB6612) I2C
Mass of Main Unit (g)	About 39
Sampling Speed	50ksps
Digital Input / Output Pins	6ch Raspberry Pi GPIO / input / output range 0 to 3.3V
Analog Input Range	(6ch)12bit：0 to 3.3 V, (2ch)12bit：0 to 6.6 V
Analog Input	(6ch) MCP3208: 12bit, (8ch) A / D converter SPI, (2ch) MCP3208: 12bit
