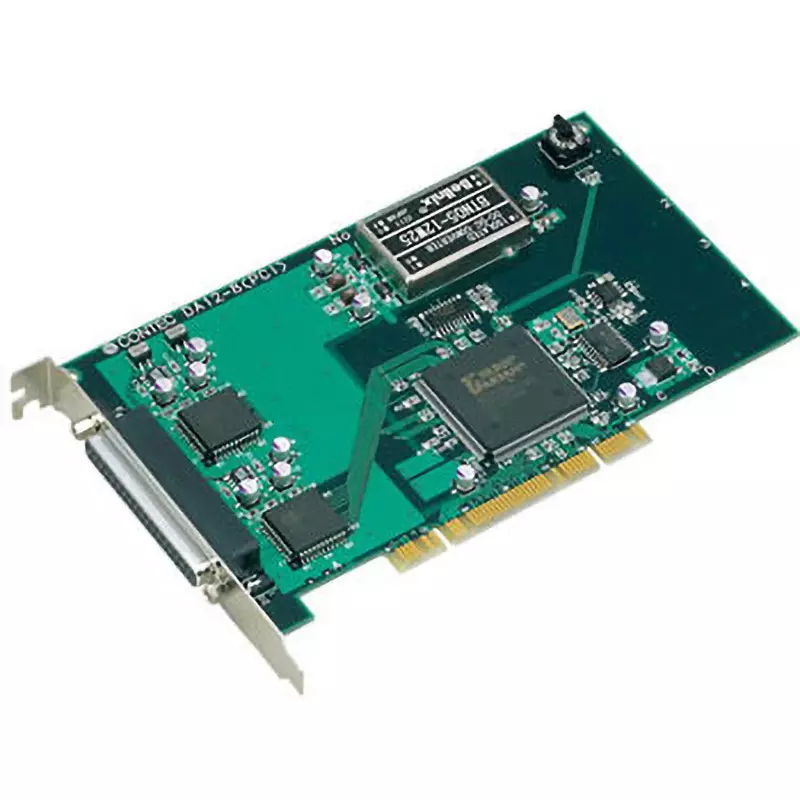

| Model No | DA12-8(PCI) |
| Type of Product | Analog Output Board |
| Country of Origin | Japan |
| Resolution | 12-bit |
Model No |
DA12-8(PCI) |
Type of Product |
Analog Output Board |
Country of Origin |
Japan |
Resolution |
12-bit |
Monotaro ID |
11693352 |
Name of Manufacturer/Packer/Importer |
Contec Co., Ltd. |
Operating Temperature Range |
0 to 50℃ |
No. of Output Channels |
8ch |
Import Country |
Direct Import from Japan |
Mass (g) |
135 |
Current Consumption (mA) |
800 mA (Max.)(DC 5 V) |
Input Impedance |
less than 10 Ω |
External Dimension |
176.41x105.68 |
Operating Humidity Range |
10-90 %RH (however, no condensation) |
Output Range |
Bipolar ± 10V, ± 5V, Unipolar 0-10V (software setting for each channel) |
Suitable Connector |
37-pin D-SUB connector (F (female) type), DCLC-J37SAF-20L9E (made by JAE) equivalent |
