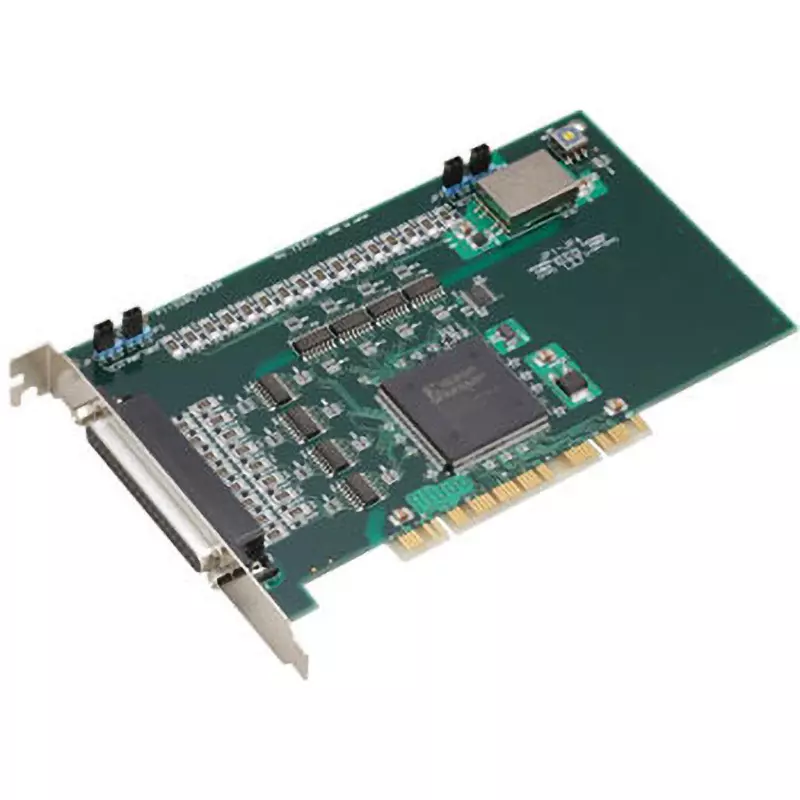

| Model No | PI-32B(PCI)H |
| Type of Product | Digital Input Board |
| Country of Origin | Japan |
| Monotaro ID | 11693072 |
Model No |
PI-32B(PCI)H |
Type of Product |
Digital Input Board |
Country of Origin |
Japan |
Monotaro ID |
11693072 |
Name of Manufacturer/Packer/Importer |
Contec Co., Ltd. |
Operating Temperature Range |
0 to 50℃ |
Import Country |
Direct Import from Japan |
Mass (g) |
150 |
Current Consumption (mA) |
1200 (DC5V when using built-in power supply), 300 (DC5V when using external power supply) |
Input format |
Optocoupler isolated input (compatible with current sink output) (negative logic) |
Number of Input Points |
32 points (all can be used for interrupts) (1 common in 16-point units) |
External Dimension |
176.41x105.68 |
Operating Humidity Range |
10-90 %RH (however, no condensation) |
Response Time |
Within 200 μsec |
Input Resistance |
4700 Ω |
