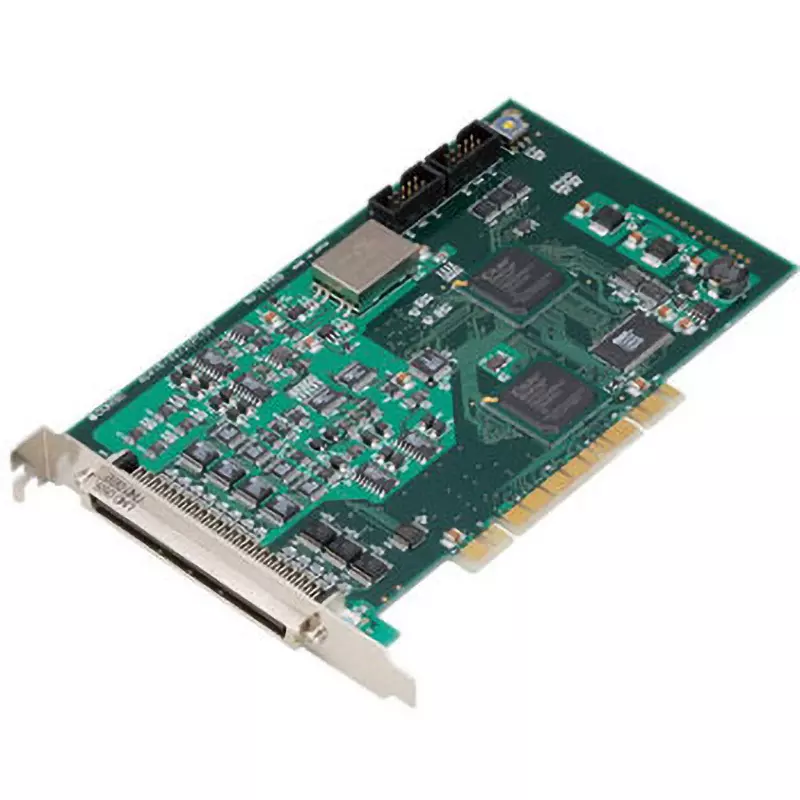

| Model No | ADA16-32/2(PCI)F |
| Type of Product | Analog Input Board |
| Country of Origin | Japan |
| Resolution | 16-bit |
Model No |
ADA16-32/2(PCI)F |
Type of Product |
Analog Input Board |
Country of Origin |
Japan |
Resolution |
16-bit |
Part No |
64-8863-45 |
Monotaro ID |
11693298 |
Name of Manufacturer/Packer/Importer |
Contec Co., Ltd. |
No. Of Output |
8 non-isolated outputs (TTL, level, positive logic) |
Operating Temperature Range |
0 to 50℃ |
No. of Output Channels |
2ch |
Import Country |
Direct Import from Japan |
Mass (g) |
130 |
Current Consumption (mA) |
1100 mA (Max.)(DC 5 V) |
Number of Input Points |
8 non-isolated inputs (TTL, level, positive logic) |
Output Impedance(Ohm) |
1 or less |
Input Impedance |
1x10 ⁶ Ω or more |
External Dimension |
176.41x105.68 |
Input Range |
Bipolar ± 10V, ± 5V, ± 2.5V, or Unipolar 0-10V, 0-5V, 0-2.5V |
Operating Humidity Range |
10-90 %RH (however, no condensation) |
Output Range |
Bipolar ± 10V, ± 5V, ± 2.5V, ± 1.25V, or Unipolar 0-10V, 0-5V, 0-2.5V |
Number of Input Channels |
32ch (single end), 16ch (differential) |
Suitable Connector |
96-pin half-pitch connector (M (male) type), PCR-96LMD (manufactured by Honda Tsushin Kogyo) |
