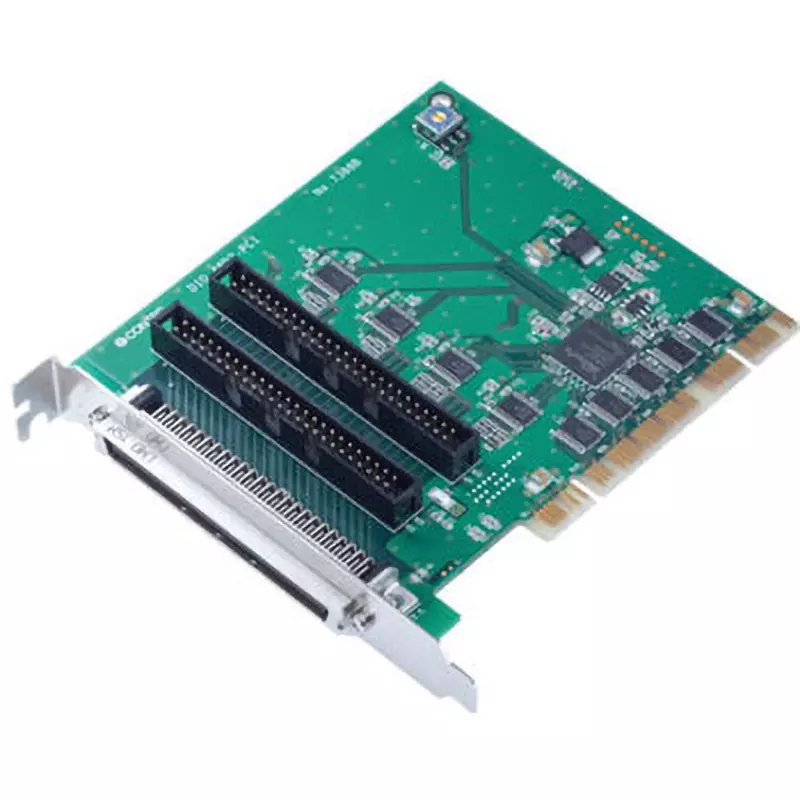

| Model No | DIO-48D2-PCI |
| Type of Product | Digital Input/Output Board |
| Country of Origin | Japan |
| Part No | 64-8864-05 |
Model No |
DIO-48D2-PCI |
Type of Product |
Digital Input/Output Board |
Country of Origin |
Japan |
Part No |
64-8864-05 |
Monotaro ID |
11693754 |
Name of Manufacturer/Packer/Importer |
Contec Co., Ltd. |
No. Of Output |
48 points (can be used for all point interrupts) |
Operating Temperature Range |
0 to 50℃ |
Import Country |
Direct Import from Japan |
Mass (g) |
130 |
Current Consumption (mA) |
600 mA (Max.)(DC 5 V) |
Number of Input Points |
48 points (can be used for all point interrupts) |
External Dimension |
121.69x105.68 |
Operating Humidity Range |
10-90 %RH (however, no condensation) |
Suitable Connector |
CN1 96-pin half-pitch connector (M (male) type), PCR-E96LMD + (Honda Tsushin Kogyo) equivalent, CN2 CN3 50-pin IC pitch pin header connector, PS-50PE-D4T1-B1A (JAE) equivalent |
