| Model No | ADI16-16(LPCI)L |

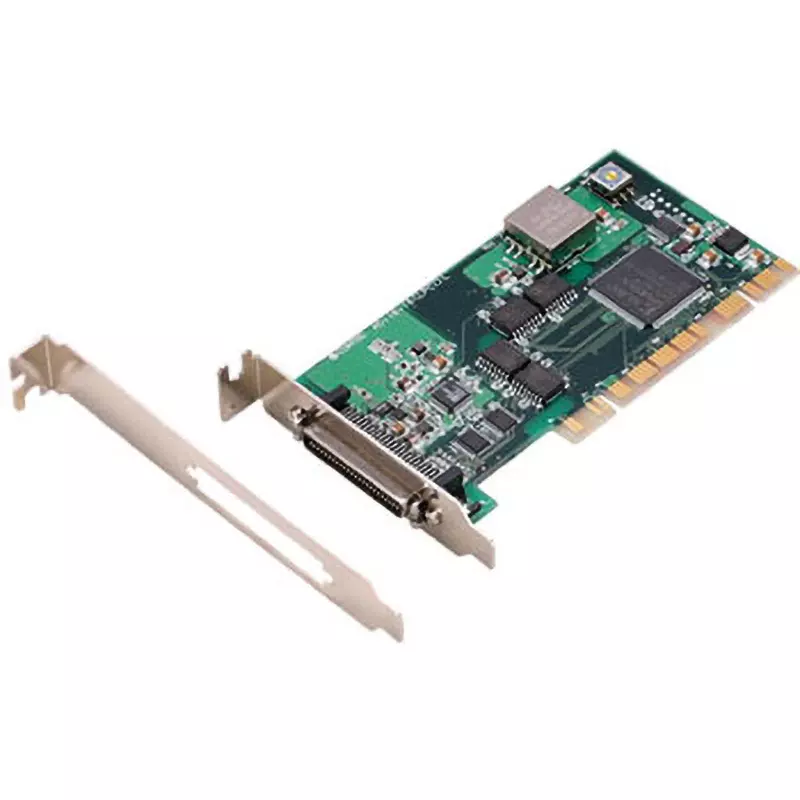

| Type of Product | Analog Input Board |
| Country of Origin | Japan |
| Resolution | 16-bit |
Model No |
ADI16-16(LPCI)L |
Type of Product |
Analog Input Board |
Country of Origin |
Japan |
Resolution |
16-bit |
Monotaro ID |
11692984 |
Name of Manufacturer/Packer/Importer |
Contec Co., Ltd. |
No. Of Output |
Insulated output 4 points (TTL, level, positive logic) |
No. of Channels |
1ch |
Operating Temperature Range |
0 to 50℃ |
Import Country |
Direct Import from Japan |
Mass (g) |
65 |
Current Consumption (mA) |
400 mA (Max.)(DC 5 V) |
Number of Input Points |
4 isolated inputs (TTL, level, positive logic) |
Input Impedance |
1x10 ⁶ Ω or more |
External Dimension |
121.69x63.41 |
Operating Humidity Range |
10-90 %RH (however, no condensation) |
Number of Input Channels |
16ch |
Suitable Connector |
10250-52A2JL (3M) equivalent |
