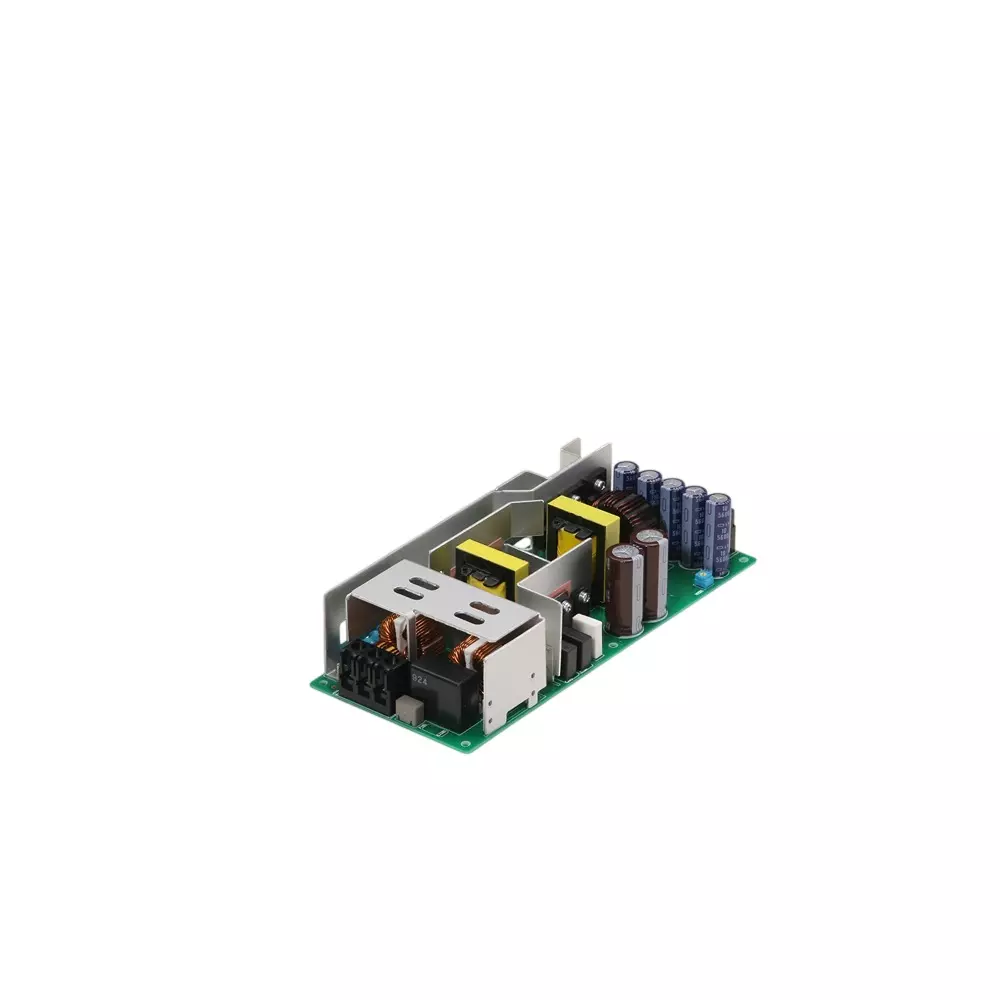

| Model No | LFA300F-30-STY |
| Type of Product | Power Supply Board |
| Series | LF |
| Shape | Substrate alone |
Model No |
LFA300F-30-STY |
Type of Product |
Power Supply Board |
Series |
LF |
Shape |
Substrate alone |
Country of Origin |
Japan |
Monotaro ID |
19736019 |
Name of Manufacturer/Packer/Importer |
Cosel |
Function |
Remote sensing: None, Remote control (RC): Optional (requires external power supply) |
Cooling Method |
Natural cooling/forced ventilation [derating] |
Import Country |
Direct Import from Japan |
Input Voltage (V) |
AC 85 to 264 1Φ [derating] |
Specifications |
With chassis, terminal block horizontal type, with volume |
Mass (g) |
810 (max) |
Rated Output Current (A) |
Natural air cooling: 10 / forced ventilation: 11 |
Rated Input Voltage (V) |
AC 85 to 264 1Φ |
Input Frequency (Hz) |
50/60(47 to 63) |
Storage Temperature |
-20 to 75℃ |
Vibration |
19.6 m/s² [10 to 55Hz (2G) cycle 3 minutes, 1 hour each in X, Y, and Z directions] |
Outer Dimensions, Width W x Height H x Depth D (mm) |
95 x 52.5 x 222 (W x H x D) [excluding terminal block] |
Operating Temperature (c) |
-10 to 70℃ |
Inrush current (A) |
ACIN 100 V: 15/30 typ (Io=100%) [primary inrush current value/secondary inrush current value/restart interval 3 seconds or more], ACIN 200V: 30/30 typ (Io=100%) [primary inrush current value/secondary inrush current value/restart interval 3 seconds or more] |
Input Current (A) |
ACIN 100/200 V：4.1/2 typ(Io=100%) |
Rated Output Power (W) |
300 |
Safety Standard |
UL60950-1, C-UL (CSA60950-1), EN62368-1 certified, compliant with the Electrical Safety Law |
Terminal Shape |
Screw |
Power Factor |
ACIN 100/200 V：0.99/0.95 typ(Io=100%) |
