| Model No | DMH-HC1 16BIT |

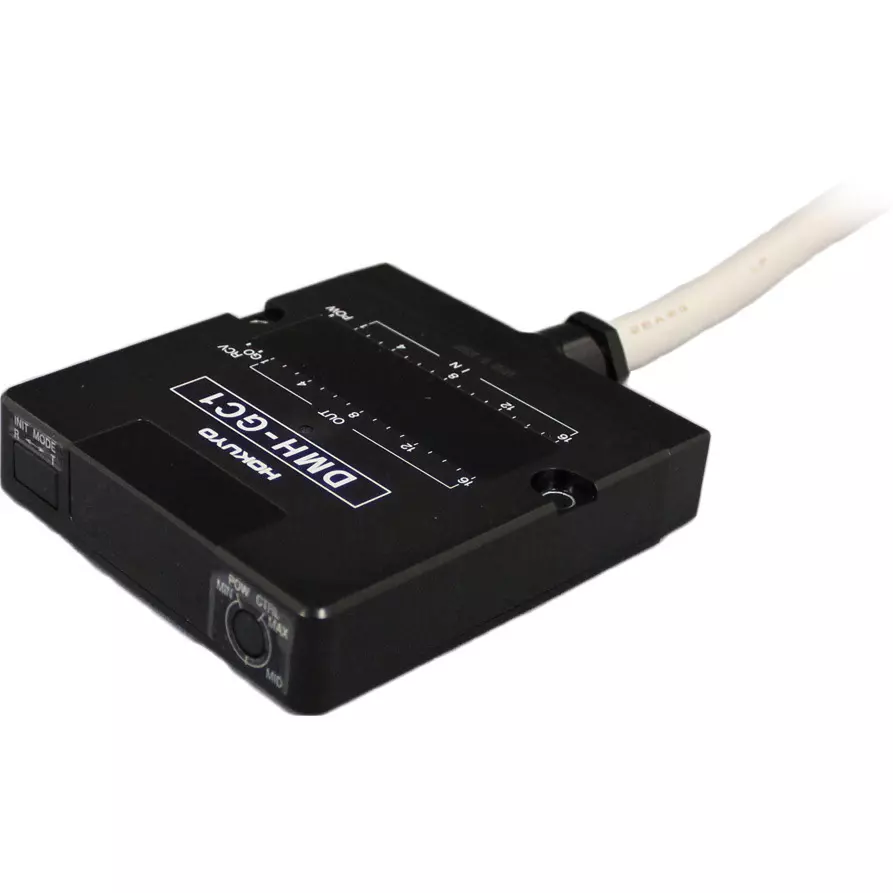

| Type of Product | Optical Data Transmission Device |
| Country of Origin | Japan |
| Capacity | (Input/Output) 16BIT/16BIT |
Model No |
DMH-HC1 16BIT |
Type of Product |
Optical Data Transmission Device |
Country of Origin |
Japan |
Capacity |
(Input/Output) 16BIT/16BIT |
Monotaro ID |
58766027 |
Name of Manufacturer/Packer/Importer |
Hokuyo Electric Co., Ltd. |
Import Country |
Direct Import from Japan |
Protection Class |
IP64 (IEC standard) |
Mass (g) |
Approximately 400 (including 2m cable) |
Transmission distance (m) |
0 to 3 (distance adjustable with light projection volume) |
Ambient Illumination to Use (Lx) |
10000 or less |
Operating Temperature / Humidity Range |
-10℃ to +50℃ 85%RH or less |
Transmission Method |
Half-duplex two-way transmission |
Connector |
Pull-out cord type (40-core cabtyre cable, 2m long) |
Current Consumption (mA) |
150 or less |
Modulation method |
FSK modulation |
Positioning Angle |
±13° |
Power Supply Voltage |
DC 24 V (10 to 30 |
Vibration Resistance |
Double amplitude 1.5 mm 10~55Hz X, Y, Z directions each 2 hours each |
Shock Resistance |
500 m/s2 3 times each in X, Y, and Z directions |
Certification |
Bit-reversal comparison method |
Transmission Time |
15 ms |
