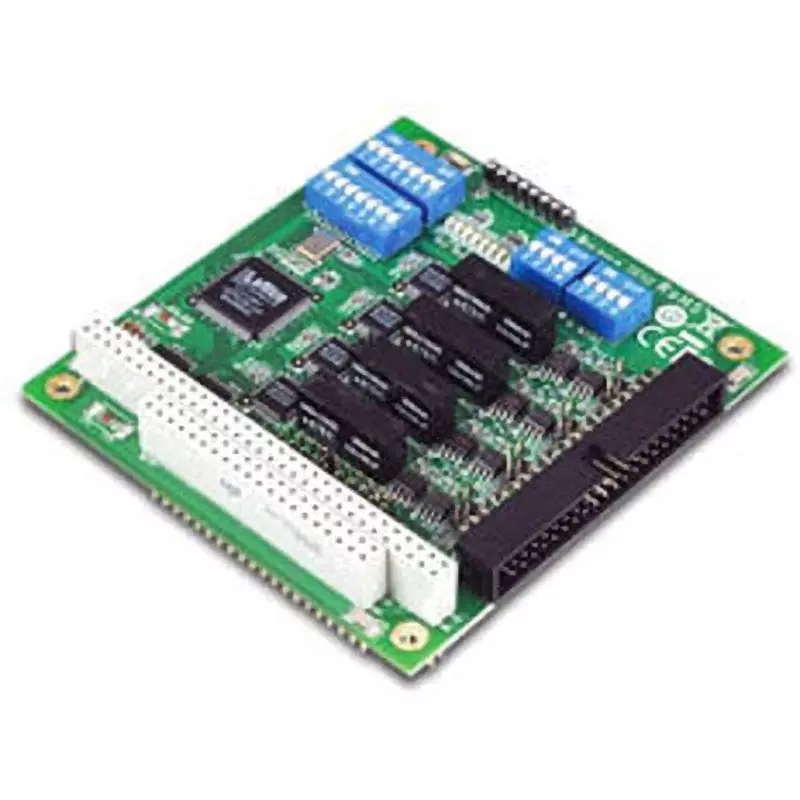

| Model No | CB-134I-T |
| Type of Product | Industrial Board |
| Country of Origin | Japan |
| Monotaro ID | 55084347 |
Model No |
CB-134I-T |
Type of Product |
Industrial Board |
Country of Origin |
Japan |
Monotaro ID |
55084347 |
Interface |
(Bus) PC / 104-plus (PCI) bus, (Serial) RS-422 / 485, (Surge protection) 15KV ESD surge protection function |
Name of Manufacturer/Packer/Importer |
MOXA |
No. of Port |
4 |
Power Consumption |
240(5V) |
Dimension (mm) |
90x96 |
Import Country |
Direct Import from Japan |
Connector |
40-pin box header |
Standard |
EN55022， EN55024， EN61000-3-2， EN61000-3-3， IEC61000-6-2， IEC61000-6-4， IEC61000-4-2， IEC61000-4-3， IEC61000-4-4， IEC61000-4-5， IEC61000-4-6， IEC61000-4-8， IEC61000-4-11， FCC Part 15 Class A |
RoHS Directive |
Correspondence |
Supported OS |
Windows 7/Vista/XP/2008/2003 (x86/x64)， Windows 2000/95/98/ME/NT， Windows CE 5.0/6.0， Windows XP Embedded， DOS， Linux 2.4/2.6 (x86/x64)， FreeBSD 4/5， QNX 6.x， SCO UnixWare 7， Sun Solaris 10 |
Recycled Material Usage Rate |
Conformity |
Signal |
[RS-422] TxD + (B), TxD- (A), RxD + (B), RxD- (A), GND, [4-wire RS-485] TxD + (B), TxD- (A), RxD + ( B), RxD- (A), GND, [2-wire RS-485] Data + (B), Data- (A), GND |
Parameter |
(Data bits) 5, 6, 7, 8, (Stop bits) 1, 1.5, 2, (Parity) None, Odd, Even, Space, Mark, (I / O address / IRQ) Assigned by BIOS, (FIFO) 128 bytes |
Relative Humidity |
5 to 95%RH |
Controller model |
MU860 (16C550C compatible) |
Operating Temperature (f) |
-40 to 85/-40 to 55 |
Baud Rate |
50bps to 921.6Kbps |
