| Model No | CMBZ505012WC |
| Type of Product | Panel Cabinet |
| Country of Origin | Japan |
| Monotaro ID | 7368392 |
Model No |
CMBZ505012WC |
Type of Product |
Panel Cabinet |
Country of Origin |
Japan |
Monotaro ID |
7368392 |
Name of Manufacturer/Packer/Importer |
Naigai Electric Co., Ltd. |
Mass (Kg) |
15 |
Import Country |
Direct Import from Japan |
Protection Class |
IP2XD |
Specifications |
Embedded type |
RoHS Directive |
Correspondence |
Color (Munsell value) |
2.5Y9/1 |
Material (Circuit Board) |
wooden |

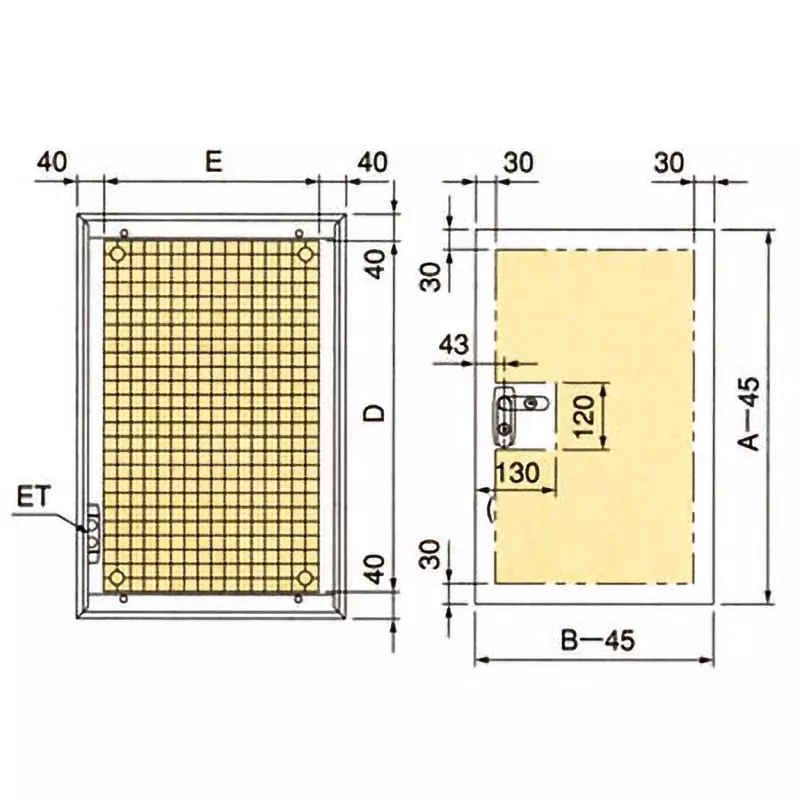

Circuit Board Dimensions, Length x Width (mm) |
420x420 |
Wall Thickness (mm) |
(Door/Body/Front Frame) 1.6 |
Dimension Z (mm) |
75 (effective depth under the handle) |
Earth Terminal |
Copper terminal screw M8 x 16 (green head) |
Door Dimensions, Height x Width (mm) |
455x455 |
Substrate Thickness |
12 mm |
Paint Color |
Cream |
Handle |
Swing handle (key No. NCH200), small (NCH-13) |
Door Material |
Iron |
Door Opening / Closing Pattern |
One-Sided |
Body Material |
Iron |

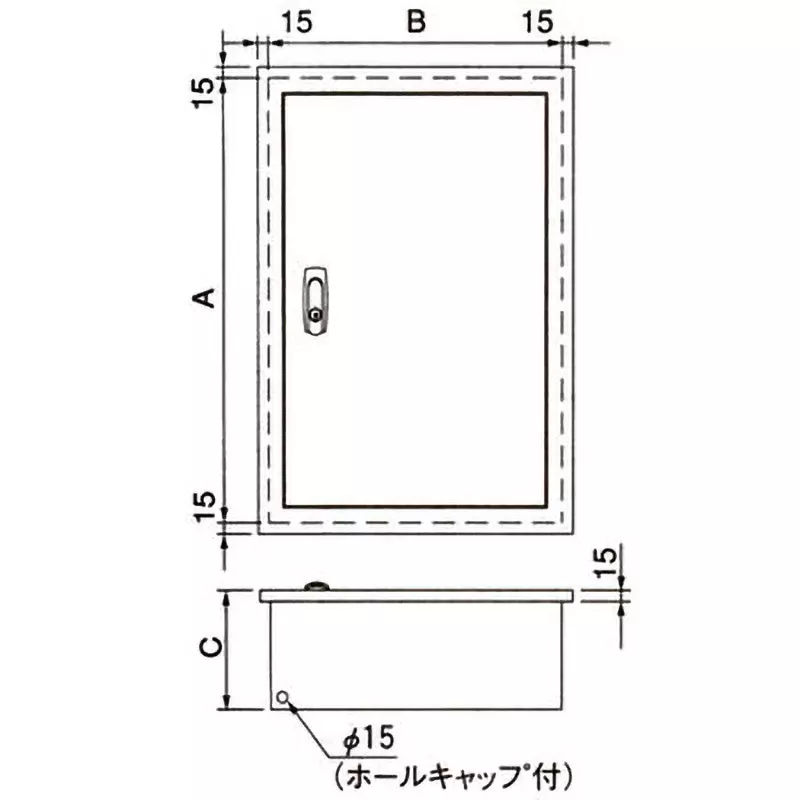

Dimensions LengthxWidthxThickness (mm) |
500x500x120 |
Effective Depth (mm) |
93 |
Frame Material |
Iron |
