Ships within 19 days
View
View
View
View
| Model No | CMEZ705025SK |
| Type of Product | Panel Cabinet |
| Country of Origin | Japan |
| Monotaro ID | 7359335 |
Model No |
CMEZ705025SK |
Type of Product |
Panel Cabinet |
Country of Origin |
Japan |
Monotaro ID |
7359335 |
Name of Manufacturer/Packer/Importer |
Naigai Electric Co., Ltd. |
Mass (Kg) |
25.7 |
Import Country |
Direct Import from Japan |
Protection Class |
IP2XD |
Specifications |
Exposure type |
Depth (mm) |
250 |
Material (Circuit Board) |
Iron |
Circuit Board Dimensions, Length x Width (mm) |
620x420 |
Wall Thickness (mm) |
(Door/Body/Front Frame) 1.6 |
Dimension Z (mm) |
212 (effective depth under handle) |
Earth Terminal |
Copper screw M8 x 16 (green head) |

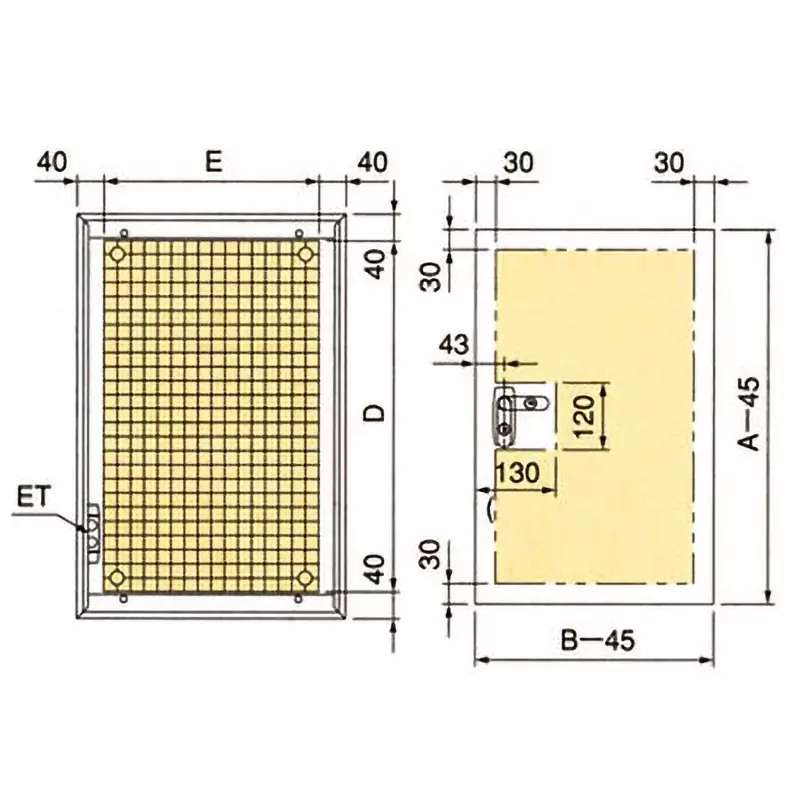

Next to Dimensions (mm) |
500 |
Door Dimensions, Height x Width (mm) |
655x455 |
Installation Location |
For indoor use |
Substrate Thickness |
2.3 mm |
Paint Color |
Beige |
Handle |
Swing handle (key No. NCH200), small (NCH-13) |
Door Material |
Iron |
Door Opening / Closing Pattern |
One-Sided |
Body Material |
Iron |
Dimensions LengthxWidthxThickness (mm) |
700x500x250 |
Frame Material |
Iron |
