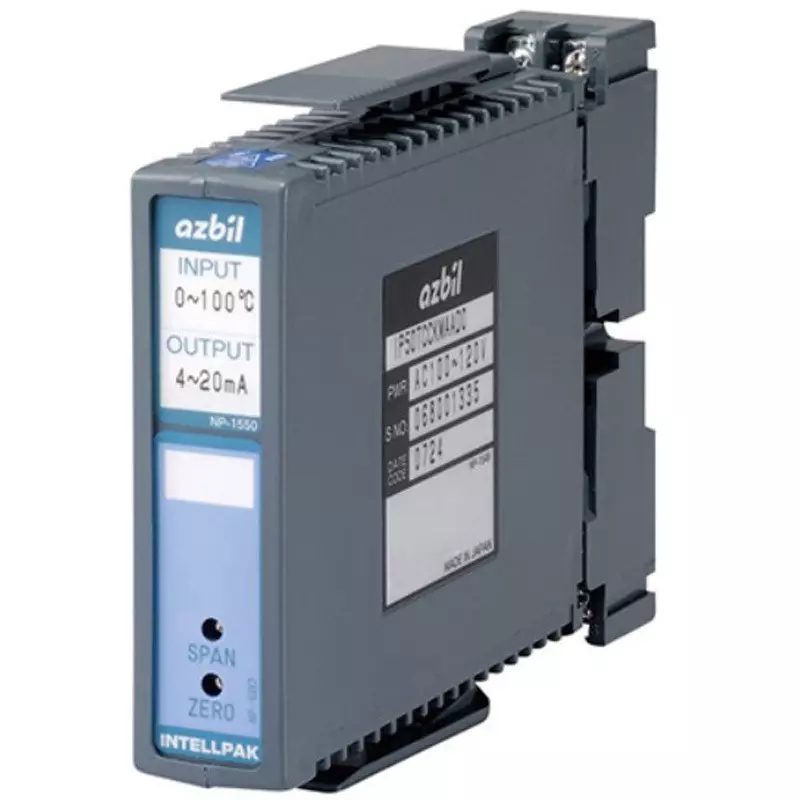

| Type of Product | Intel Pack Millivolt Eye Converter |
| Model No | IP50TCCKLAA00 |
| Power Consumption | About 5.5 VA |
| Country of Origin | Japan |
Type of Product |
Intel Pack Millivolt Eye Converter |
Model No |
IP50TCCKLAA00 |
Power Consumption |
About 5.5 VA |
Country of Origin |
Japan |
Monotaro ID |
7596855 |
Type |
Insulated thermocouple transducer |
Name of Manufacturer/Packer/Importer |
Azbil Corporation |
Mass (g) |
Approx. 200 (including base socket) |
Power Supply Voltage (V) |
AC 100/110/120 V (50/60 Hz) |
Input Impedance |
Over 1000000 Ω |
Input Type |
thermocouple |
Import Country |
Direct Import from Japan |
Specifications |
Additional processing: None , Input type / range: 0 to 800 ℃ |
Load Resistance |
750Ω or less |
Case Material |
Heat resistant ABS resin |
Terminal Fitting Type |
Wall mount or DIN rail mount |
Output |
4 to 20 mA |
Operation Ambient Temperature (°C) |
-5 to 55 |
Accuracy (%) |
±0.4FS |
Response Time (seconds) |
0.025 (with 90% response) |
Operating Ambient Humidity |
90 % RH or less (no condensation) |
