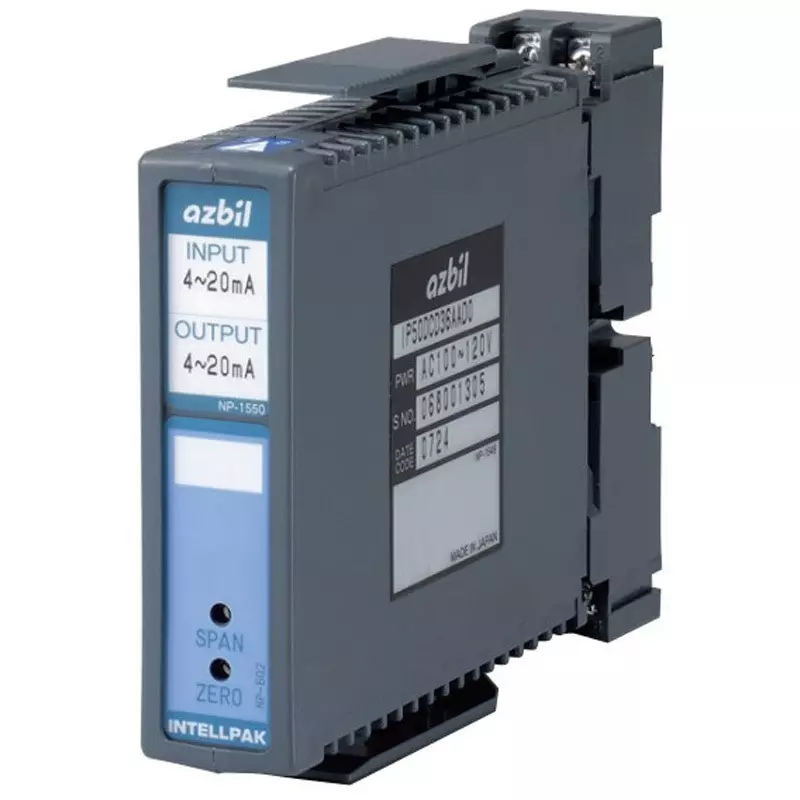

| Type of Product | Intel Pack DC Converter |
| Model No | IP50DCD10HAD0 |
| Power Consumption | About 4.5 VA |
| Country of Origin | Japan |
Type of Product |
Intel Pack DC Converter |
Model No |
IP50DCD10HAD0 |
Power Consumption |
About 4.5 VA |
Country of Origin |
Japan |
Monotaro ID |
7607732 |
Type |
DC Con Verter (Non-Insulated Type) |
Name of Manufacturer/Packer/Importer |
Azbil Corporation |
Mass (g) |
Approx. 200 (Including Base Socket) |
Power Supply Voltage (V) |
AC 100/110/120(50/60 Hz) |
Input Impedance |
1000000 Ω |
Input Type |
0 to 10 mV |
Import Country |
Direct Import from Japan |
Specifications |
Additional Processing: With Inspection Report |
Load Resistance |
2.5 kΩ or more |
Case Material |
Heat Resistant Abs Resin |
Terminal Fitting Type |
Wall Mount Or Din Rail Mount |
Output |
1 to 5V |
Operation Ambient Temperature (°C) |
-5 to 55 |
Accuracy (%) |
± 0.1Fs (At Reference Temperature 23°C) |
Response Time (seconds) |
0.025 (with 90% response) |
Operating Ambient Humidity |
90 % RH or less (no condensation) |
