| Power Supply | Sensor: +12V 40mA (max) |
| Type of Product | F/V Converter |
| Model No | KAZ-738-A10 |
| Country of Origin | Japan |
Power Supply |
Sensor: +12V 40mA (max) |
Type of Product |
F/V Converter |
Model No |
KAZ-738-A10 |
Country of Origin |
Japan |
Monotaro ID |
66273080 |
Input Signal |
Between IN+ and IN- / L level 1.2V / H level 4V or more |
Name of Manufacturer/Packer/Importer |
COCO RESEARCH |
Power Supply Voltage (V) |
AC 100 |
Input Type |
pulse |
Import Country |
Direct Import from Japan |

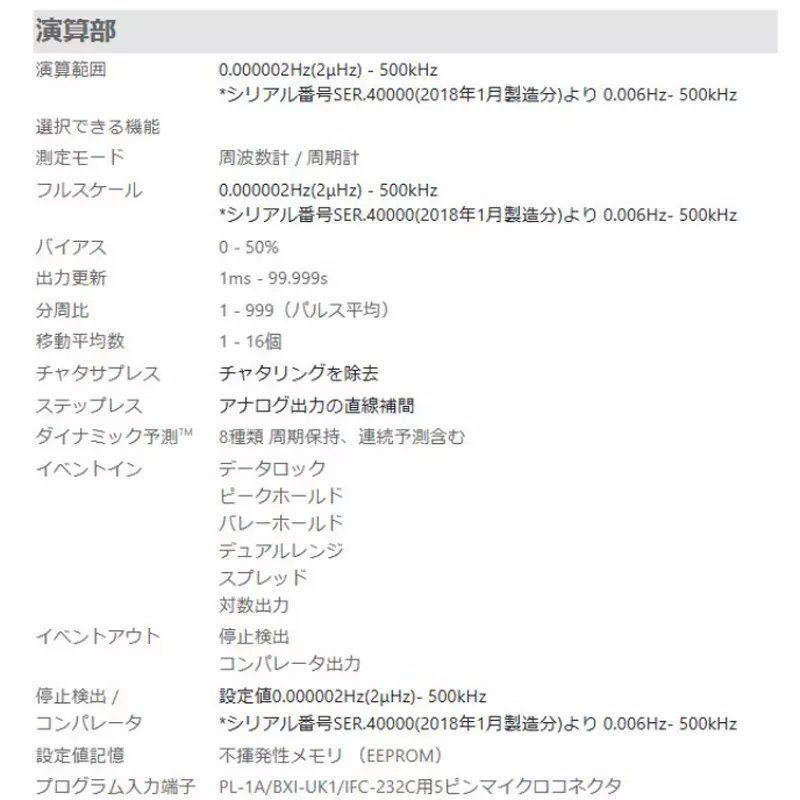

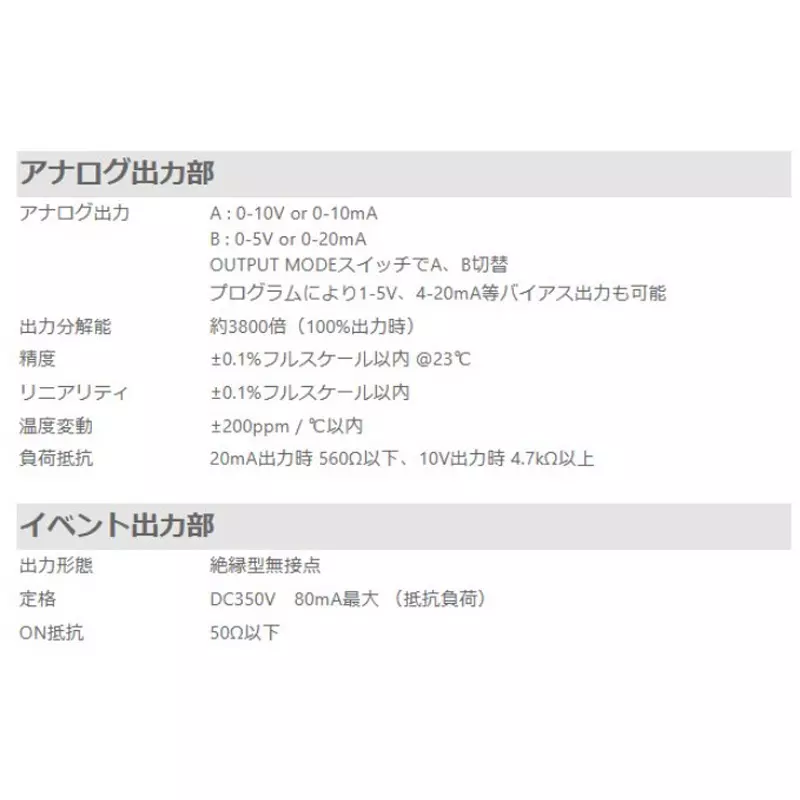

Specifications |
●Isolation: Sensor power supply/input circuit - analog output - event output●Event input circuit: Photocoupler with 1.2kΩ series resistor; pulled up to 12V●Low-pass filter: None / 50kHz (-3dB)●Operating temperature/storage temperature (℃): 0-40/-5-50●Power indicator: Green LED●Input indicator: Red LED, flashes when triggered, lights up with continuous pulse input●Input circuit: Photocoupler with 1.2kΩ series resistor●Input peak value: Maximum ±30V |
Vibration Resistance |
10 - 55Hz, single amplitude 0.35mm / X, Y, Z directions, 45 minutes, 10 cycles |
Power Consumption (VA) |
AC power supply maximum 10VA, DC power supply maximum 5VA |
Input Power |
AC 100 V |
Input Method |
Single-phase |
Measurement Method |
Periomatic TMB (periodic calculation method) |
Insulation Voltage |
AC500 V (1 minute) |
Pulse Width |
0.9μ or more (duty ratio 50%) / 1.2μ or more (duty ratio other than 50%) |
Shock Resistance |
15G X, Y, Z ±6 directions 3 times each |
