| Type of Product | Interface Converter |

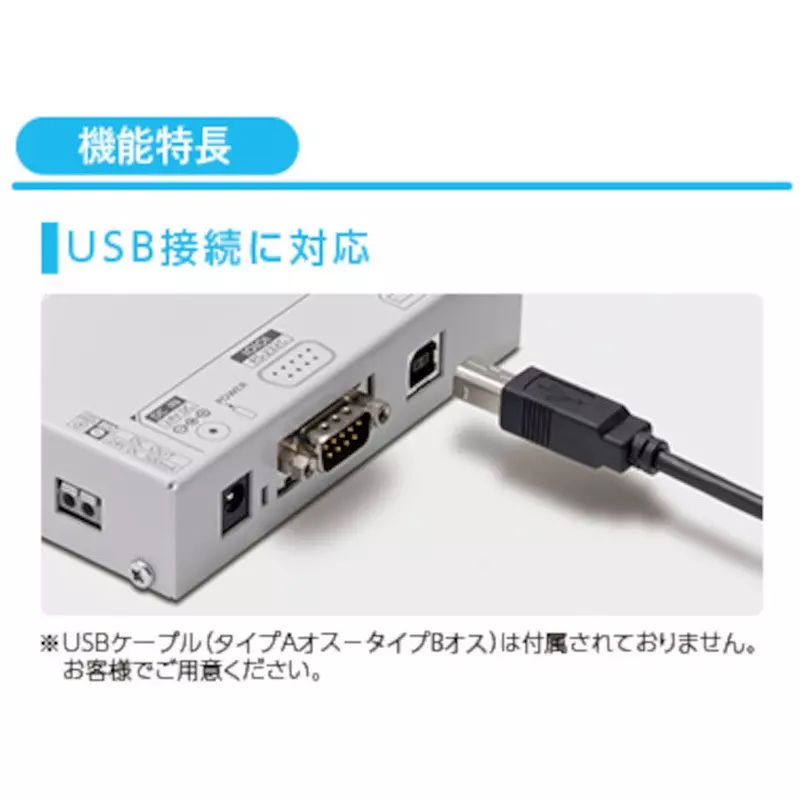

| Interface | USB 2.0/RS-232C (communication) |
| Model No | PHC-D08 |
| Country of Origin | Japan |
Type of Product |
Interface Converter |
Interface |
USB 2.0/RS-232C (communication) |
Model No |
PHC-D08 |
Country of Origin |
Japan |
Included Components |
AC adapter (excluding N type), installation instructions, rubber feet |
Outer Dimensions |
117x100x28 mm (excluding rubber feet) |
Monotaro ID |
40696539 |
Storage Temperature Range |
-10 to 60℃ |
Ambient Humidity to Use |
20% to 85% RH (no condensation) |
Protection Class |
IP65 (IEC 60529) / IP54 (IEC 60529) / NEMA TYPE 4x13 Environmental conditions: When installed in the upright position |
Name of Manufacturer/Packer/Importer |
Patlite Corporation |
Mass (g) |
370(±10%) |
Import Country |
Direct Import from Japan |
Applicable Standard |
RoHS Directive (EN 50581) / EMC Directive (EN 55022 (Class A), EN 55024) / FCC Part15 SubpartB Class A / UL, CSA 60950-1 (PHC-D08N only) / PSE specific electrical equipment (only the included AC adapter, the main unit is not subject to PSE) |
Insulation Resistance (MOhm) |
Between the power supply charging part and non-charging metal part: DC500V 10 or more with megger |
operations type |
Clear switch, setting dip switch |
Output |
External contact output: Screwless terminal block, Number of contacts: 8, Contact specifications: Non-voltage contact output A contact, Contact rating: DC30V/3A, Failure rate P level DC5V/10mA (Opening and closing frequency 120 times/min), Suitable wire diameter solid wire: ?0.4 mm to ?1.2 mm (AWG26 to AWG18) Stranded wire: 0.2(m/ <sup>s2</sup> ) to 0.75(m/ <sup>s2</sup> ) (AWG24 to AWG20) Wire diameter ?0.18 mm or more, Power output: Screwless terminal block DC24V/500mA or less, Suitable wire diameter solid wire: ?0.4 mm to ?1.2 mm (AWG26 to AWG18) Stranded wire: 0.2(m/ <sup>s2</sup> ) to 1.25(m/ <sup>s2</sup> ) (AWG24 to AWG16) Wire diameter ?0.18 mm or more |
Communication Protocol |
USB port: CDC (Communication Device Class) protocol / Serial port: Asynchronous (baud rate 9600bps, no parity, stop bit 1 bit, data length 8 bits, no flow control |
Rated Voltage (V) |
DC24 (AC adapter: AC100-240), DC5 (USB bus power) |
Location |
Indoor |
Power Consumption (W) |
Standby: 0.4 (at 100V AC), 0.2 (at 24V DC), 0.1 (at 5V DC), Maximum operation: 16 (at 100V AC), 15 (at 24V DC), 1.8 (at 5V DC) |
Operation Ambient Temperature (°C) |
0 to 40 |
Rated Power Consumption (W) |
Standby: 0.4 (at 100 VAC) / Maximum operation: 16 (at 100 VAC) |
External Output |
Number of contacts: 8 points, contact specification: no-voltage contact output A contact, contact rating: DC30V / 3A, failure rate P level: DC5V / 10mA (switching frequency 120 times / min), applicable wire diameter: single wire: Φ0.4 mm ~ Φ1.2 mm (AWG26 to AWG18) Stranded wire: 0.2 mm2 to 0.75 mm2 (AWG24 to AWG16) Wire diameter Φ0.18 mm or more |
Main Unit Dimensions (W x D x H) (mm) |
117x100x28 (excluding rubber feet) |
Supported OS |
Windows(R)7(32bit, 64bit), Windows(R)8(32bit, 64bit), Windows(R)8.1(32bit, 64bit), Windows(R)10(32bit, 64bit), Windows 11(64bit)/Windows Server(R)2008 R2, Windows Server(R)2012, Windows Server(R)2012 R2/Windows Server(R)2016, Windows Server(R)2019, Windows Server(R)2022 |
