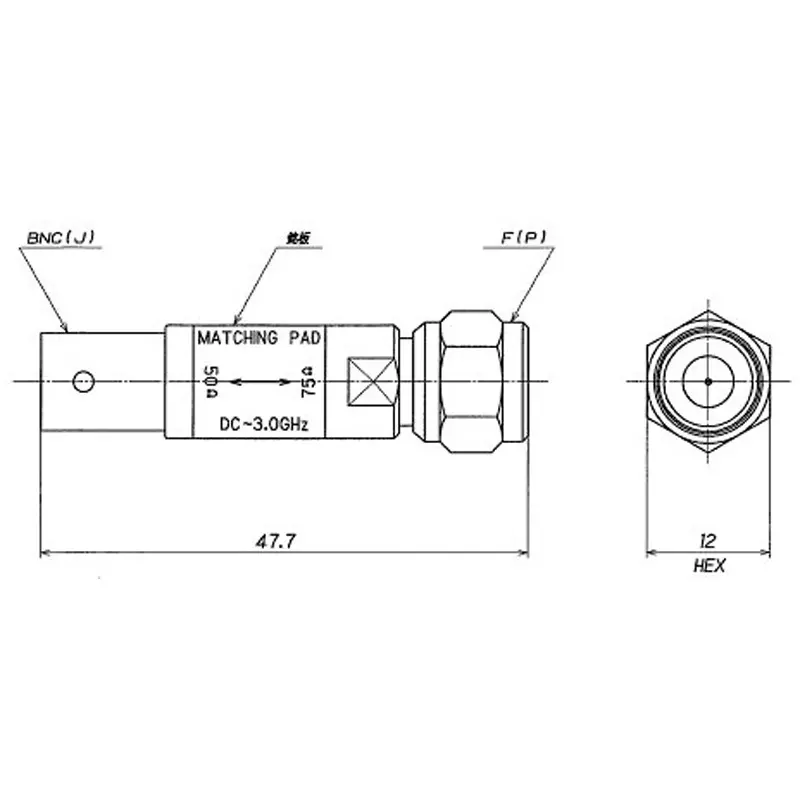

| Type of Product | Impedance Converter |
| Connector Type | 50Ω：BNC(J), 75Ω：F(P) |
| Model No | PD546 |
| Country of Origin | Japan |
Type of Product |
Impedance Converter |
Connector Type |
50Ω：BNC(J), 75Ω：F(P) |
Model No |
PD546 |
Country of Origin |
Japan |
Monotaro ID |
2290131 |
Type |
Impedance converter |
Name of Manufacturer/Packer/Importer |
Stack Electronics Co., Ltd. |
Part No |
67-5756-52 |
Import Country |
Direct Import from Japan |
Specifications |
●Conversion method: Resistive conversion type●Frequency range: DC to 3GHz●Insertion loss: 5.7dB±0.5dB (DC to 2GHz), 5.7dB±0.7dB (2 to 3GHz)●VSWR: 1.2 or less (DC to 2GHz)●1.25 or less (2 to 3GHz)●Maximum input power: 0.5W●External plating: Ni plating●Center contact: BNC side: Au plating, F side: Ag plating●*Design and specifications are subject to change without notice. |
Characteristic impedance (Ω) |
50-75 |
Adapter Type |
BNC type-F type |
