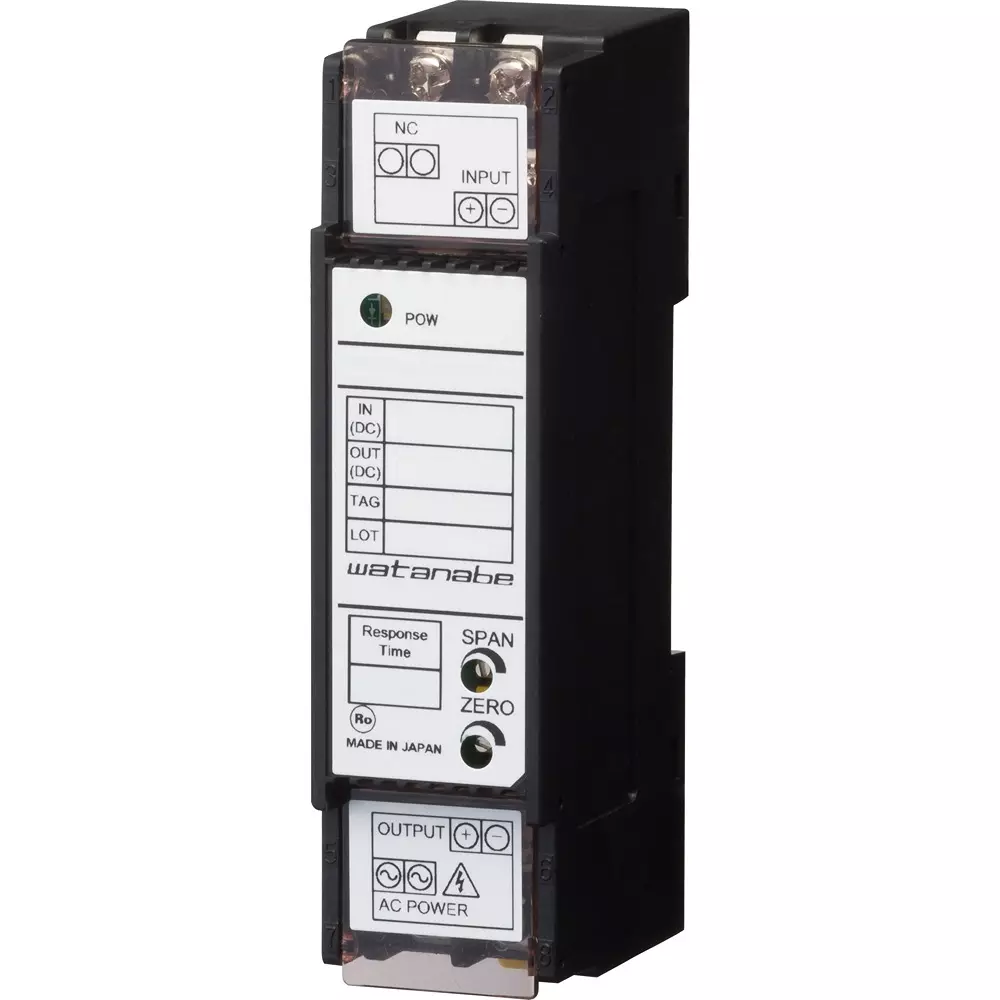

| Type of Product | Thermocouple Temperature Converter |
| Model No | TZ-1CA-K55 |
| Accuracy | (Standard) ±0.2% FS (at 25°C ±2°C) |
| Power Consumption | (Current) 30 mA or less |
Type of Product |
Thermocouple Temperature Converter |
Model No |
TZ-1CA-K55 |
Accuracy |
(Standard) ±0.2% FS (at 25°C ±2°C) |
Power Consumption |
(Current) 30 mA or less |
Country of Origin |
Japan |
Monotaro ID |
42587293 |
Insulation Resistance |
100 MΩ or more (DC 500 V) (Between Input, Output and Power Terminals) |
Name of Manufacturer/Packer/Importer |
Watanabe Electric Industry Co., Ltd |
Mass (g) |
About 80 |
Import Country |
Direct Import from Japan |
Specifications |
Allowable input range: -50 to +150% fs, Power supply fluctuation: ±0.06% fs, Burnout: Upward (135±15% fs), Zero/span adjustment range: ±5% fs |
Outer Dimensions (mm) |
112(H) x 25(W) x 41(D) (with TCJ sensor installed) |
Load Resistance |
(Tolerance) 2 kΩ or more, 10 kΩ or more for negative output |
Case Material |
ABS Resin (UL94V-2) |
Temperature Characteristics |
±0.02% fs/℃ |
Case Color |
Black |
Operating Temperature / Humidity Range |
-5 to +50℃ 90% RH or less (non-condensing) |
Power Supply Voltage |
AC 100 V -240±10% |
Storage Temperature/Humidity Range |
-10 to +70℃ 60% RH or less (non-condensing) |
Load Fluctuation |
±0.06% fs |
Vibration Resistance |
Frequency: 10 to 55 Hz, Single Amplitude: 0.15 mm, 5 min x 10 sweeps in each of X, Y, and Z directions |
