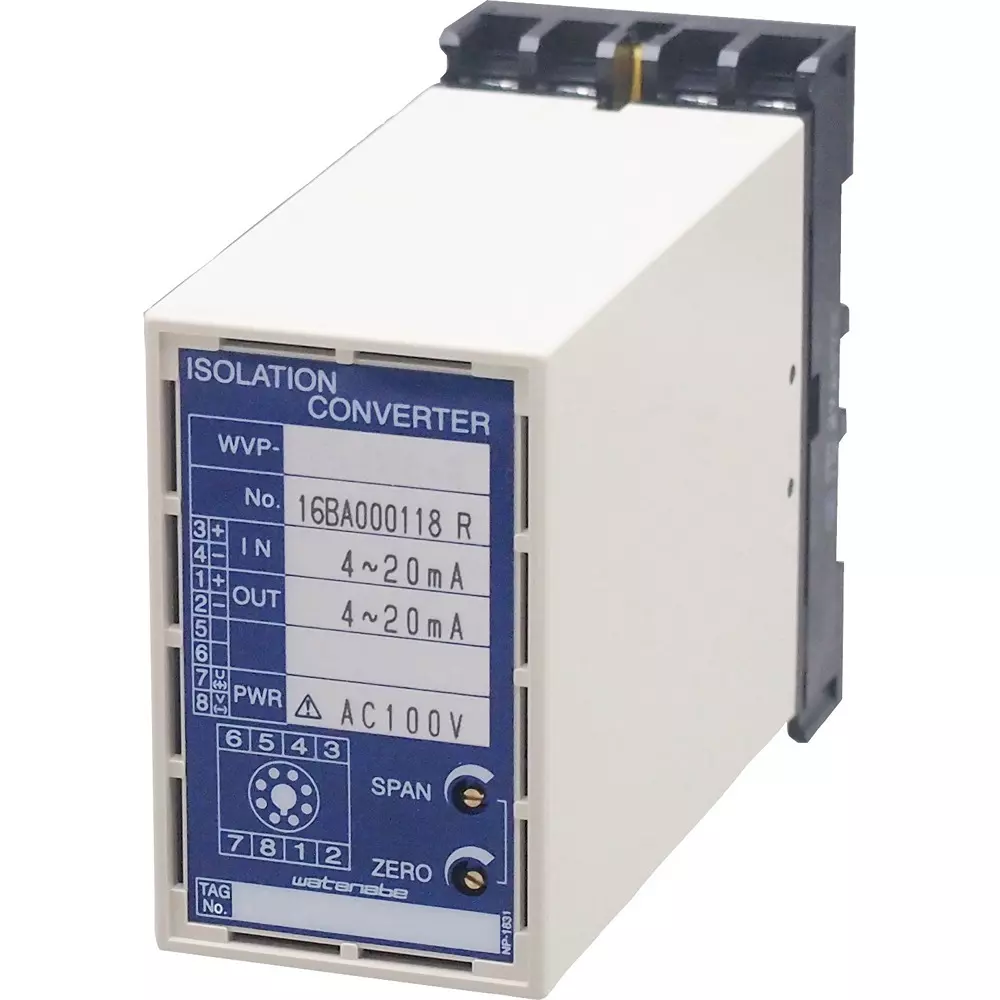

| Type of Product | Load Cell Converter |
| Model No | WVP-LCS-31J-5 |
| Accuracy | (Standard) ±0.1% fs (at 23°C) |
| Power Consumption | (Current) Approximately 4 VA |
Type of Product |
Load Cell Converter |
Model No |
WVP-LCS-31J-5 |
Accuracy |
(Standard) ±0.1% fs (at 23°C) |
Power Consumption |
(Current) Approximately 4 VA |
Country of Origin |
Japan |
Monotaro ID |
42454564 |
Insulation Resistance |
100 MΩ or more (DC 500 V) (between input, output and power terminals) |
Name of Manufacturer/Packer/Importer |
Watanabe Electric Industry Co., Ltd |
Mass (g) |
About 400 |
Import Country |
Direct Import from Japan |
Specifications |
●Zero/span adjustment range: 0 to 80% fs (using a multi-turn trimmer) ●Remote tare adjustment function: Operated by a potentiometer (can be connected between terminals 4 to 6. Rated resistance 10 kΩ). The variable range is within the zero adjustment range ●Wiring part: M3.5 sems screw part of the base socket (tightening torque 0.8 N m) |
Outer Dimensions (mm) |
90(H)x51(W)x136(D) |
Load Resistance |
(Tolerance) 10 kΩ or more |
Case Material |
Heat-resistant ABS resin (UL94V-0) |
Function |
Insulation |
Response Speed |
Approximately 25 ms (0 to 90%) |
Temperature Characteristics |
±0.02%fs/℃ |
Case Color |
Ivory color |
Structure |
Plug-in (consists of a main body and a socket) |
Operating Temperature / Humidity Range |
-5℃ to +55℃ 90%RH or less (non-condensing) |
Power Supply Voltage |
AC 220 V ±10%(50/60Hz) |
Type of Sign |
DIN Rail Mounting or Wall Mounting |
RoHS Directive |
Correspondence |
Insulation Resistance (MOhm) |
100 or more (DC 500 V) (between input, output and power terminals) |
Input Voltage (V) |
DC 5 to 60 mA Up to four 350Ω load cells can be connected in parallel. ・Up to two 120Ω load cells can be connected in parallel. |
