Ships within 25 days
View
View
View
View

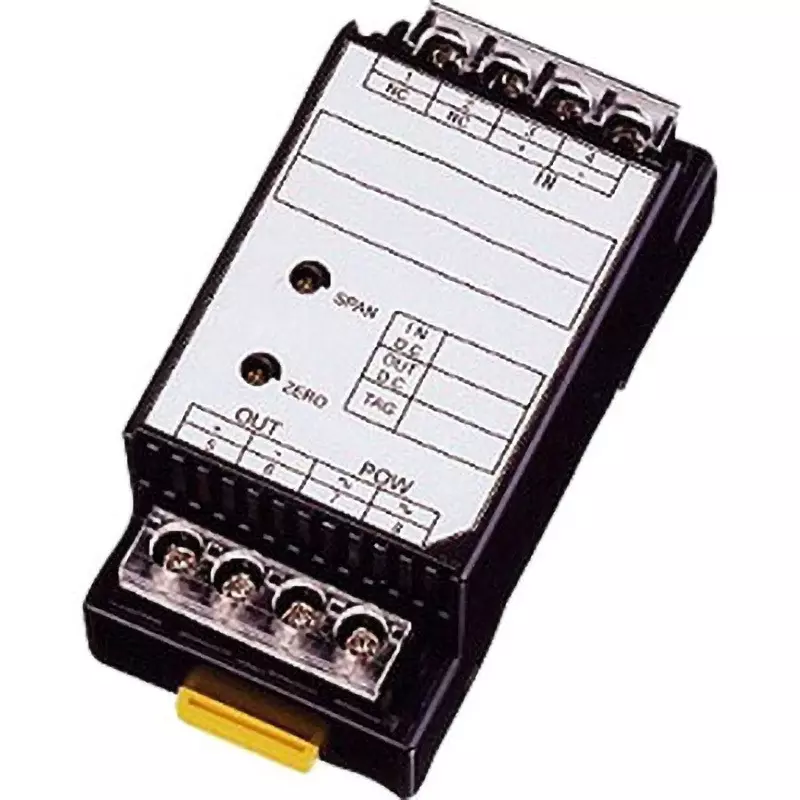

| Type of Product | Load Cell Converter |
| Model No | TW-3S-003 |
| Accuracy | (Standard) ±0.25% fs (at 25°C ±2°C) |
| Power Consumption | (Current) 120 mA or less |
Type of Product |
Load Cell Converter |
Model No |
TW-3S-003 |
Accuracy |
(Standard) ±0.25% fs (at 25°C ±2°C) |
Power Consumption |
(Current) 120 mA or less |
Country of Origin |
Japan |
Included Components |
Terminal cover, detachable 6P connector |
Monotaro ID |
42593067 |
Insulation Resistance |
100 MΩ or more (DC 500 V) (between input, output and power terminals) |
Name of Manufacturer/Packer/Importer |
Watanabe Electric Industry Co., Ltd |
Mass (g) |
About 120 |
Import Country |
Direct Import from Japan |
Outer Dimensions (mm) |
98(H)x48(W)x41(D) |
Load Resistance |
(Tolerance) 2 kΩ or more |
Case Material |
PBT resin (UL94V-0) |
Response Speed |
About 10 ms (0 to 90%) |
Temperature Characteristics |
±0.03%fs/℃ |
Case Color |
Black |
Operating Temperature / Humidity Range |
-5℃ to +50℃ 90%RH or less (non-condensing) |
Power Supply Voltage |
DC 24 V ±10% |
RoHS Directive |
Correspondence |
Insulation Resistance (MOhm) |
100 or more (DC 500 V) (between input, output and power terminals) |
Input Voltage (V) |
(Load cell) 10 |
