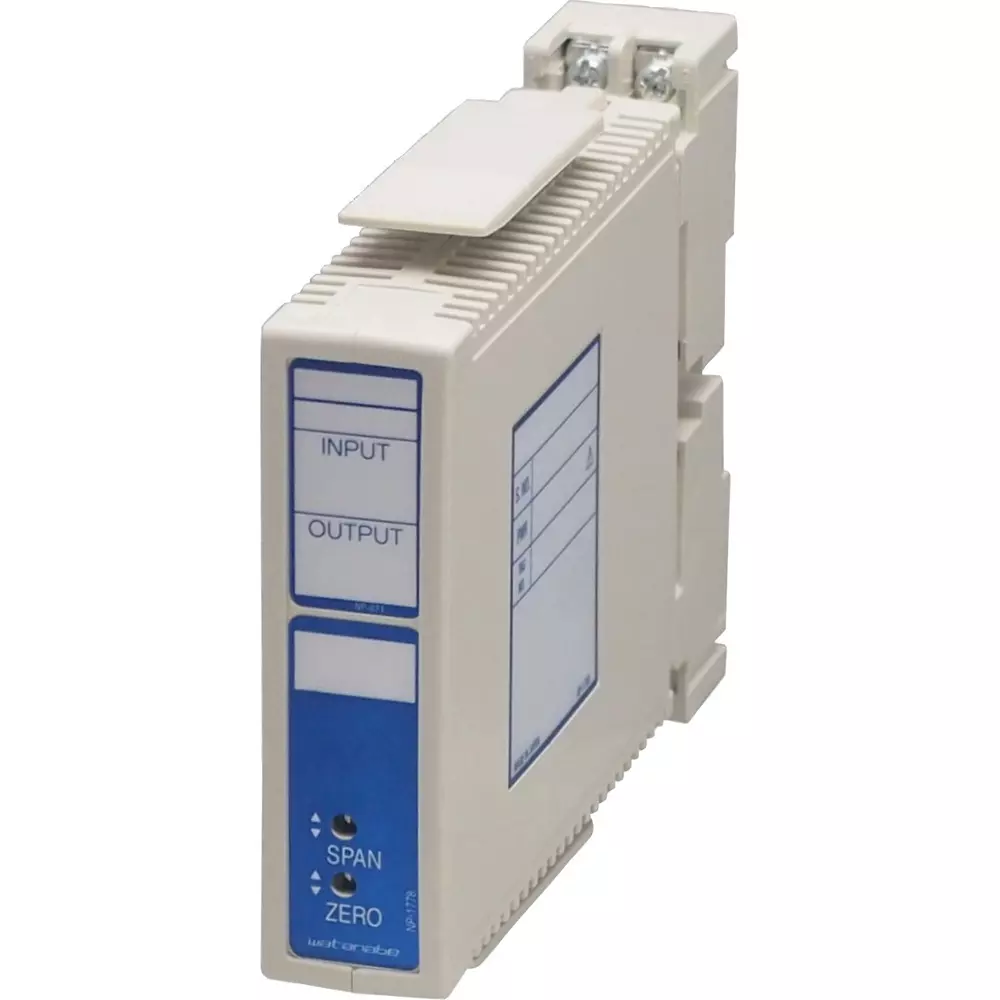

| Type of Product | Isolation Converter |
| Model No | WGP-DS-11P-1 |
| Accuracy | (Standard) ±0.1% fs (at 23°C) |
| Power Consumption | (Current) Approximately 4 VA |
Type of Product |
Isolation Converter |
Model No |
WGP-DS-11P-1 |
Accuracy |
(Standard) ±0.1% fs (at 23°C) |
Power Consumption |
(Current) Approximately 4 VA |
Country of Origin |
Japan |
Monotaro ID |
42096715 |
Storage Temperature Range |
-10 to +60℃ |
Insulation Resistance |
100 mΩ or more (DC 500 V) (between input, output and power terminals) |
Name of Manufacturer/Packer/Importer |
Watanabe Electric Industry Co., Ltd |
Mass (g) |
About 200 |
Import Country |
Direct Import from Japan |
Specifications |
Zero/span adjustment range: ±10% fs (15-turn trimmer), power supply voltage effect: ±0.1% fs (within rated voltage), wiring part: M3.5 sems screw part of base socket (tightening torque 0.8 N m) |
Outer Dimensions (mm) |
105(H)×25.6(W)×136.5(D) |
Load Resistance |
(Allowable) 5 kΩ or more |
Case Material |
ABS resin, flame retardant grade UL94V-0 |
Response Speed |
Approximately 25 ms (0 to 90%) |
Temperature Characteristics |
±0.015%fs/℃ |
Case Color |
Ivory color |
Structure |
Plug-in (consists of a main body and a socket) |
Operating Temperature / Humidity Range |
-5℃ to +55℃ 90%RH or less (non-condensing) |
Power Supply Voltage |
AC 100 to 120 V ±10%(50/60 Hz) |
Type of Sign |
DIN rail mounting or wall mounting |
RoHS Directive |
Correspondence |
Altitude (m) |
(Rating) 2000 or less |
Applicable Standard |
EN61326-1, EN61010-1, EN IEC 63000, Installation Category: II, Pollution Degree: 2 |
Input Resistance |
1 mΩ |
