Ships within 25 days
View
View
View
View

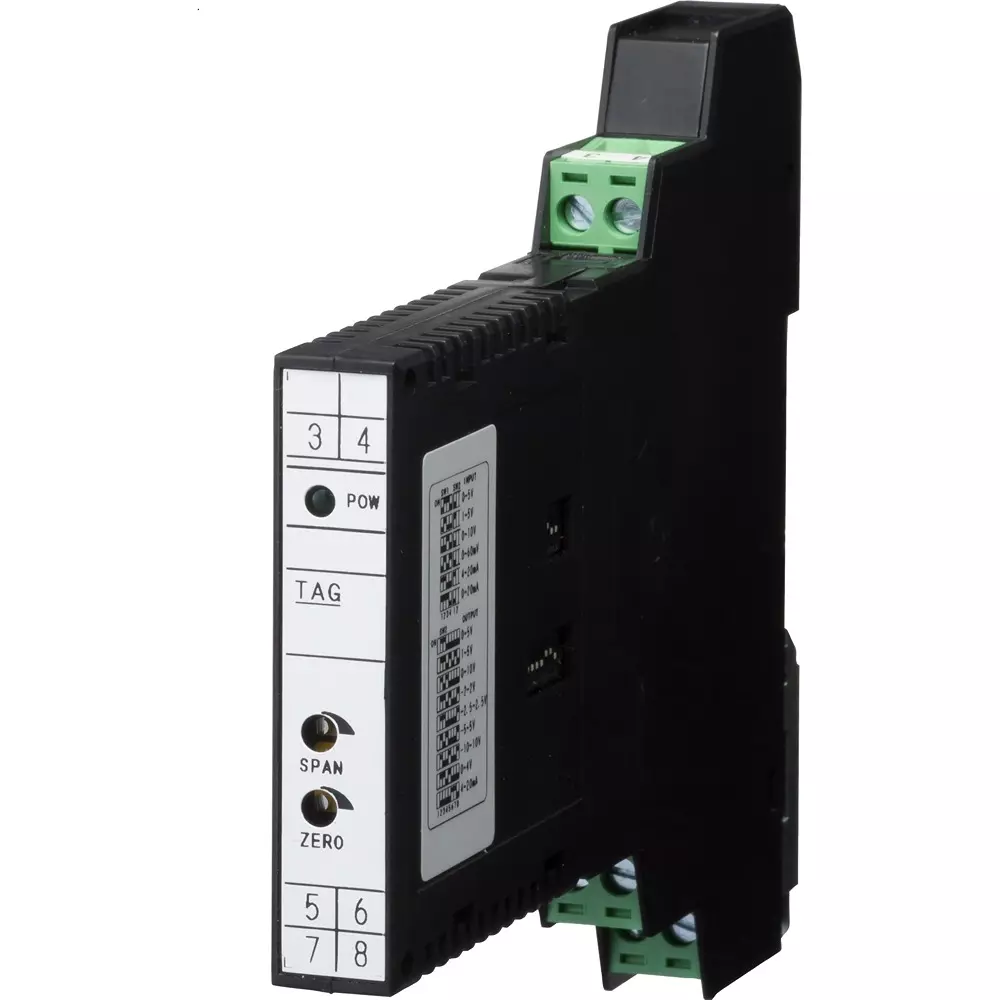

| Type of Product | Isolation Converter |
| Model No | TH-5X-62L |
| Accuracy | (Standard) ±0.1% fs (at 25°C ±2°C) |
| Power Consumption | (current) 50 mA or less |
Type of Product |
Isolation Converter |
Model No |
TH-5X-62L |
Accuracy |
(Standard) ±0.1% fs (at 25°C ±2°C) |
Power Consumption |
(current) 50 mA or less |
Country of Origin |
Japan |
Included Components |
Power jumper x 2 (use when connecting multiple units) |
Monotaro ID |
42067778 |
Insulation Resistance |
100 mΩ or more (DC 500 V) (between input, output and power terminals) |
Name of Manufacturer/Packer/Importer |
Watanabe Electric Industry Co., Ltd |
Mass (g) |
About 80 |
Import Country |
Direct Import from Japan |
Specifications |
●Input tolerance: -50 to +150% fs●Power supply fluctuation: ±0.06% fs●Zero/span adjustment range: ±5% fs |
Outer Dimensions (mm) |
103(H)×12.5(W)×115(D) |
Load Resistance |
(Tolerance) 4 kΩ or more, negative output is 10 kΩ or more |
Case Material |
PC resin (UL94V-2) |
Response Speed |
Approximately 50 ms (0 to 90%) |
Temperature Characteristics |
±0.02%fs/℃ |
Case Color |
Black |
Operating Temperature / Humidity Range |
-5℃ to +50℃ 90%RH or less (non-condensing) |
Power Supply Voltage |
DC 24 V ±10% |
Storage Temperature/Humidity Range |
-10 to +70℃ 60%RH or less (non-condensing) |
Load Fluctuation |
±0.06%fs |
Applicable Standard |
TH-5X (24V DC power supply), EN61326-1 EMI: class A, EMS: industrial facilities (applies when input/output signal lines are 30m or less), EN IEC 63000 |
Insulation Resistance (MOhm) |
100 or more (DC 500 V) (between input, output and power terminals) |
