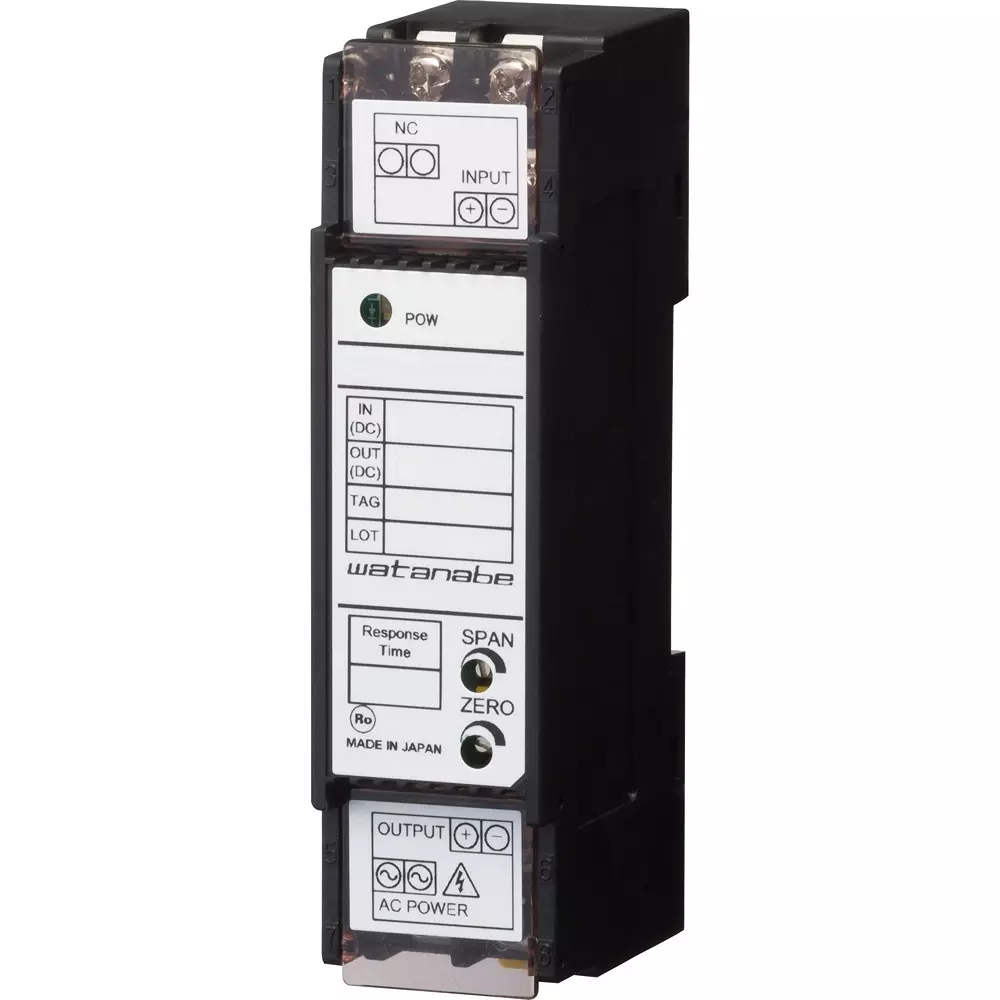

| Type of Product | Isolation Converter |
| Model No | TZ-5XA-13H |
| Accuracy | (Standard) ±0.1% fs (at 25°C ±2°C) |
| Power Consumption | (current) 30 mA or less |
Type of Product |
Isolation Converter |
Model No |
TZ-5XA-13H |
Accuracy |
(Standard) ±0.1% fs (at 25°C ±2°C) |
Power Consumption |
(current) 30 mA or less |
Country of Origin |
Japan |
Monotaro ID |
42586198 |
Insulation Resistance |
100 mΩ or more (DC 500 V) (between input, output and power terminals) |
Name of Manufacturer/Packer/Importer |
Watanabe Electric Industry Co., Ltd |
Mass (g) |
About 80 |
Import Country |
Direct Import from Japan |
Specifications |
●Input tolerance: -50 to +150% fs●Power supply fluctuation: ±0.06% fs●Zero/span adjustment range: ±5% fs |
Outer Dimensions (mm) |
98(H)×25(W)×41(D) |
Load Resistance |
(Tolerance) 4 kΩ or more, negative output is 10 kΩ or more |
Case Material |
ABS resin (UL94V-2) |
Response Speed |
Approx. 1 ms (0 to 90%) |
Temperature Characteristics |
±0.02%fs/℃ |
Case Color |
Black |
Operating Temperature / Humidity Range |
-5℃ to +50℃ 90%RH or less (non-condensing) |
Power Supply Voltage |
DC 24 V ±10% |
Storage Temperature/Humidity Range |
-10 to +70℃ 60%RH or less (non-condensing) |
Load Fluctuation |
±0.06%fs |
Vibration Resistance |
Frequency: 10 to 55 Hz, single amplitude: 0.15 mm, 5 min x 10 sweeps in each of X, Y, and Z directions |
Applicable Standard |
EN61326-1, EMI: Class A, EMS: Industrial facilities (applicable when input/output signal lines are 30m or less), EN IEC 63000 |
Insulation Resistance (MOhm) |
100 or more (DC 500 V) (between input, output and power terminals) |
