Ships within 25 days
View
View
View
View

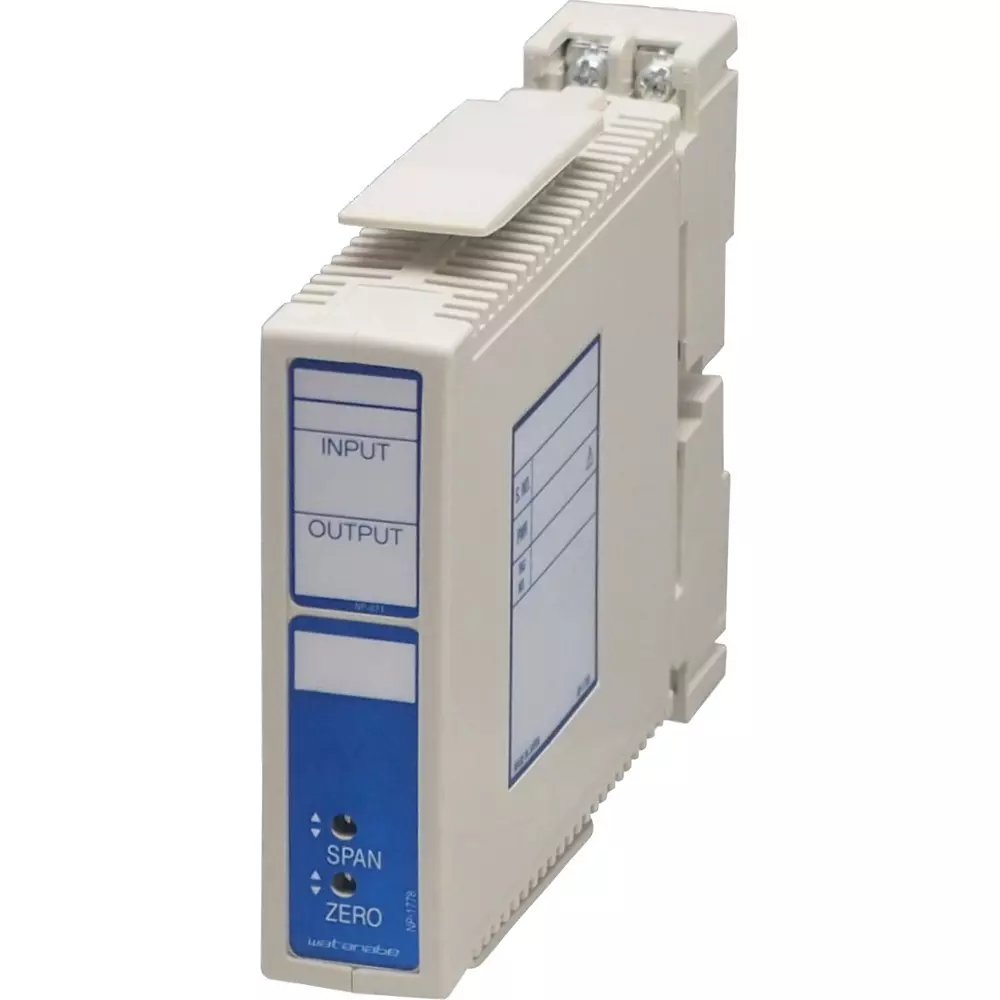

| Type of Product | Potentiometer Converter |
| Model No | WGP-MS-22L-8 |
| Accuracy | (Standard) ±0.1% fs (at 23°C) |
| Power Consumption | (Current) Approx. 90 mA |
Type of Product |
Potentiometer Converter |
Model No |
WGP-MS-22L-8 |
Accuracy |
(Standard) ±0.1% fs (at 23°C) |
Power Consumption |
(Current) Approx. 90 mA |
Country of Origin |
Japan |
Monotaro ID |
42141305 |
Name of Manufacturer/Packer/Importer |
Watanabe Electric Industry Co., Ltd |
Mass (g) |
About 200 |
Import Country |
Direct Import from Japan |
Specifications |
●Power supply voltage influence: ±0.1% fs (within rated voltage) ●Connection point: M3.5 sems screw part of base socket (tightening torque 0.8 N·m) ●Span adjustment range: 100 to 200 Ω ●Zero adjustment range: 0 to 100 Ω |
Outer Dimensions (mm) |
105x25.6x136.5 |
Load Resistance |
(Tolerance) 500 Ω or more |
Case Material |
Heat-Resistant ABS Resin (UL94V-0) |
Function |
Insulation |
Response Speed |
Approximately 25 ms (0 to 90%) |
Temperature Characteristics |
±0.015%fs/℃ |
Case Color |
Ivory color |
Structure |
Thin plug-in (consists of a main body and a socket) |
Operating Temperature / Humidity Range |
-5 to +55℃ 90%RH or less (non-condensing) |
Power Supply Voltage |
DC 110 V ±10% |
Type of Sign |
DIN Rail Mounting or Wall Mounting |
Insulation Resistance (MOhm) |
100 MΩ or more (DC 500 V) (Between Input, Output and Power Terminals) |
