| Type of Product | Pulse Isolator |

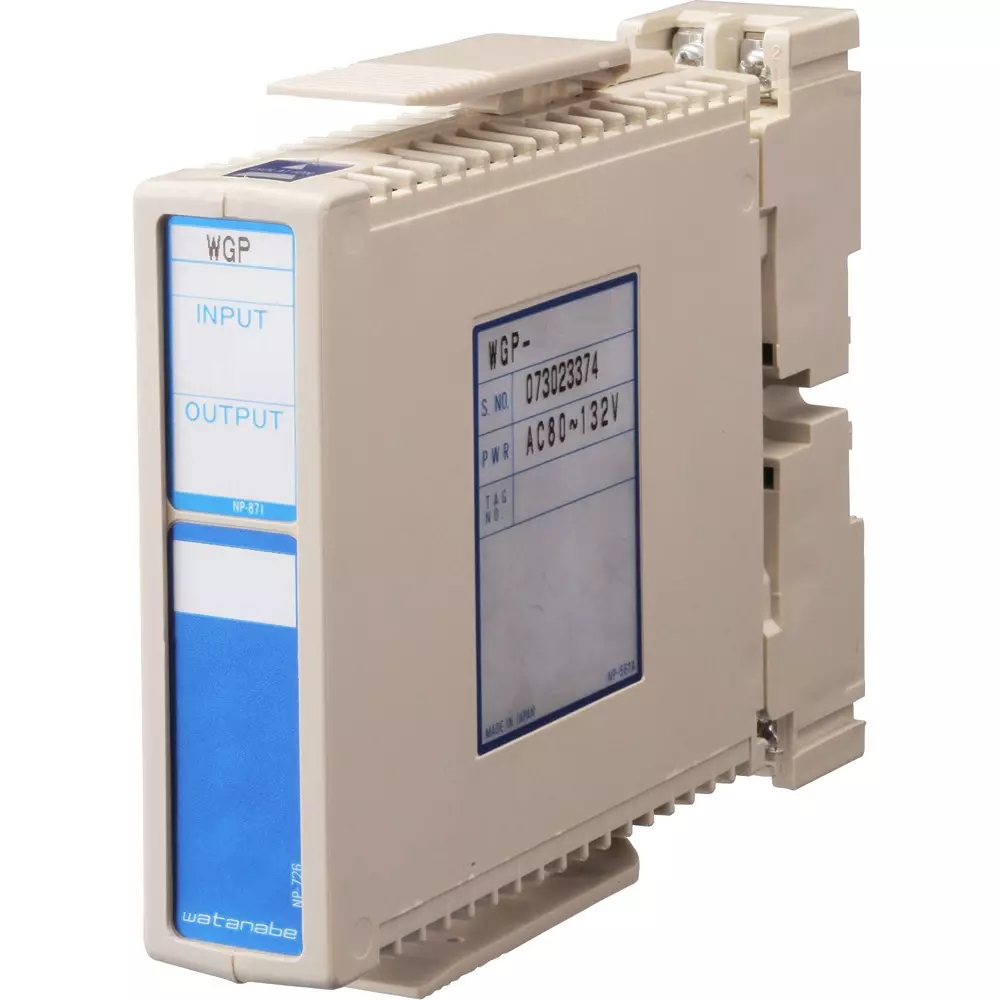

| Model No | WGP-FZ-14FK-2 |
| Power Consumption | (Current) Approx. 4.5 VA |
| Country of Origin | Japan |
Type of Product |
Pulse Isolator |
Model No |
WGP-FZ-14FK-2 |
Power Consumption |
(Current) Approx. 4.5 VA |
Country of Origin |
Japan |
Monotaro ID |
42117137 |
Insulation Resistance |
100 MΩ or more (DC 500 V) (between input, output and power terminals) |
Name of Manufacturer/Packer/Importer |
Watanabe Electric Industry Co., Ltd |
Mass (g) |
About 200 |
Frequency (Hz) |
Input/output: DC to 100 kHz (any frequency), Output: DC to 100 kHz (any frequency) |
Import Country |
Direct Import from Japan |
Specifications |
Wiring location: M3.5 SEMS screw part of base socket (tightening torque 0.8N・m) |
Outer Dimensions (mm) |
105(H)x25.6(W)x136.5(D) |
Case Material |
Heat-resistant ABS resin (UL94V-0) |
Case Color |
Ivory color |
Structure |
Thin plug-in (consists of a main body and a socket) |
Operating Temperature / Humidity Range |
-5℃ to +55℃ 90%RH or less (non-condensing) |
Power Supply Voltage |
AC 170 to 264 V (rated 200 to 240) V (50/60Hz) |
Type of Sign |
DIN Rail Mounting or Wall Mounting |
RoHS Directive |
Correspondence |
Input Resistance |
20 kΩ or more |
1st Input Signal |
Voltage pulse or ON-OFF pulse |
Compatible Products |
None |
Withstand voltage (V / min) |
AC 2000 (between input, output 1, output 2, and power supply terminals) |
Waveform |
Sine wave or square wave (DUTY 25 to 75%) |
Output Waveform |
Voltage pulse output, open collector output, and each one-shot output (selectable with DIP switch) |
Input Frequency (Hz) |
100 k(MAX) |
