| Type of Product | Pulse Period |

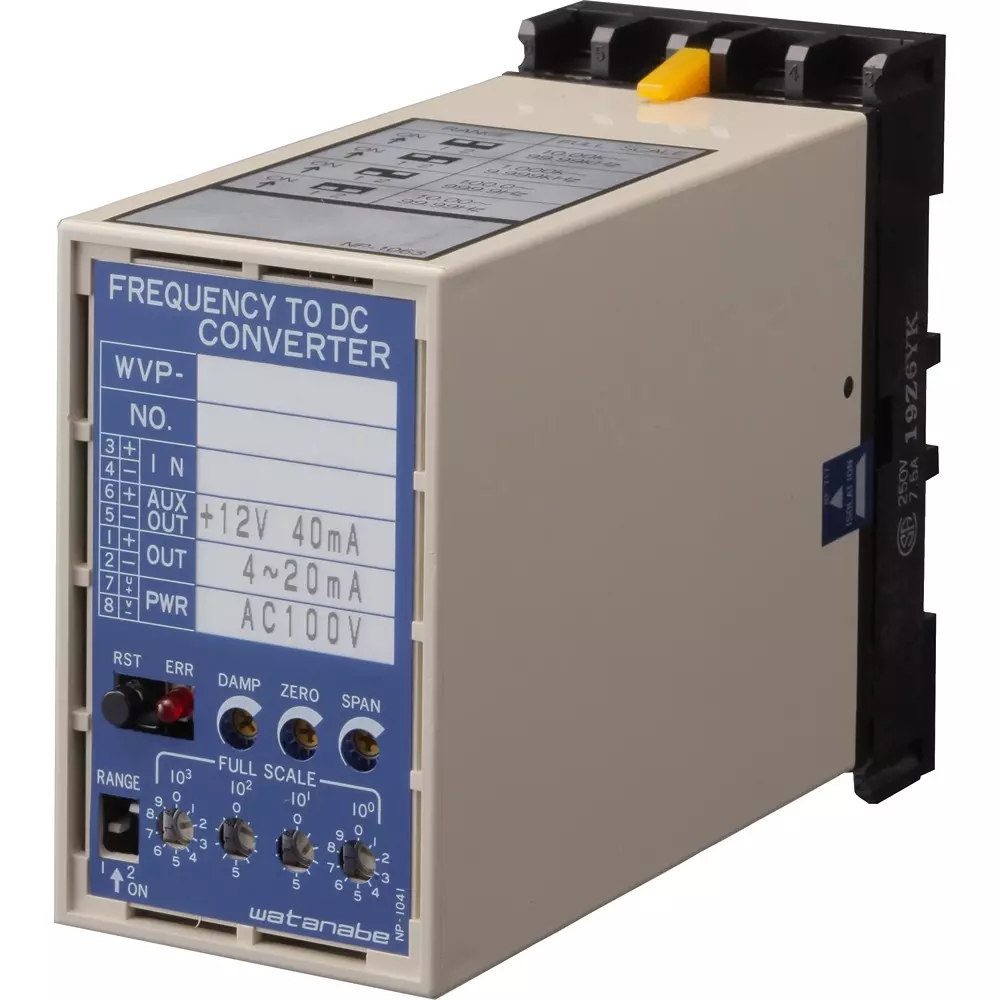

| Model No | WVP-FDH-90G-2 |
| Country of Origin | Japan |
| Monotaro ID | 42412363 |
Type of Product |
Pulse Period |
Model No |
WVP-FDH-90G-2 |
Country of Origin |
Japan |
Monotaro ID |
42412363 |
Insulation Resistance |
100 MΩ or more (DC 500 V) (between input, output and power terminals) |
Name of Manufacturer/Packer/Importer |
Watanabe Electric Industry Co., Ltd |
Mass (g) |
About 400 |
Frequency (Hz) |
Input: DC to 100 kHz (any frequency), Output: DC to 100 kHz (one-shot output: Max. 5Hz) *Normal output: Max. 10Hz |
Import Country |
Direct Import from Japan |
Specifications |
●Division setting device: 4-digit dip rotary switch ●Division setting range (optional): (number of input pulses) x 1/x (x = 2 to 9999) ●Wiring part: M3.5 sems screw part of base socket (tightening torque 0.8 N m) |
Outer Dimensions (mm) |
97(H)x51(W)x126(D) |
Case Material |
Heat-resistant ABS resin (UL94V-0) |
Case Color |
Ivory color |
Structure |
Plug-in (consists of a main body and a socket) |
Operating Temperature / Humidity Range |
-5℃ to +55℃ 90%RH or less (non-condensing) |
Power Supply Voltage |
AC 200 V ±10%(50/60Hz) |
Type of Sign |
DIN Rail Mounting or Wall Mounting |
RoHS Directive |
Correspondence |
Withstand voltage (V / min) |
AC 2000 (between input-output-power supply terminals) |
Insulation Resistance (MOhm) |
100 or more (DC 500 V) (between input, output and power terminals) |
Power for Sensor |
DC 12 V±5%, 25 mA |
Power Consumption (VA) |
(current) approx. 4 |
Frequency (kHz) |
Input: DC to 100 (any frequency), Output: DC to 100 (one-shot output is Max. 5Hz) *Normal output is Max. 10Hz |
Reset |
Automatic reset within 0.5 seconds after power-on |
Waveform |
Sine wave or square wave (DUTY 25 to 75%) |
Output Waveform |
No-voltage dry contact output: normal and one-shot output (selectable with dip switch) |
