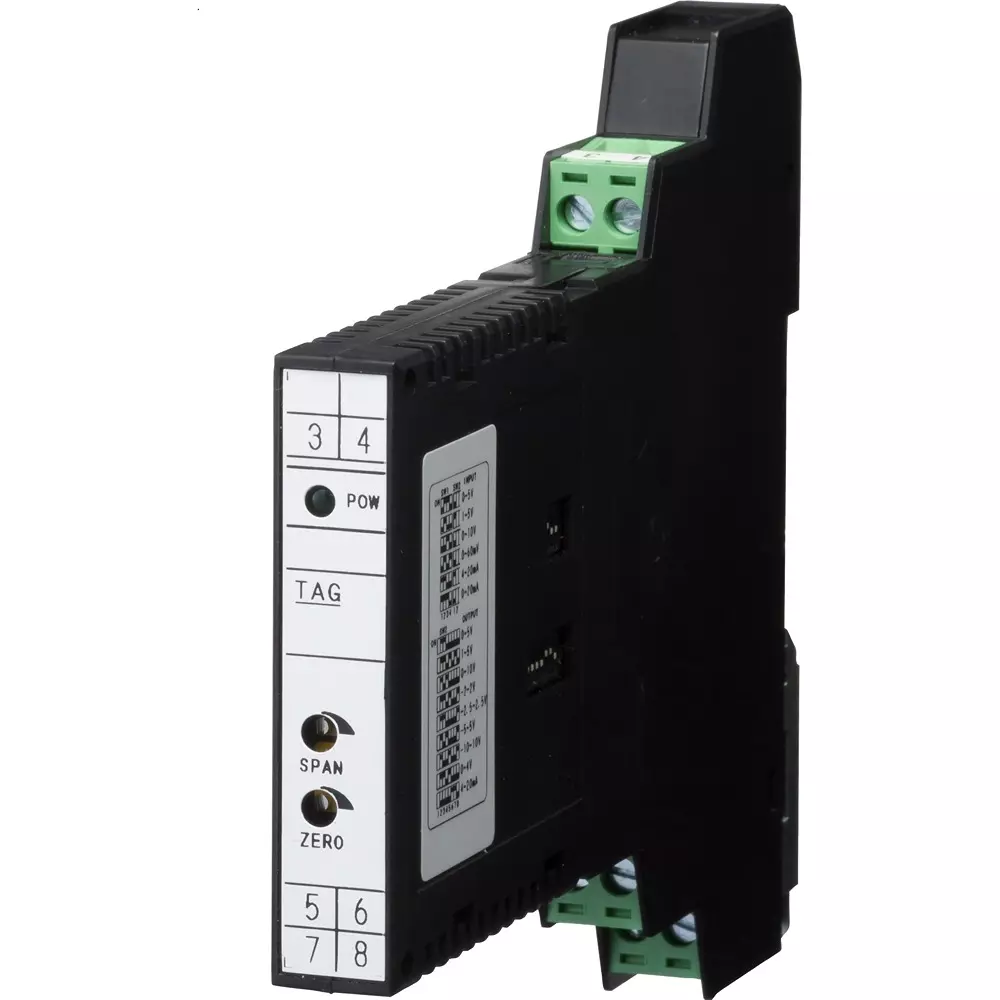

| Type of Product | Thermocouple Temperature Converter |
| Model No | TH-5C-T0A |
| Accuracy | (Standard) ±0.2% FS (at 25°C ±2°C) |
| Power Consumption | (Current) 50 mA or less |
Type of Product |
Thermocouple Temperature Converter |
Model No |
TH-5C-T0A |
Accuracy |
(Standard) ±0.2% FS (at 25°C ±2°C) |
Power Consumption |
(Current) 50 mA or less |
Country of Origin |
Japan |
Included Components |
TCJ Sensor, Power Jumper x 2 |
Monotaro ID |
42069476 |
Insulation Resistance |
100 MΩ or more (DC 500 V) (Between Input, Output and Power Terminals) |
Name of Manufacturer/Packer/Importer |
Watanabe Electric Industry Co., Ltd |
Mass (g) |
About 80 |
Import Country |
Direct Import from Japan |
Specifications |
Disconnection detection: Upward (135% ±15% fs), Zero/span adjustment range: ±5% fs |
Outer Dimensions (mm) |
117(H) x 12.5(W) x 115(D) (with TCJ sensor) |
Load Resistance |
(Tolerance) 550 Ω or less |
Case Material |
PC Resin (UL94V-2) |
Function |
Burnout: Swing up |
Response Speed |
Approximately 200 ms (0 to 90%) |
Temperature Characteristics |
±0.02% fs/℃ |
Case Color |
Black |
Operating Temperature / Humidity Range |
-5 to +50℃ 90% RH or less (non-condensing) |
Power Supply Voltage |
DC 24 V ±10% |
Storage Temperature/Humidity Range |
-10 to +70℃ 60% RH or less (non-condensing) |
Load Fluctuation |
±0.06% fs |
