| Type of Product | Panel Ventilation Fan |
| Model No | PF-085-2 |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nitto Kogyo Co., Ltd. |
Type of Product |
Panel Ventilation Fan |
Model No |
PF-085-2 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Suitable For |
For PH-50F-2 / 100F-2 / 200F-2 |
Pack of |
1 Piece |
Import Country |
Direct Import from Japan |
Monotaro ID |
45191386 |
Maximum Airflow (m³/min) |
0.80/0.95 |
Maximum Static Pressure (Pa) |
41/59 |
Material (Fan Blade) |
Resin |
Thickness (mm) |
38 |
Frame Material |
Aluminum die-cast |
Square Drives |
80 |
Rated Voltage (V) |
AC200 |
RoHS Directive |
Correspondence |
Rated Current (A) |
0.07/0.06 |
Noise Level Db(A) |
About 32/36 |
Included Components |

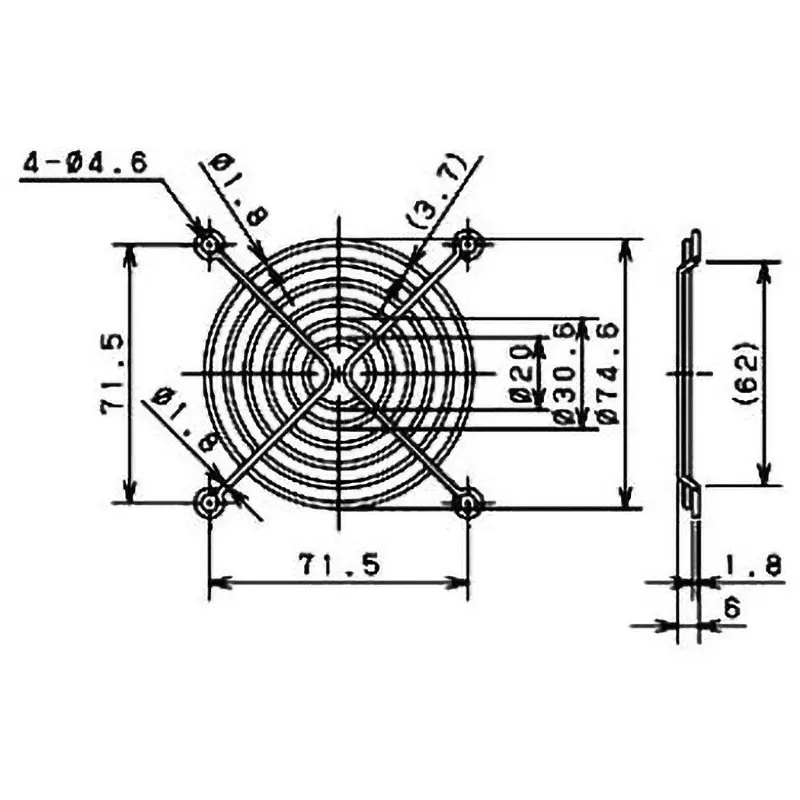

Finger guard, mounting screws, instruction manual, plug cord |
Rated Frequency (Hz) |
50/60 |
Operating Temperature (c) |
-10 to +70 |
Rated Power Consumption (W) |
46304 |
Input terminals |
Lead wire (0.3m) |
