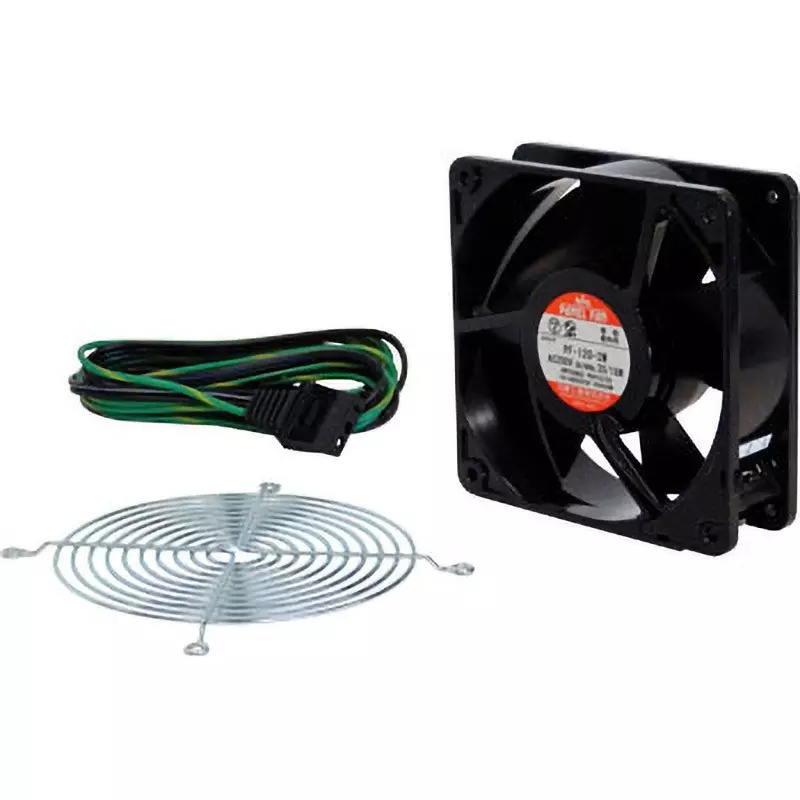

| Type of Product | Ventilation Fan |
| Model No | PF-120-2M |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nitto Kogyo Co., Ltd. |
Type of Product |
Ventilation Fan |
Model No |
PF-120-2M |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Pack of |
1 Piece |
Import Country |
Direct Import from Japan |
Monotaro ID |
45187974 |
Maximum Airflow (m³/min) |
2.4/2.7 |
Maximum Static Pressure (Pa) |
74/83 |
Material (Fan Blade) |
Steel sheet |
Thickness (mm) |
38 |
Frame Material |
Aluminum die-cast |
Square Drives |
119.5 |
Rated Voltage (V) |
AC200 |
RoHS Directive |
Correspondence |
Rated Current (A) |
0.13/0.11 |
Noise Level Db(A) |
About 42/46 |
Included Components |
Finger guard, plug cord (2m, excluding lead wire type), mounting screw, instruction manual |
Rated Frequency (Hz) |
50/60 |
Operating Temperature (c) |
-10 to +60 |
Rated Power Consumption (W) |
20/18 |
Input terminals |
3 terminals (with ground) |
