| Type of Product | San Ace AC Fan |
| Model No | 109-602 |
| Country of Origin | Japan |
| Type | AC fan |
Type of Product |
San Ace AC Fan |
Model No |
109-602 |
Country of Origin |
Japan |
Type |
AC fan |
Name of Manufacturer/Packer/Importer |
Sanyo Denki Co., Ltd. |

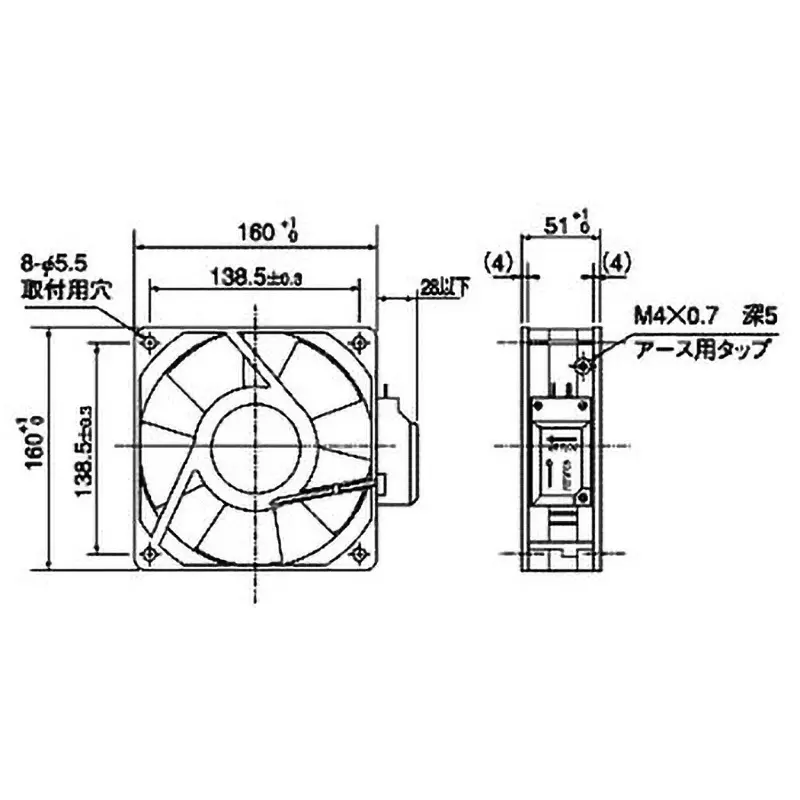

Size (mm) |
160x160 |
Pack of |
1 Pcs |
Shape |
Square |
Frequency |
50/60 Hz |
Motor |
Capacitor motor |
Import Country |
Direct Import from Japan |
Input Voltage (V) |
AC200 |
Input (W) (50/60Hz) |
37.5/33 |
Monotaro ID |
37651415 |
Maximum Airflow (m³/min) |
7.2/8.5(50Hz/60Hz) |
Working Voltage Range |
Voltage ±10% for each model number |
Mass (g) |
1100 |
Maximum Static Pressure (Pa) |
156.8/166.6(50Hz/60Hz) |
Operating Temperature Range |
-30 to +60°C |
Input Method |
Terminal |
Quick Type |
Standard speed |
Sound Pressure Level (dB) |
56/60(50Hz/60Hz) |
Material (Fan Blade) |
Resin (flame retardant grade UL94V-1) |
Thickness (mm) |
51 |
Current (A) (50/60Hz) |
0.23/0.18 |
Frame Material |
Aluminum |
Protection method |
Samar protect |
