| Type of Product | San Ace Ac Fan Motor |
| Model No | 109-311 |
| Country of Origin | Japan |
| Type | AC fan |
Type of Product |
San Ace Ac Fan Motor |
Model No |
109-311 |
Country of Origin |
Japan |
Type |
AC fan |
Name of Manufacturer/Packer/Importer |
Sanyo Denki Co., Ltd. |

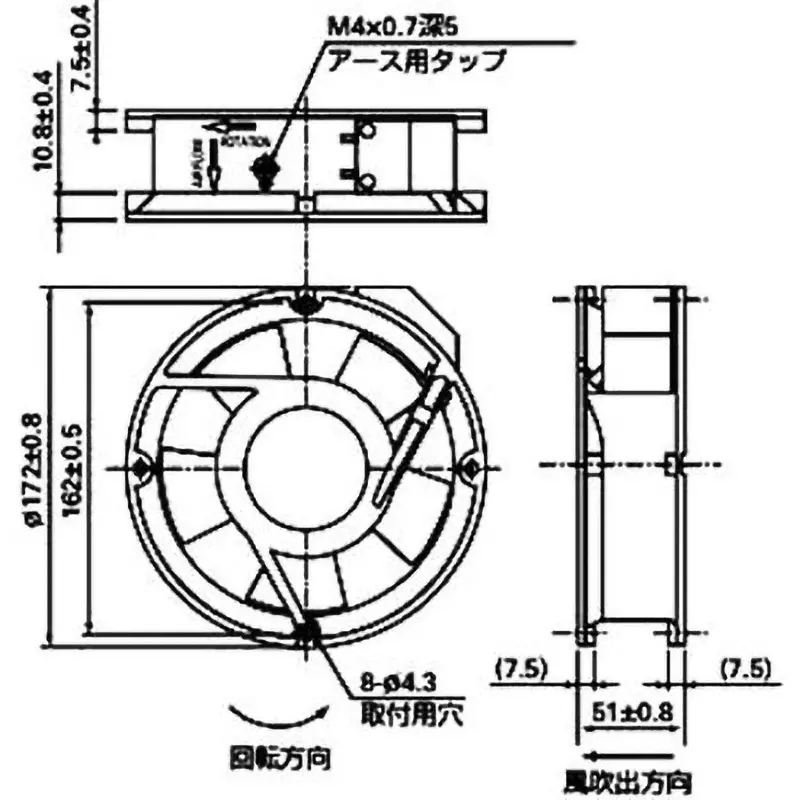

Size (mm) |
Φ172 |
Pack of |
1 Pcs |
Shape |
Round type |
Storage Temperature Range |
-30 to +70℃ (no condensation) |
Import Country |
Direct Import from Japan |
Input Voltage (V) |
AC100 |
Input (W) (50/60Hz) |
27/25 |
Monotaro ID |
47122765 |
Maximum Airflow (m³/min) |
5.3/6.4(50Hz/60Hz) |
Frequency (Hz) |
50/60 |
Mass (g) |
1000 |
Maximum Static Pressure (Pa) |
147/196(50Hz/60Hz) |
Operating Temperature Range |
-30 to +60°C |
Sound Pressure Level (dB) |
47/51(50Hz/60Hz) |
Material (Fan Blade) |
Resin (flame retardant grade UL94V-1) |
Thickness (mm) |
51 |
Current (A) (50/60Hz) |
0.33/0.25 |
Frame Material |
Aluminum |
Rated Rotation Speed (min⁻¹ [rpm]) |
2900/3500(50Hz/60Hz) |
Isolation Voltage (V/min) (AC50/60Hz) |
1500 (between input terminal and frame) |
Expected Life (hours) |
25000(60℃), 56000(40℃) |
