| Material | S55C |
| Type of Product | Precision Crimping Plier |
| Model No | PA-20 |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
S55C |
Type of Product |
Precision Crimping Plier |
Model No |
PA-20 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Engineer Co., Ltd. |
Type |
Precision crimping of small and medium contacts is possible. |
Monotaro ID |
10322663 |
Mass (g) |
137 |

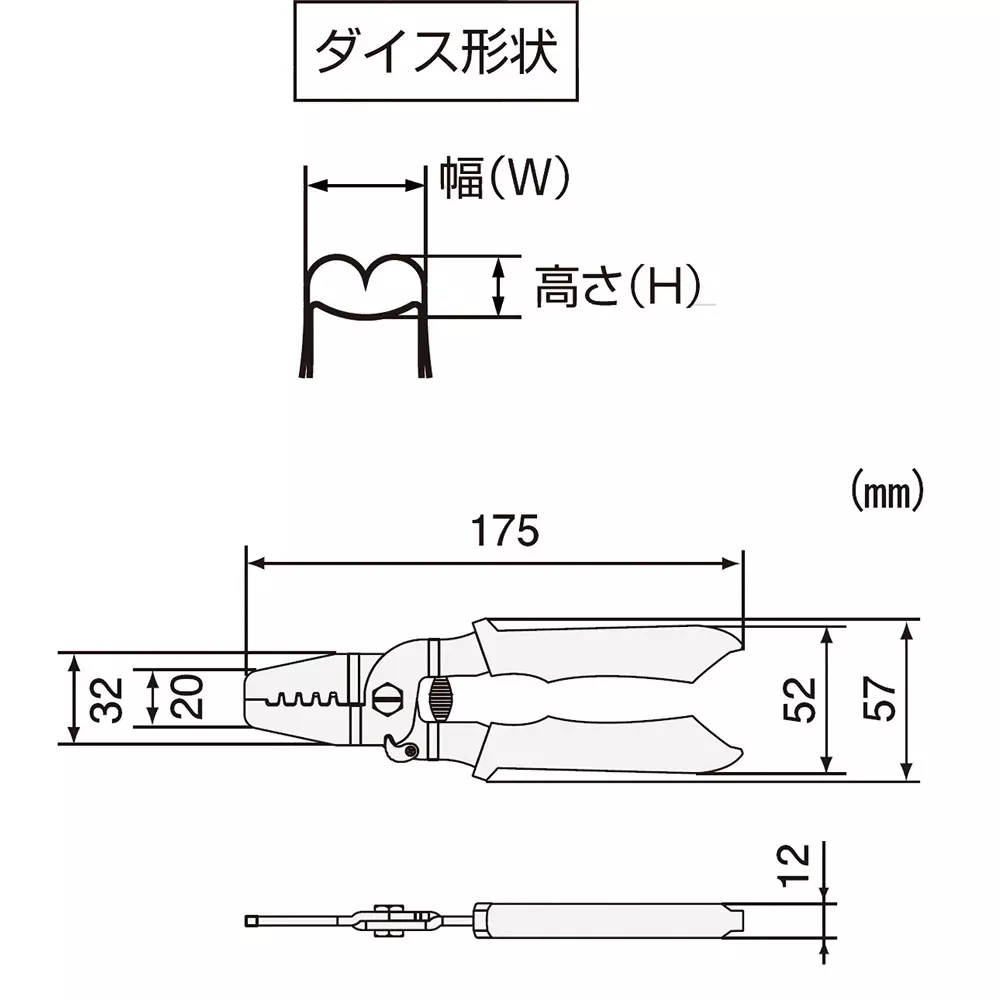

Dies Width (mm) |
1.6/1.9/2.0/2.3 |
Dies Thickness (mm) |
2.5t |
Dies Height (mm) |
0.7 to 1.0 |
Wire Crimping Range (AWG#) |
(Reference) 28 to 32/24 to 20/22 to 18/20 to 18 |
Compatible Cable |
(Reference) 0.08 to 0.33/0.21 to 0.52/0.33 to 0.82/0.52 to 0.82 mm² |
Overall Length (mm) |
175 |
RoHS Directive |
Correspondence |
Import Country |
Direct Import from Japan |
Trusco Part No. |
436-2586 |
Applicable Wire Diameter (Φmm) |
(Reference) 0.32 to 0.64/0.51 to 0.81/0.64 to 1.02/0.81 to 1.02 |
