Ships within 25 days
View
View
View
View
| Material | S55C |
| Type of Product | Precision Crimping Plier |
| Model No | PA-09 |
| Country of Origin | TAIWAN |
Material |
S55C |
Type of Product |
Precision Crimping Plier |
Model No |
PA-09 |
Country of Origin |
TAIWAN |
Name of Manufacturer/Packer/Importer |
Engineer Co., Ltd. |
Type |

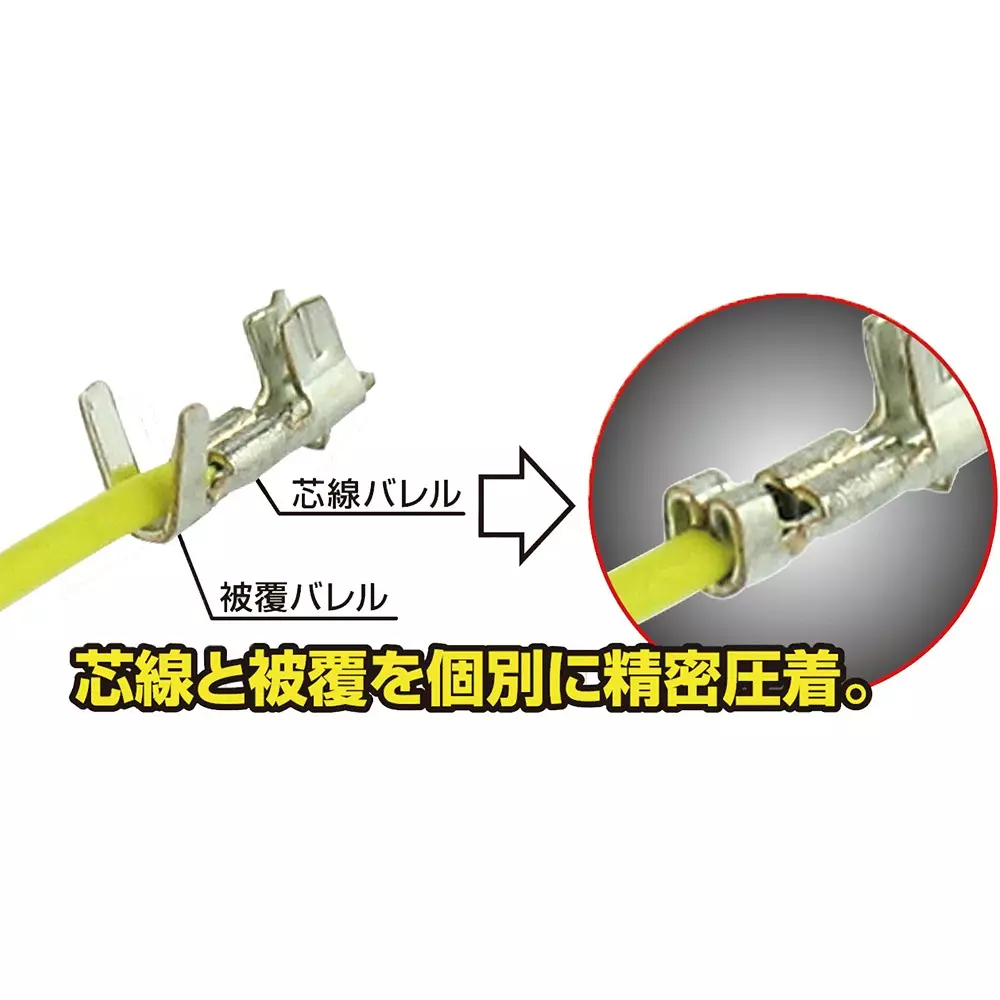

Precision crimping pliers that can crimp half-pitch contacts. |
Monotaro ID |
9153313 |
Mass (g) |
135 |

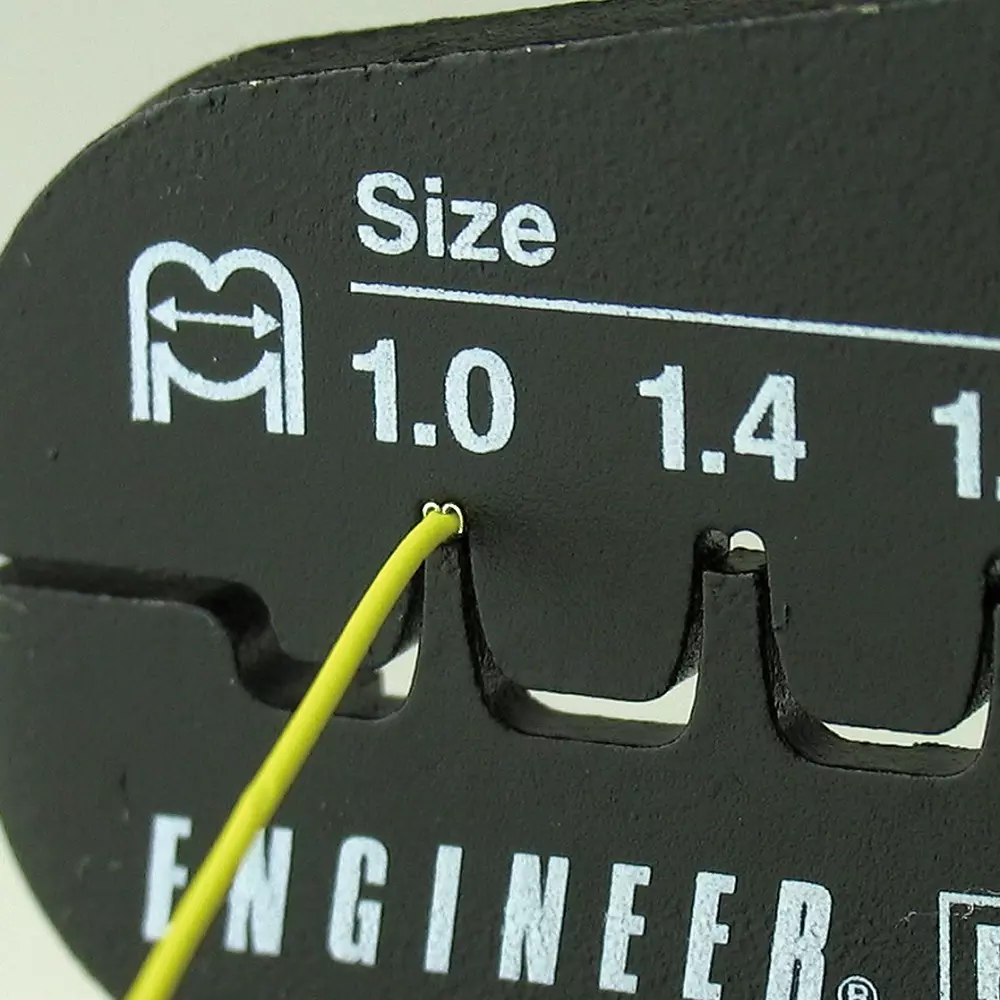

Dies Width (mm) |
1.0/1.4/1.6/1.9 |
Dies Thickness (mm) |
1.7t/2.0t |
Dies Height (mm) |
0.5 to 0.9 |
Wire Crimping Range (AWG#) |
(Reference) 32 to 28/28 to 24/24 to 22/24 to 20 |
Compatible Cable |
(Reference) 0.032 to 0.08/0.08 to 0.2/0.2 to 0.33/0.2 to 0.52 mm² |
Overall Length (mm) |
175 |
RoHS Directive |
Correspondence |
Import Country |
Direct Import from Japan |
Trusco Part No. |
327-8069 |
Applicable Wire Diameter (Φmm) |
(Reference) 0.20 to 0.32/032 to 0.51/0.51 to 0.64/0.51 to 0.81 |
