| Model No | 3300-225 |

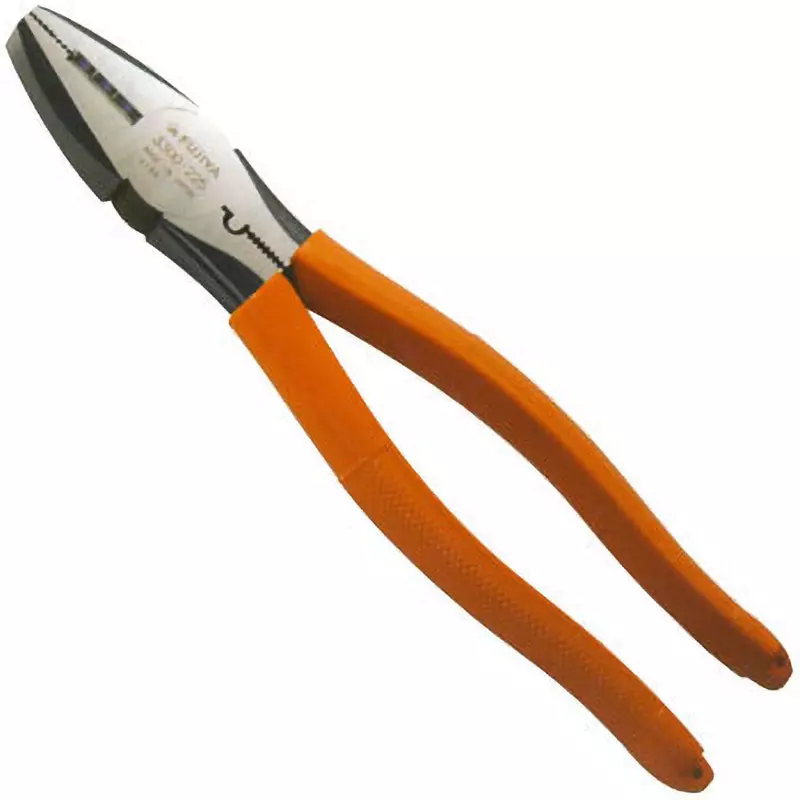

| Type of Product | Crimping Plier |
| Country of Origin | Japan |
| Mass (g) | 380 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
3300-225 |
Type of Product |
Crimping Plier |
Country of Origin |
Japan |
Mass (g) |
380 |
Dimension (mm) |
225 |
Monotaro ID |
10417145 |
Name of Manufacturer/Packer/Importer |
Fujiya Co., Ltd. |
Import Country |
Direct Import from Japan |
Trusco Part No. |
309-6149 |
Overall Length (mm) |
225 |
Specification Class |
With knurled gripper, safety cord compatible, crimping function, elastomer grip |
Terminal Connection Type |
1.25 to 5.5 mm² |

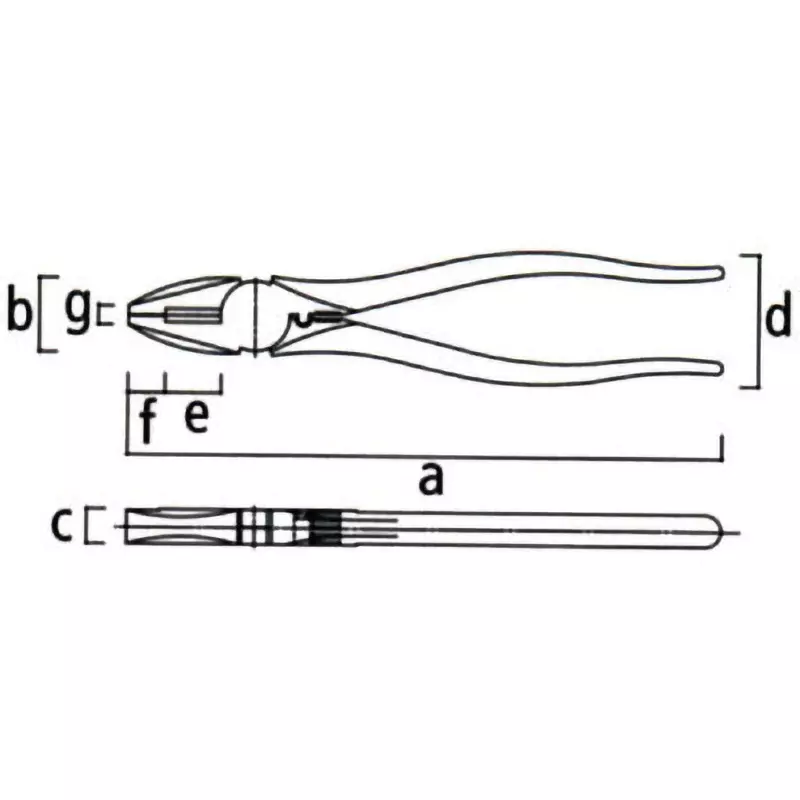

Dimension B (Φmm) |
28 |
Dimension C (Φmm) |
13.5 |
Dimension E (Φmm) |
21 |
Dimension A (Φmm) |
228 |
Dimension D (Φmm) |
54 |
Dimension F (Φmm) |
14 |
Cutting Capacity, Steel Wire (Φmm) |
3.6 |
Cutting Capacity, Copper Wire (Φmm) |
4 |
Blade Hardness |
HRC60 to 64 |
Dimension G |
7 mm |
Finish Type |
(Blade) Mirror finish |
Cutting Capacity (Fmm) VA / VVF Wire (3-core) |
2.6 |
