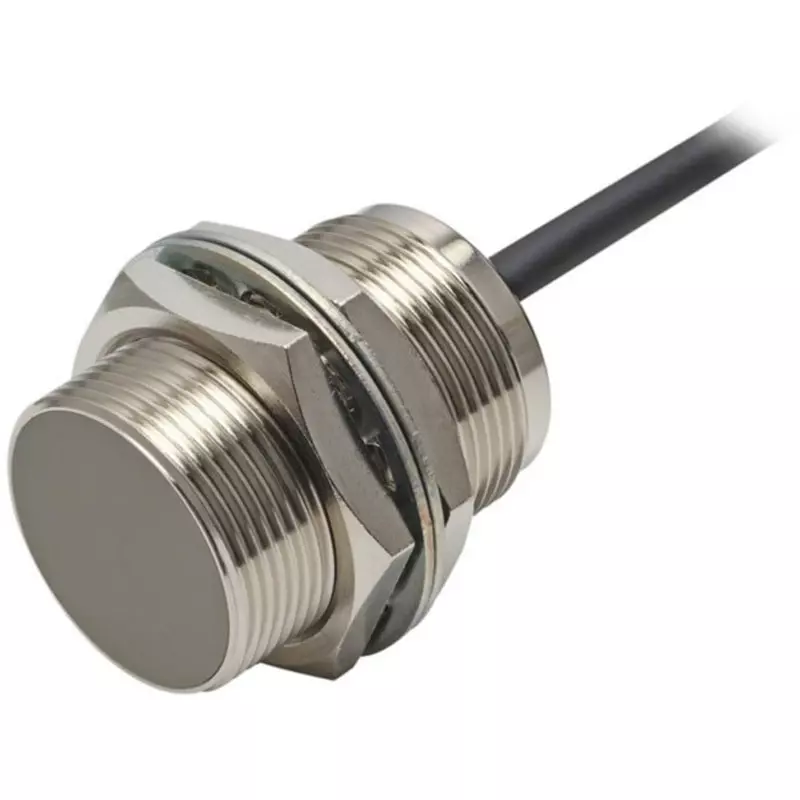

| Type of Product | Amplifier-Separated Proximity Sensor (Volume Type) |
| Model No | E2C-X10A-10M |

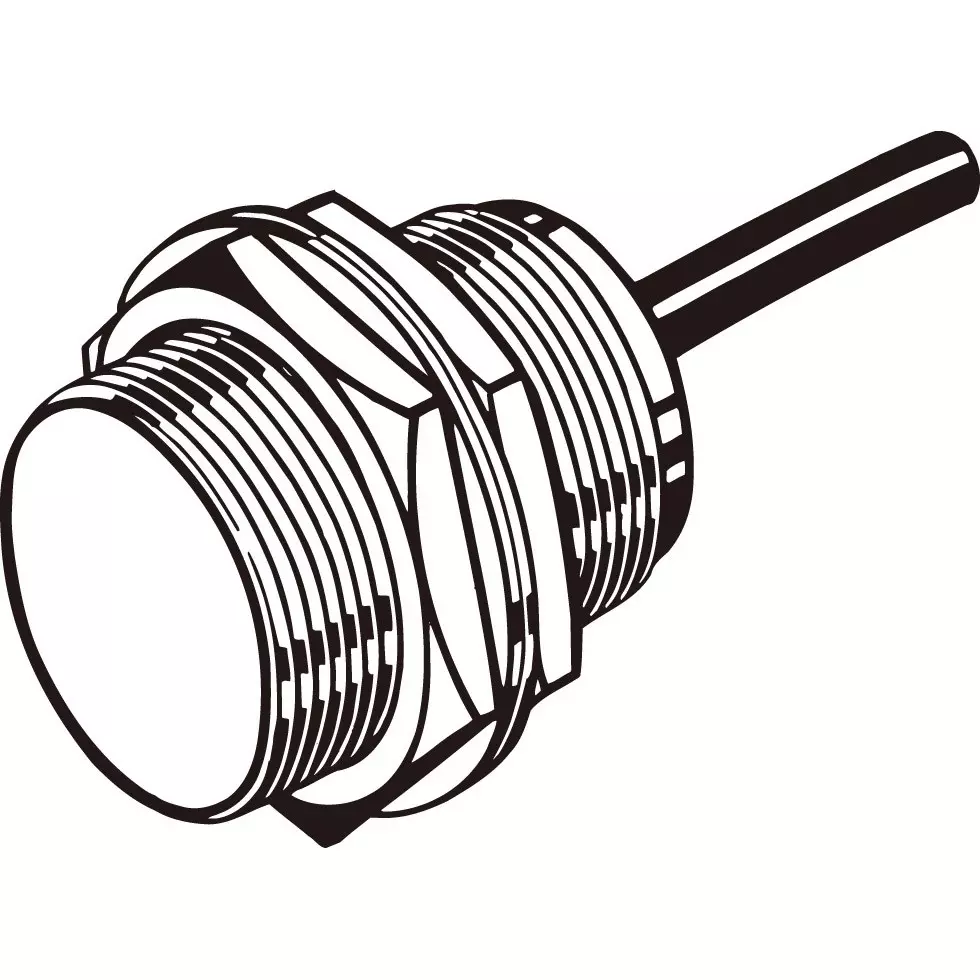

| Type | Cylindrical (threaded) sensor head, shielded type |
| Cable Length (m) | 10 m |
Type of Product |
Amplifier-Separated Proximity Sensor (Volume Type) |
Model No |
E2C-X10A-10M |
Type |
Cylindrical (threaded) sensor head, shielded type |
Cable Length (m) |
10 m |
Size |
M18 |
Case Material |
Brass |
Protection Class |
IEC standard IP67 |
Connection Type |
Cord-prep type, high-frequency coaxial cord |
Response Frequency (Hz) |
100 |
Monotaro ID |
46504263 |
Sensor Shape |
Screw Type |
Material (Detection Surface) |
ABS Resin |
Head Shape |
Screw |
Shield Shape |
Shield |
Standard Sensing Object (mm) |
Iron 30 x 30 x 1 |
Detection Distance (mm) |
18 (at 23°C) |
Mass (g) |
Approx. 270 (packed) |
Country of Origin |
Japan |
Cable Material |
(Code) Polyethylene PE |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
During operation and storage: -25 to 70 (but do not allow freezing or condensation) |
Influence of Temperature |
Within the temperature range of -25 to 70°C, at 23°C, detection distance is within ±15% |
Locator Material |
Possible: Magnetic metal (non-magnetic metal reduces the detection distance.) |
Name |
Sensor part |
