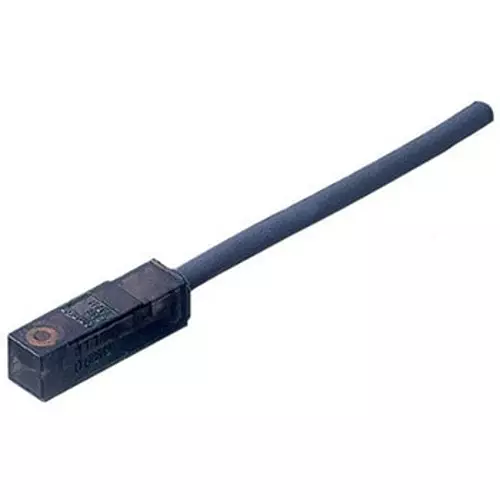

| Type of Product | Proximity Sensor Ultra-Compact Type (DC 2-Wire Type) |
| Model No | E2S-W11B-1M |
| Type | Built-in Amplifier |
| Cable Length (m) | 1 m |
Type of Product |
Proximity Sensor Ultra-Compact Type (DC 2-Wire Type) |
Model No |
E2S-W11B-1M |
Type |
Built-in Amplifier |
Cable Length (m) |
1 m |
Output |
DC 2-wire type |
Case Material |
Polyarylate |
Protection Class |
IEC standard IP67 |
Connection Type |
Cord drawer type |
Protection Circuit |
Load short-circuit protection, surge absorption |
Power Supply Voltage |
DC12 ~ 24 Ripple (pp) 10% or less |
Specifications |
Different frequency |
Monotaro ID |
46549772 |
Sensor Shape |
Rectangular |
Setting Distance (mm) |
0 to 1.2 |
Head Shape |
Corner |
Standard Sensing Object (mm) |
Iron 12x12x1 |
Detection Distance (mm) |
1.6±15% |
Ambient Humidity (% RH) |
Operating: 35 to 90, Storage: 35 to 95 (no condensation) |
Cord |
Standard |
Mass (g) |
Approx. 10 (packaged) |
Country of Origin |
Japan |
Detection Method |
Induction type |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Included Components |
Mounting bracket |
Insulation Resistance (MOhm) |
Between li Ve parts and case: 50 mohm or more (at 500 V DC) |
Operation Ambient Temperature (°C) |
During operation: -25 to 70<br> Storage: -40 to 85 (but do not freeze or condense) |
