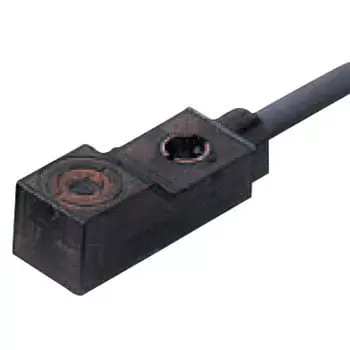

| Type of Product | Proximity Sensor Ultra-compact Type E2S (DC 2-Wire Type) |
| Type | Standard type |
| Cable Length (m) | 1 |
| Output | DC 2-wire type |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Proximity Sensor Ultra-compact Type E2S (DC 2-Wire Type) |
Type |
Standard type |
Cable Length (m) |
1 |
Output |
DC 2-wire type |
Case Material |
Polyarylate |
Hysteresis |
10% or less of detection distance |
Control Output |
Switching capacity: 3-50mA or less Residual voltage: 3V or less (load current 50mA and cord length 1m) |
Connection Type |
Cord drawer type |
Protection Circuit |
Power supply reverse connection protection, surge absorption |
Insulation Resistance |
50 or more (at 500 VDC) between live parts and case |
Power Supply Voltage |
DC12 ~ 24 Ripple (pp) 10% or less |
Response Frequency (Hz) |
1k or more |
Monotaro ID |
8586225 |
Sensor Shape |
Square |
Setting Distance (mm) |
0～1.9 |
Detection Target |
Magnetic metal (Non-magnetic metal decreases the detection distance.) |
Accessories Included |
Mounting bracket |
Influence by Temperature |
± 15% or less of detection distance at + 23 ° C within the temperature range of -25 to + 70 ° C |
Withstand voltage (V) |
AC1000 1min Between live parts and case |
Shield Shape |
Unshielded |
Vibration Resistance (Endurance) |
10 to 55 Hz, 1.5 mm double amplitude, 2 hours each in X, Y, and Z directions |
Standard Sensing Object (mm) |
Iron 15 × 15 × 1 |
Influence of Voltage |
± 2.5% or less of sensing distance at rated power voltage within the range of rated power voltage ± 10% |
Operating Voltage Range (V) |
DC10～30 |
Ambient Temperature (℃) |
Operating: -25 to +70 Storage: -40 to +85 (with no icing or condensation) |
Detection Distance (mm) |
2.5±15% |
Current Consumption (mA) |
- |
Leakage Current (mA) |
0.8 or less |
Ambient Humidity (% RH) |
Operating: 35 to 90, Storage: 35 to 95 (no condensation) |
Indicator Lamp |
Operation indicator (red), setting indicator (green) |
shock Resistance (m per s2) |
500 X, Y, Z directions 3 times |
Country of Origin |
CHINA |
Detection surface |
Upper surface |
Import Country |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
