Ships within 19 days
Model No
View
View
View
View

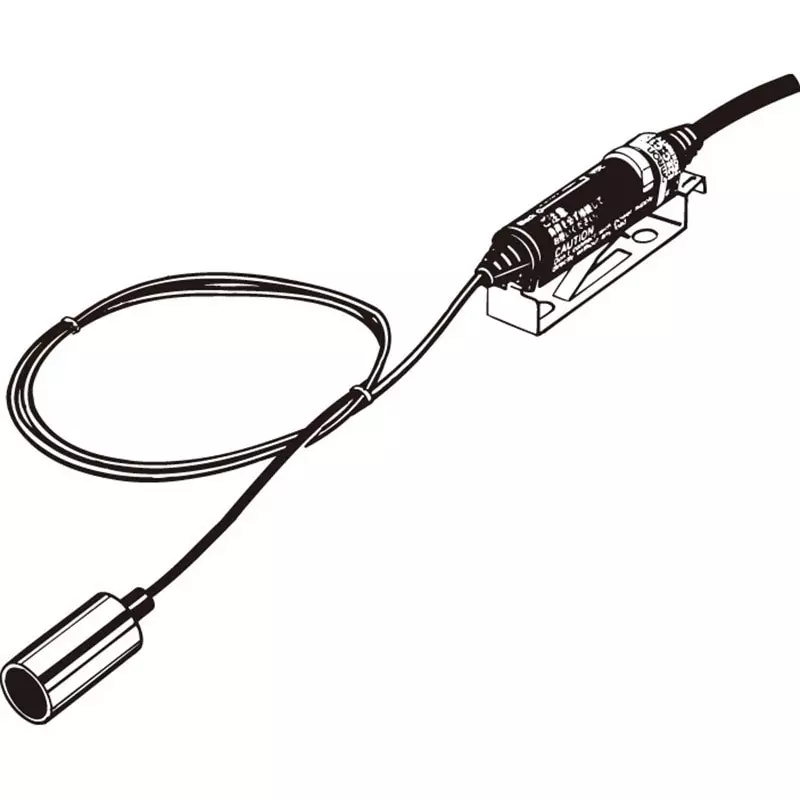

| Type of Product | Amplifier Relay Proximity Sensor |
| Model No | E2EC-C3D25-2M |
| Type | Amplifier relay type |
| Cable Length (m) | 2 |
Type of Product |
Amplifier Relay Proximity Sensor |
Model No |
E2EC-C3D25-2M |
Type |
Amplifier relay type |
Cable Length (m) |
2 |
Case Material |
Brass |
Protection Class |
IEC standard IP67 |
Connection Type |
Cord drawer type |
Protection Circuit |
Load short-circuit protection, surge absorption |
Power Supply Voltage |
DC12-24 Ripple (pp) 10% or less |
Monotaro ID |
46432872 |
Setting Distance (mm) |
0 to 2.1 |
Head Shape |
Circle |
Shield Shape |
Shield |
Standard Sensing Object (mm) |
Iron 8 x 8 x 1 |
Detection Distance (mm) |
3±10% |
Ambient Humidity (% RH) |
Operating and storage: 35 to 95 each (no condensation) |
Mass (g) |
Approx. 45 (packed) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Included Components |
Amplifier mounting bracket, instruction manual |
Oscillation Frequency |
(Classification) Different Frequency |
Insulation Resistance (MOhm) |
Between live parts and case: 50 or more (at 500 V DC) |
Operation Ambient Temperature (°C) |
During use and storage: -25 to 70 (but do not allow freezing or condensation) |
