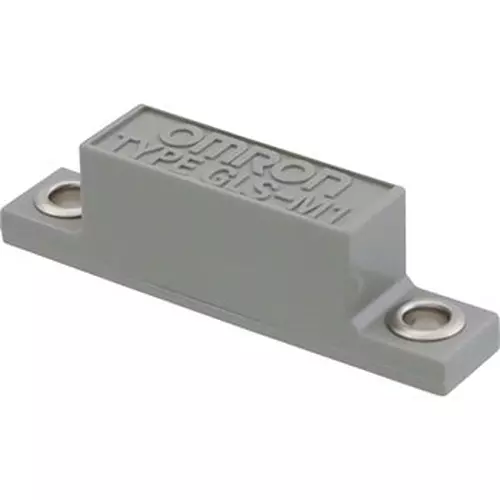

| Type of Product | Magnetic Proximity Sensor |
| Model No | GLS-M1 |
| Type | Magnet part |
| Protection Class | IEC standard IP40 |
Type of Product |
Magnetic Proximity Sensor |
Model No |
GLS-M1 |
Type |
Magnet part |
Protection Class |
IEC standard IP40 |
Connection Type |
Terminal block type |
Response Frequency (Hz) |
20 or less |
Monotaro ID |
39071435 |
Sensor Shape |
Square |
Withstand voltage (V) |
AC1000 1min between each terminal and case, contact: DC250 1min, leakage current 1mA or less |
Ambient Temperature (℃) |
During operation and storage: -20 to 60 (but do not allow freezing or condensation) |
Detection Distance (mm) |
15 |
Ambient Humidity (% RH) |
Operation and storage: 35 ~ 85 each (with no condensation) |
Country of Origin |
Japan |
Contact Capacity |
Maximum operating voltage: DC100V<br> Maximum current: DC0.1A<br> Maximum contact capacity: 10W (including opening and closing) |
Service Life |
50,000,000 times or more (at 24VDC 0.1A resistive load) |
Circuits |
(contact) 1a |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Vibration Resistance (Destruction) |
10~55 Hz, 1.5 mm double amplitude, 2 hours each in X, Y, and Z directions |
Shock Resistance (m/s²) |
300 X, Y, Z directions 3 times |
Operation Ambient Temperature (°C) |
During operation and storage: -20 to 60 (but do not allow freezing or condensation) |
Withstand voltage (V / min) |
AC1000 Between each terminal and case, Contact: DC250 Leakage current 1mA or less |
Contact Resistance (ohm) |
150 or less |
Switch Part Material |
ABS |
