| Rated Voltage | 250 V |
| Type of Product | DC Relay Module |
| Model No | UL24D08-COB-V1 |
| Country of Origin | India |
Rated Voltage |
250 V |
Type of Product |
DC Relay Module |
Model No |
UL24D08-COB-V1 |
Country of Origin |
India |
Mounting Type |
Din Rail Mountable |
Name of Manufacturer/Packer/Importer |
Explore Technologies |
Standard |
EN 60947-5-1/ IEC 947-5-1 |
Contact Current Rating |
12 A at 24 V DC |
Cross section |
2.5 sq. mm |
Contact Type |
1 Change Over |
Ambient Temperature |
0°C to +60°C, Relay Socket: -45 to +120˚C |
Stripping Length |
8 mm |
Type |
with 1 C/O Contact |
Insulation Material |
PA/I |
Rated Current |
25 mA |
Operating Voltage |
24 V DC |
Nominal Current |
24 A |
Loop |
Positive/Negative: User Selectable using Jumpers |
Tightening Torque |
0.6 Nm Max. |
Mechanical Operations |
18000 /hr |
Maximum Switching Voltage |
440 V AC, 300 V DC |
LED Status |
Input: Green |
Relative Humidity |
Max. 90% (Non-condensing) |
Approval |
CE |
Electrical |
Operation: 1800 / hr |
Insulation Resistance |
1000 MΩ at 500 V DC |
Terminal |
UL, CSA Standard & CE standard |
Rated |
5 A AC/DC, 250 V rms |
Rated Surge Voltage |
4 kV |
Size |
134x90 mm |
Contact Configuration |
SPDT, Potential Free |
Dielectric Strength |
Between Contacts: 1000 V AC, 50/60 Hz, 1 min., Relay Socket: 2000 V AC rms for 1 min. |

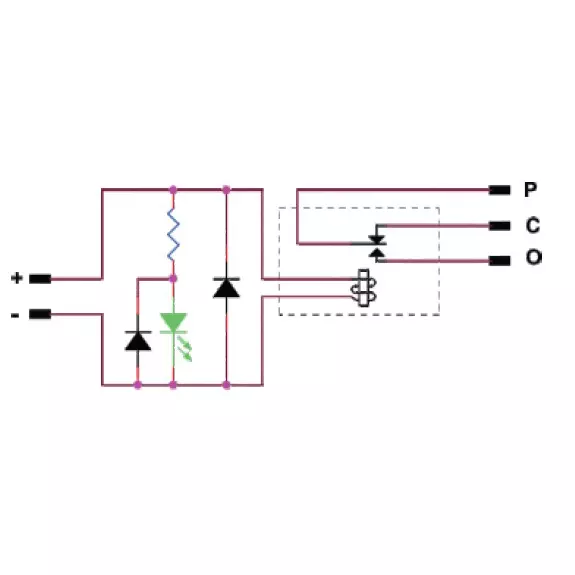

Back E.M.F |
Free-wheeling Diode |
Terminal Type |
Screw Terminal |
